PURE
Thanks to a dedicated accessory bracket, PURE can also be configured in modular compositions with customized geometries, adapting flexibly to the most complex design requirements.
Technical features
Optics
Body
Legal references
Certifications
On request
Colors
- Integrated driver
- PG diffuser in impact-resistant satin acrylic with UGR<22
- MP technology for controlled glare with UGR<19
- Shade UGR<16
- 3000K / 4000K
- CRI >90
- Eye safety: RG0 / RG1
- MacAdam 3
- L90/B10 >50.000h
- IP40
- Direct emission
- Direct/indirect emission
- UGR <16; <19; <22
Epoxy powder-coated aluminium.
The fixtures comply with safety standards EN 60598-1 and UNI EN 12464-1 (lighting of work environments). The DALI product complies with CAM Edilizia DM 23 June 2022 No. 256, lighting sector.
- CE compliance
- Energy class C
- 5-year warranty
- DALI – code D
- Bluetooth – code BT
- Emergency 1 h – code EM
- Emergency 3 h – code EM3H*
- 2700K – code K27*
Check availability
-
White RAL 9003 wrinkled – code W
-
Black RAL 9005 wrinkled – code BK
-
Other colours – on request
- Integrated driver
- PG diffuser in impact-resistant satin acrylic with UGR<22
- MP technology for controlled glare with UGR<19
- Shade UGR<16
- 3000K / 4000K
- CRI >90
- Eye safety: RG0 / RG1
- MacAdam 3
- L90/B10 >50.000h
- IP40
- Direct emission
- Direct/indirect emission
- UGR <16; <19; <22
Epoxy powder-coated aluminium.
The fixtures comply with safety standards EN 60598-1 and UNI EN 12464-1 (lighting of work environments). The DALI product complies with CAM Edilizia DM 23 June 2022 No. 256, lighting sector.
- CE compliance
- Energy class C
- 5-year warranty
- DALI – code D
- Bluetooth – code BT
- Emergency 1 h – code EM
- Emergency 3 h – code EM3H*
- 2700K – code K27*
Check availability
PURE

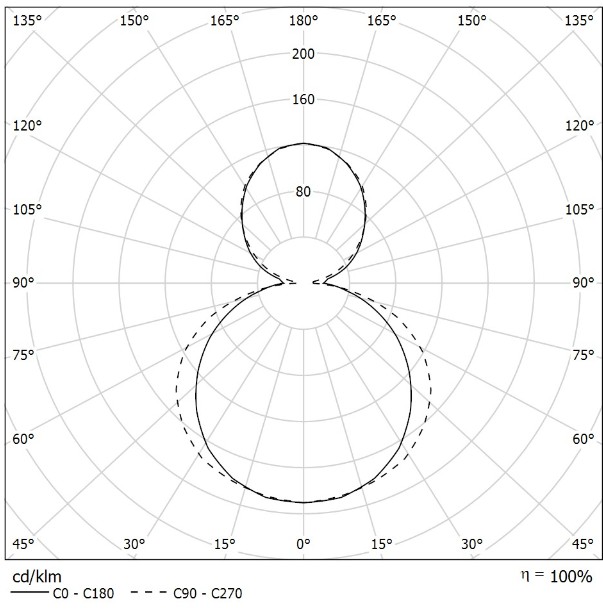

PURE PG DOUBLE EMISSION
Direct/indirect emission with impact-resistant satin acrylic PG diffuser UGR<22.
Datasheets
4000K
Datasheets
3000K
PURE PG COMBO
Direct emission with impact-resistant satin acrylic PG diffuser UGR<22.
Fly Eyes module (UGR<16) with 9 integrated WQ wide flood square microcells.
Datasheets
4000K
Datasheets
3000K

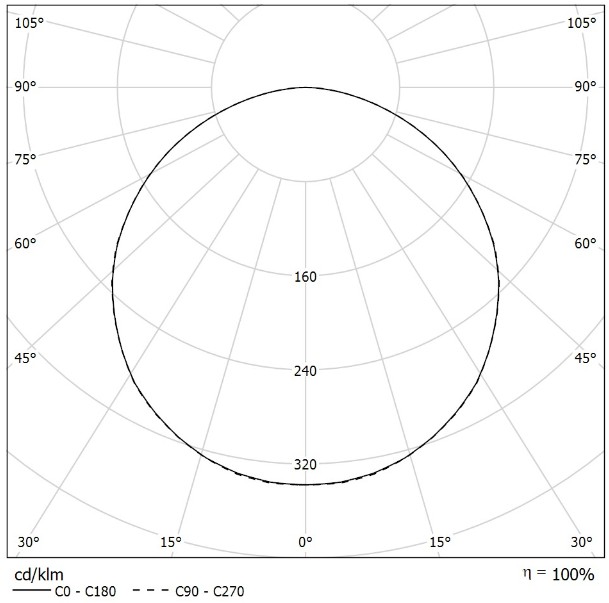

PURE PG
Direct emission with impact-resistant satin acrylic PG diffuser UGR<22.
Datasheets
4000K
Datasheets
3000K
PURE PG Long
Direct emission with impact-resistant satin acrylic PG diffuser UGR<22.
Datasheets
4000K
Datasheets
3000K
PURE PG DOUBLE EMISSION Long
Direct/indirect emission with impact-resistant satin acrylic PG diffuser UGR<22.
Datasheets
4000K
Datasheets
3000K
PURE PG COMBO Long
Emissione diretta con diffusore con tecnologia PG acrilico satinato resistente agli urti UGR<22. Modulo Fly Eyes (UGR<16) con 7 microcelle WQ wide flood square integrato.
Datasheets
4000K
Datasheets
3000K

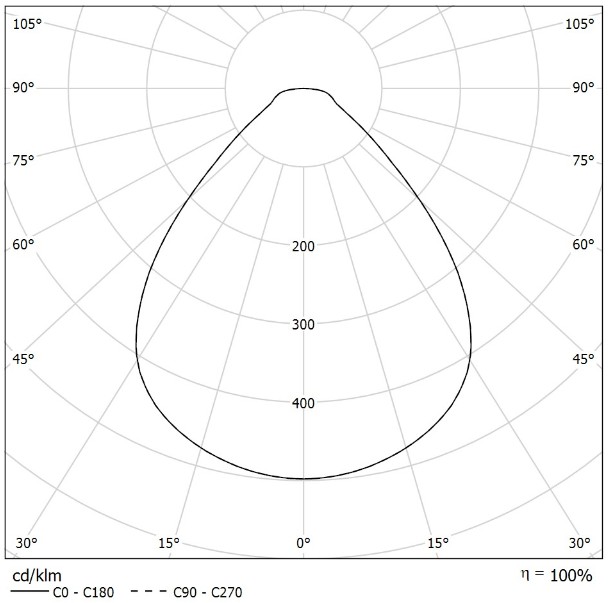

PURE MP
Direct emission with microprismatic diffuser UGR<19.
Datasheets
4000K
Datasheets
3000K

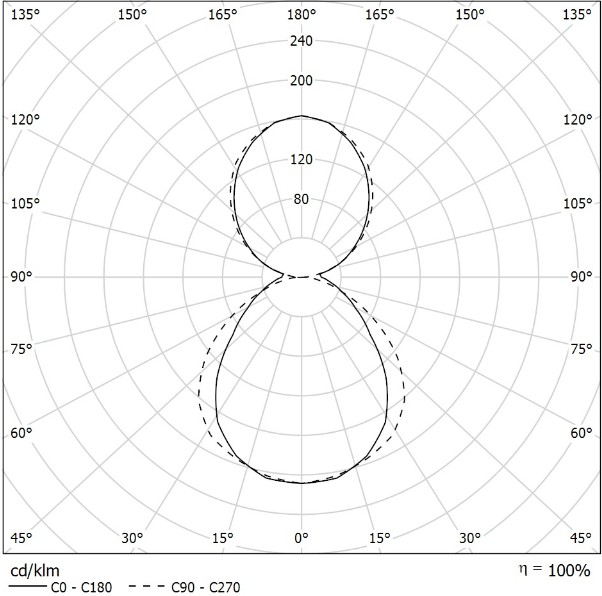

PURE MP DOUBLE EMISSION
Emissione diretta/indiretta con diffusore microprismatico UGR<19.
.
Datasheets
4000K
Datasheets
3000K
PURE MP COMBO
Direct emission with microprismatic diffuser UGR<19.
Fly Eyes module (UGR<16) with 9 integrated WQ wide flood square microcells.
Datasheets
4000K
Datasheets
3000K
PURE MP Long
Direct emission with microprismatic diffuser UGR<19.
Datasheets
4000K
Datasheets
3000K
PURE MP DOUBLE EMISSION Long
Emissione diretta/indiretta con diffusore microprismatico UGR<19.
Datasheets
4000K
Datasheets
3000K
PURE MP COMBO Long
Direct emission with microprismatic diffuser UGR<19.
Fly Eyes module (UGR<16) with 7 integrated WQ wide flood square microcells.
Datasheets
4000K
Datasheets
3000K
PURE ACOUSTIC DOUBLE EMISSION
Black sound-absorbing panel. Other colours available on request.
Integrated Fly Eyes module (UGR<16) with 9 WQ wide flood square microcells.
Datasheets
4000K
Datasheets
3000K
PURE PG Mini
Direct emission with PG diffuser in impact-resistant satin acrylic, UGR<22.
Datasheets
4000K
Datasheets
3000K
PURE PG COMBO Mini
Direct emission with PG diffuser in impact-resistant satin acrylic, UGR<22. Integrated Fly Eyes module (UGR<16) with 4 WQ wide flood square microcells.
Datasheets
4000K
Datasheets
3000K
