OPERA
OPERA is a system of extruded aluminium profiles designed for recessed integration into plasterboard ceilings and walls, creating discreet coves where light becomes part of the architecture.
The collection allows for direct and indirect lighting configurations, with continuous lines of light fully integrated into the surface. The Direct profile can house linear lighting or DK microcell modules, or be closed with a finishing accessory for a clean, uninterrupted look.
Combined with the Indirect profile, OPERA enables indirect lighting and the integration of adjustable spotlights. A satin methacrylate diffuser ensures uniform light distribution and visual comfort with UGR <22, while OPERA Spot, with its double-jointed arm, provides precise and flexible aiming along the cove.
The collection allows for direct and indirect lighting configurations, with continuous lines of light fully integrated into the surface. The Direct profile can house linear lighting or DK microcell modules, or be closed with a finishing accessory for a clean, uninterrupted look.
Combined with the Indirect profile, OPERA enables indirect lighting and the integration of adjustable spotlights. A satin methacrylate diffuser ensures uniform light distribution and visual comfort with UGR <22, while OPERA Spot, with its double-jointed arm, provides precise and flexible aiming along the cove.
TECHNICAL FEATURES
OPTICS
BODY
LEGAL REFERENCES
CERTIFICATIONS
ON REQUEST
Colors
- Remote driver
- 3000K/4000K
- CRI>90
- Eye safety: RG0/RG1
- MacAdam 3
- L90/B10>50.000h
- IP40/IP20
- Direct emission
- Direct/indirect emission
- DK technology for UGR controlled with UGR<19
- UGR <19; <22
Anodised aluminium.
The luminaires comply with the safety standards EN 60598-1 and UNI EN 12464-1 for workplace lighting.
- CE compliant
- RETILAP compliant
- Energy class C
- 5-year warranty
- DALI – code D
- Bluetooth – code BT
- 1 h emergency – code EM
- 1 h emergency DALI – code DEM
- 3 h emergency – code EM3H
- 2700K – code K27
- 5000K – code K5
-
White RAL 9003 wrinkled - code W
-
Black RAL 9005 wrinkled - code BK
-
Other colours – on request
TECHNICAL FEATURES
- Remote driver
- 3000K/4000K
- CRI>90
- Eye safety: RG0/RG1
- MacAdam 3
- L90/B10>50.000h
- IP40/IP20
OPTICS
- Direct emission
- Direct/indirect emission
- DK technology for UGR controlled with UGR<19
- UGR <19; <22
BODY
Anodised aluminium.
LEGAL REFERENCES
The luminaires comply with the safety standards EN 60598-1 and UNI EN 12464-1 for workplace lighting.
CERTIFICATIONS
- CE compliant
- RETILAP compliant
- Energy class C
- 5-year warranty
ON REQUEST
- DALI – code D
- Bluetooth – code BT
- 1 h emergency – code EM
- 1 h emergency DALI – code DEM
- 3 h emergency – code EM3H
- 2700K – code K27
- 5000K – code K5
OPERA
versions

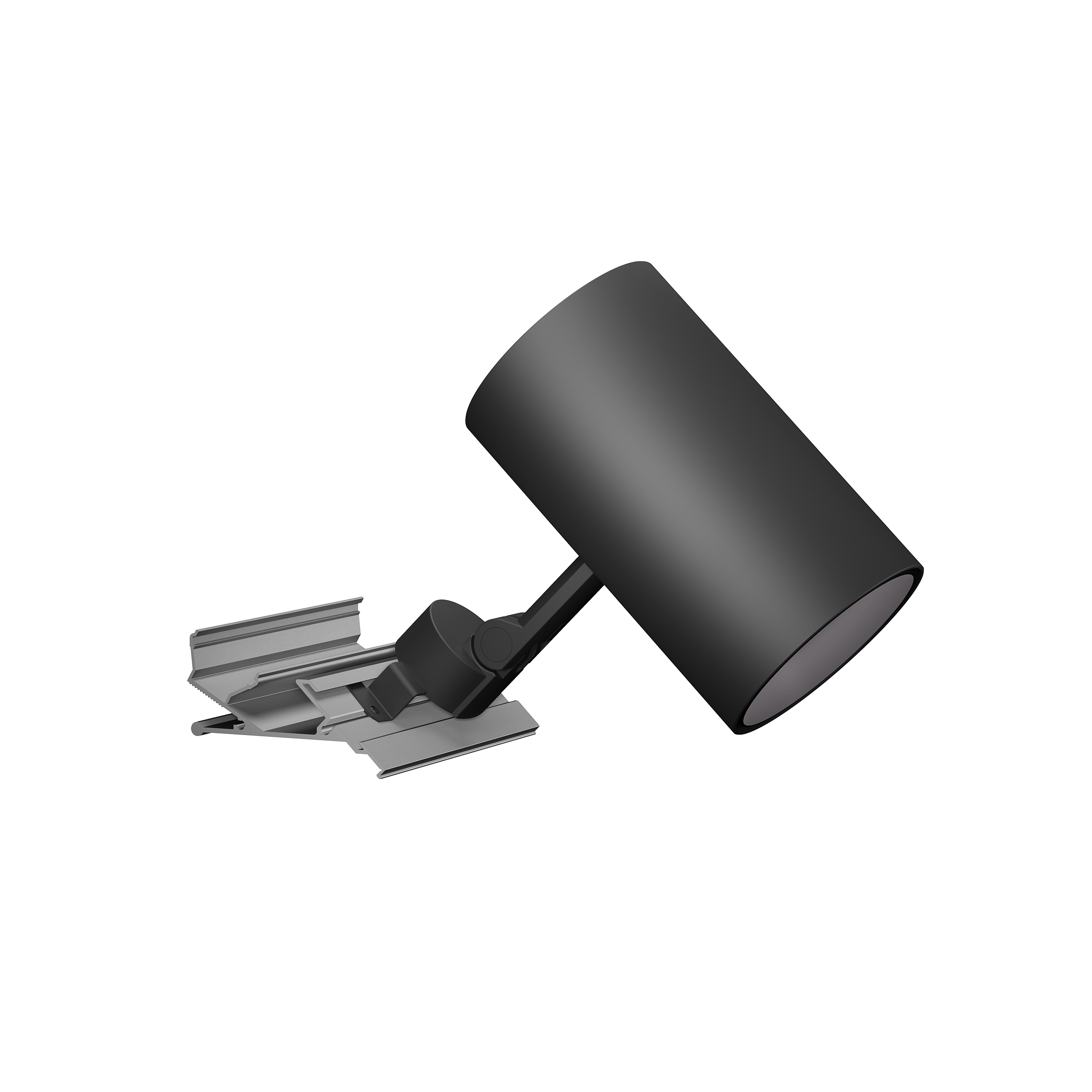

OPERA SPOT
OPERA

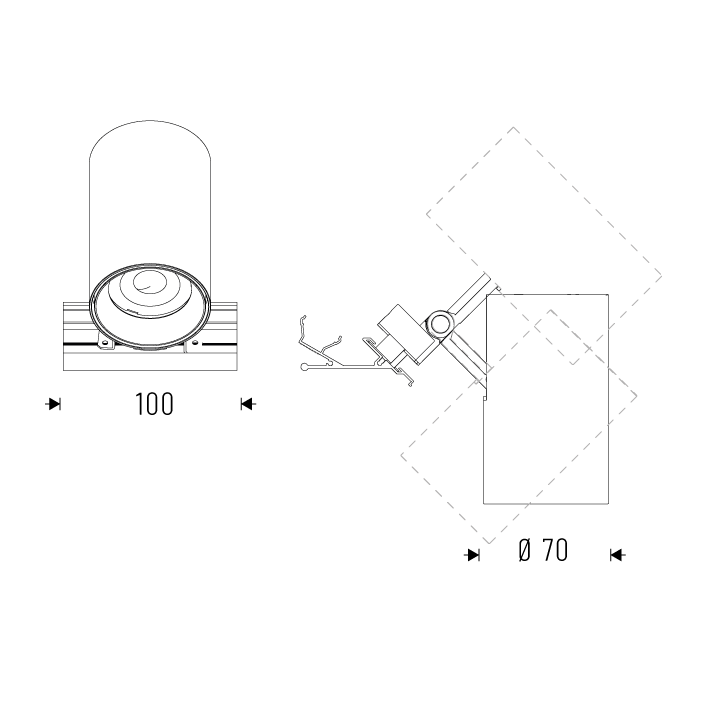

TECHNICAL DRAWING
Optics
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
94PC14K415
14W 15° 4000K
2492lm
Ø70mm
Standard
Dimmable
94PC14K424
14W 24° 4000K
2492lm
Ø70mm
Standard
Dimmable
94PC14K436
14W 36° 4000K
2492lm
Ø70mm
Standard
Dimmable
94PC14K450
14W 50° 4000K
2492lm
Ø70mm
Standard
Dimmable
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
94PC14K315
14W 15° 3000K
2329lm
Ø70mm
Standard
Dimmable
94PC14K324
14W 24° 3000K
2329lm
Ø70mm
Standard
Dimmable
94PC14K336
14W 36° 3000K
2329lm
Ø70mm
Standard
Dimmable
94PC14K350
14W 50° 3000K
2329lm
Ø70mm
Standard
Dimmable

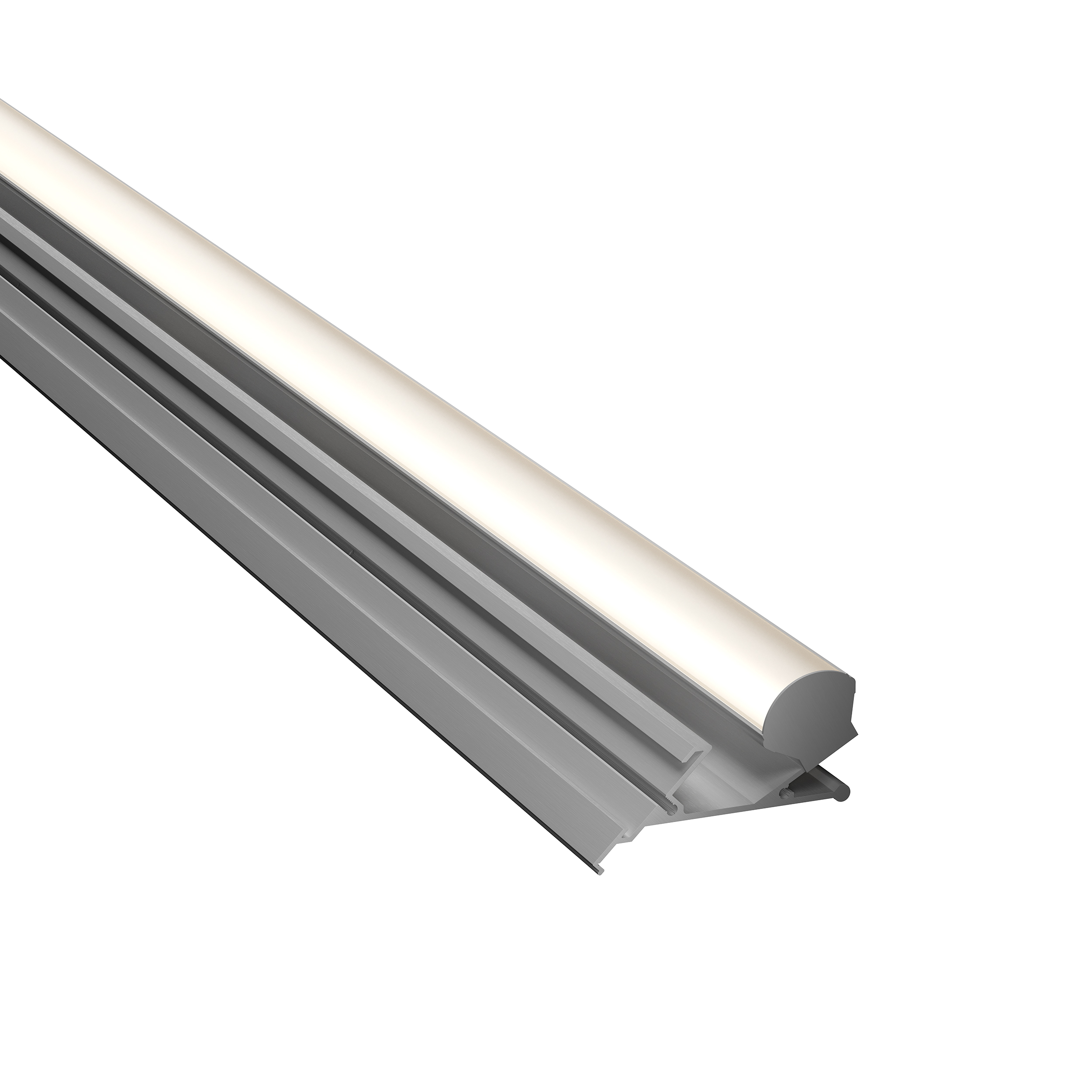

OPERA INDIRECT PROFILE
OPERA
TECHNICAL DRAWING

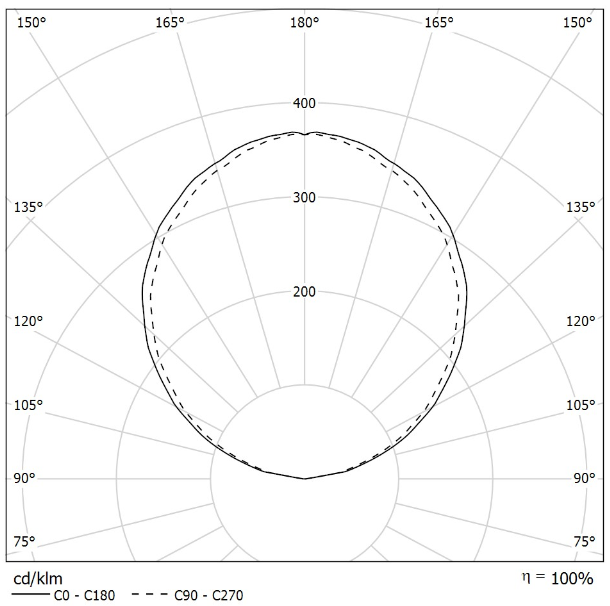

Optics
Aluminium profile with satin methacrylate diffuser for uniform emission, UGR <22. Luminaire complete with 20W/m strip and driver.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
94IN10K4
10W 4000K
1060lm
500mm
Standard
Dimmable
94IN20K4
20W 4000K
2120lm
1000mm
Standard
Dimmable
94IN40K4
40W 4000K
4240lm
2000mm
Standard
Dimmable
94IN60K4
60W 4000K
6360lm
3000mm
Standard
Dimmable
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
94IN10K3
10W 3000K
984lm
500mm
Standard
Dimmable
94IN20K3
20W 3000K
1968lm
1000mm
Standard
Dimmable
94IN40K3
40W 3000K
3936lm
2000mm
Standard
Dimmable
94IN60K3
60W 3000K
5904lm
3000mm
Standard
Dimmable
Datasheets
2700K
code
flux
size
wiring
datasheet
specification items
94IN10K27
10W 2700K
914lm
500mm
Standard
Dimmable
94IN20K27
20W 2700K
1828lm
1000mm
Standard
Dimmable
94IN40K27
40W 2700K
3656lm
2000mm
Standard
Dimmable
94IN60K27
60W 2700K
5484lm
3000mm
Standard
Dimmable

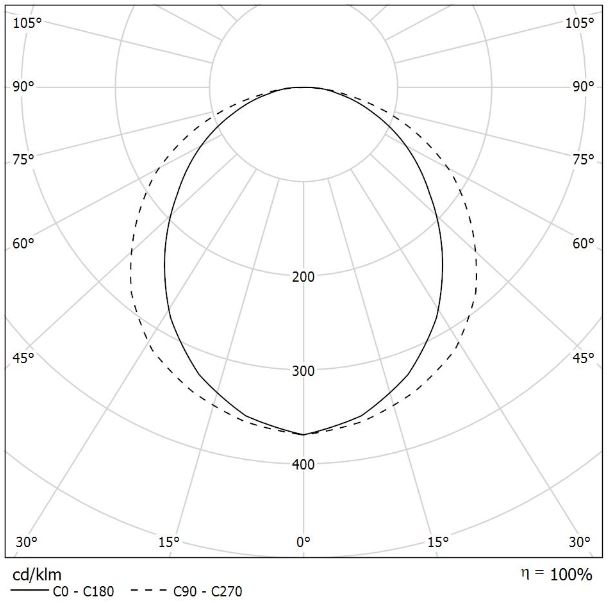

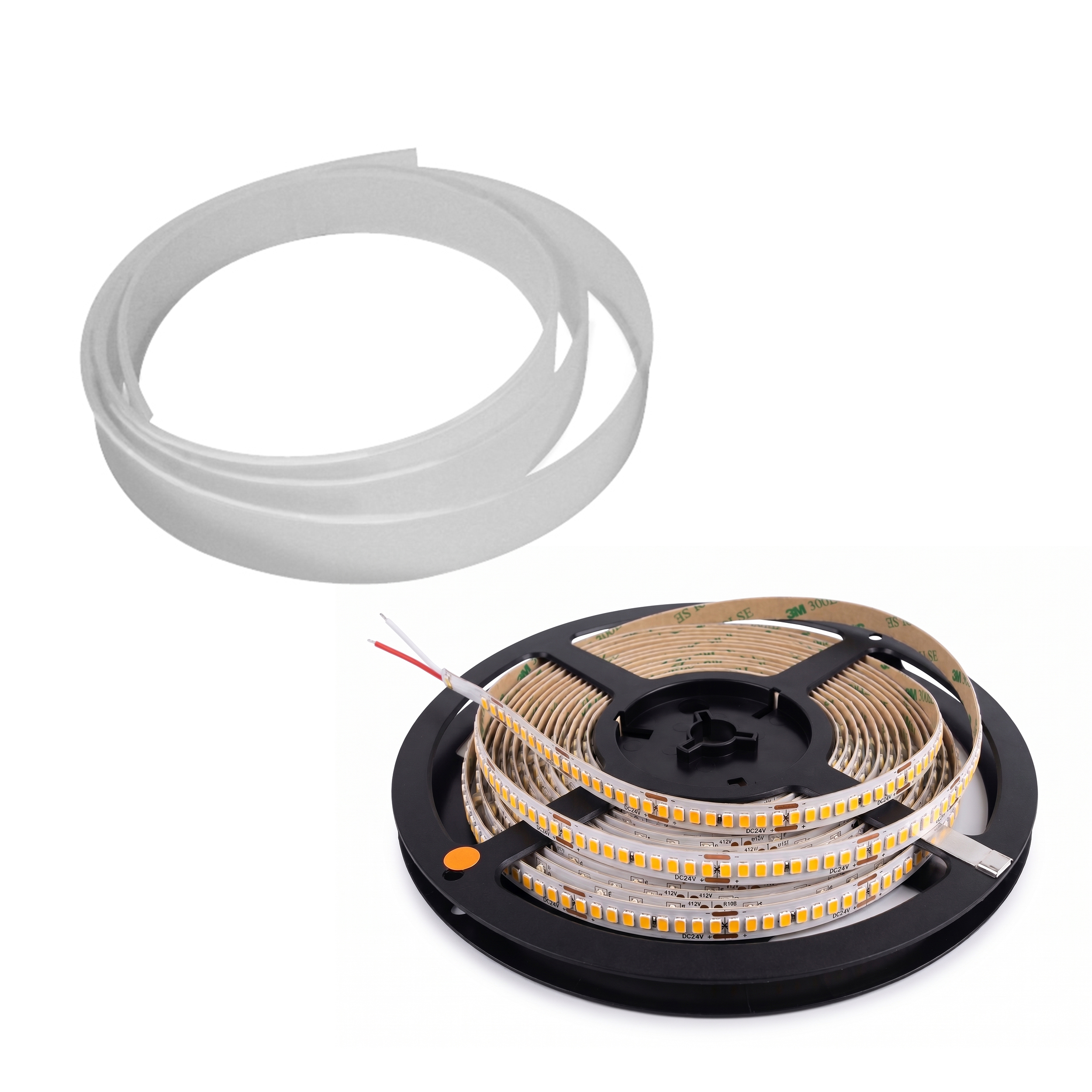

OPERA PG
OPERA

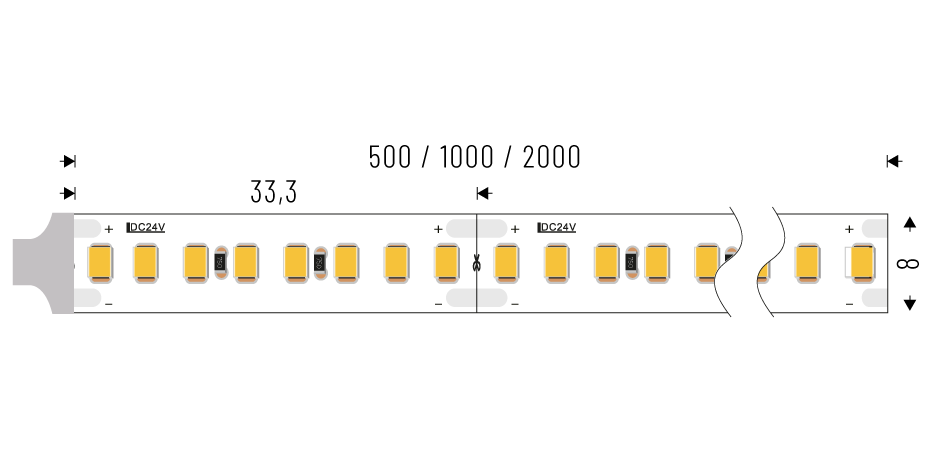

TECHNICAL DRAWING
v
Aluminium profile with satin methacrylate diffuser for uniform emission, UGR <22. Luminaire complete with 20W/m strip and driver.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
94PG10K4
10W 4000K
1080lm
500mm
Standard
Dimmable
94PG20K4
20W 4000K
2160lm
1000mm
Standard
Dimmable
94PG30K4
30W 4000K
3240lm
2000mm
Standard
Dimmable
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
94PG10K3
10W 3000K
1004lm
500mm
Standard
Dimmable
94PG20K3
20W 3000K
2009lm
1000mm
Standard
Dimmable
94PG30K3
30W 3000K
3012lm
2000mm
Standard
Dimmable
Datasheets
2700K
code
flux
size
wiring
datasheet
specification items
94PG10K27
10W 2700K
934lm
500mm
Standard
Dimmable
94PG20K27
20W 2700K
1868lm
1000mm
Standard
Dimmable
94PG30K27
30W 2700K
2802lm
2000mm
Standard
Dimmable

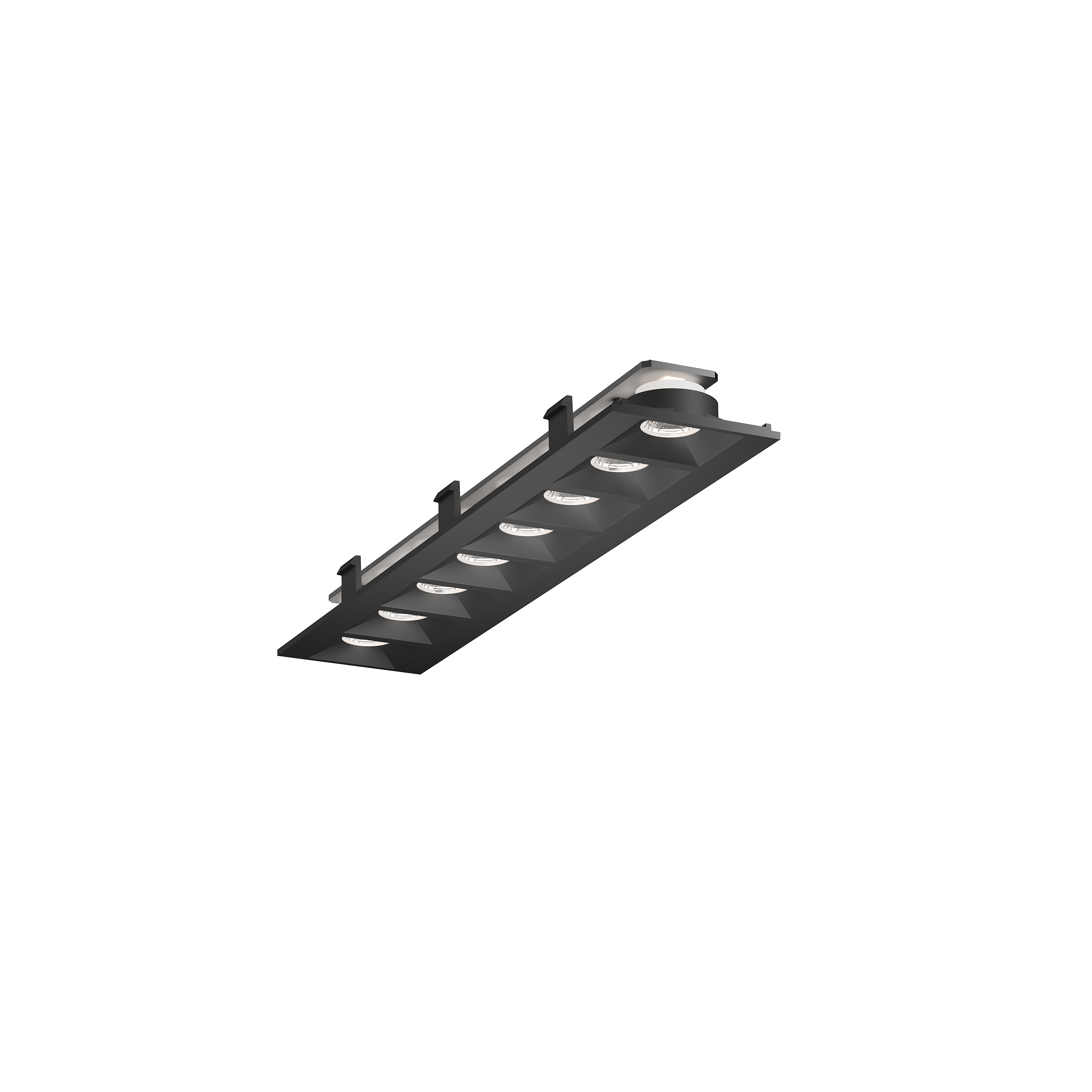

OPERA DK
OPERA
TECHNICAL DRAWING

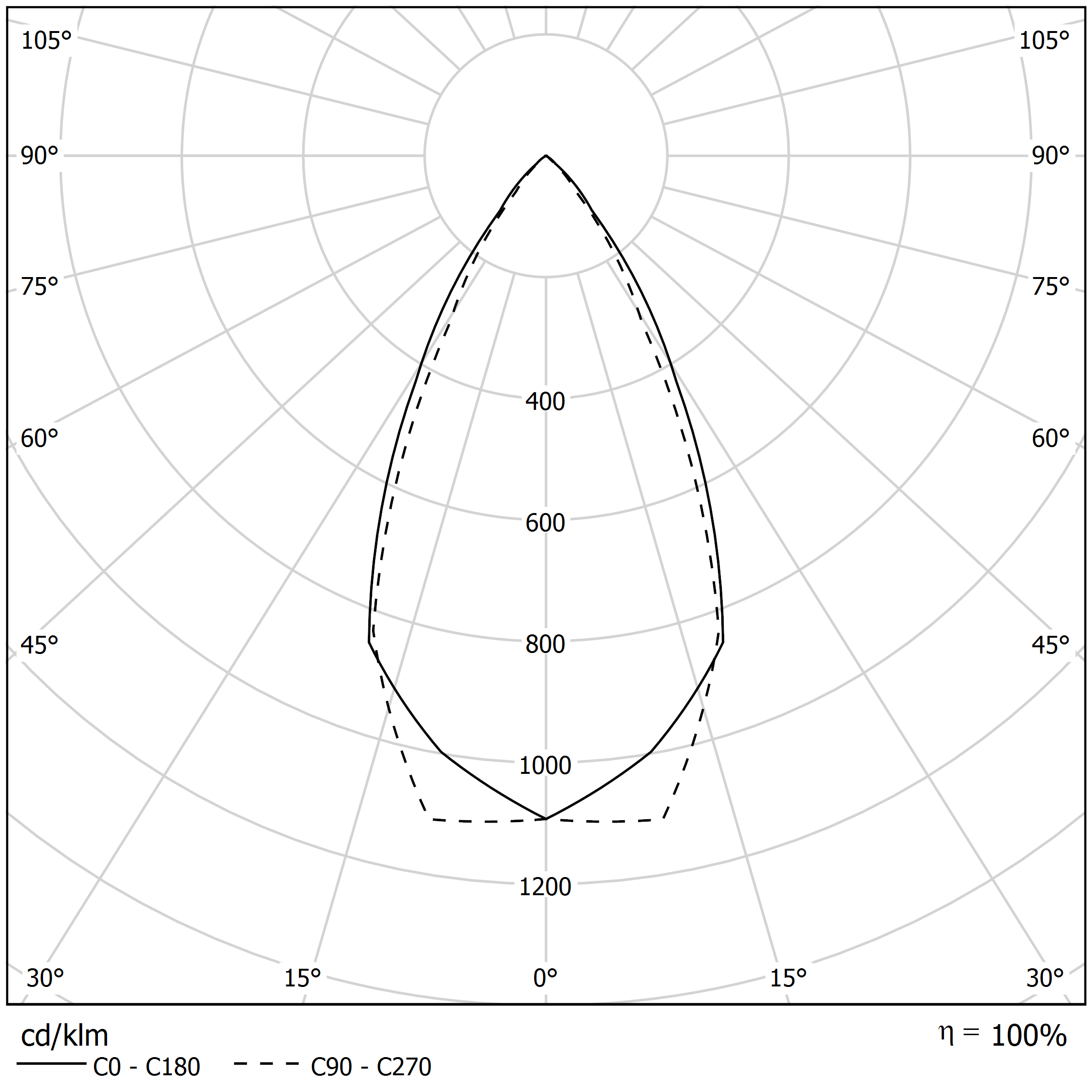

Optics
Aluminium profile with microcell optics UGR <19. Luminaire complete with driver and sacrificial cover trim.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
94DK5K460
5W 60° 4000K
1900lm
128x26mm
Standard
Dimmable
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
94DK5K360
5W 60° 3000K
1745lm
128x26mm
Standard
Dimmable

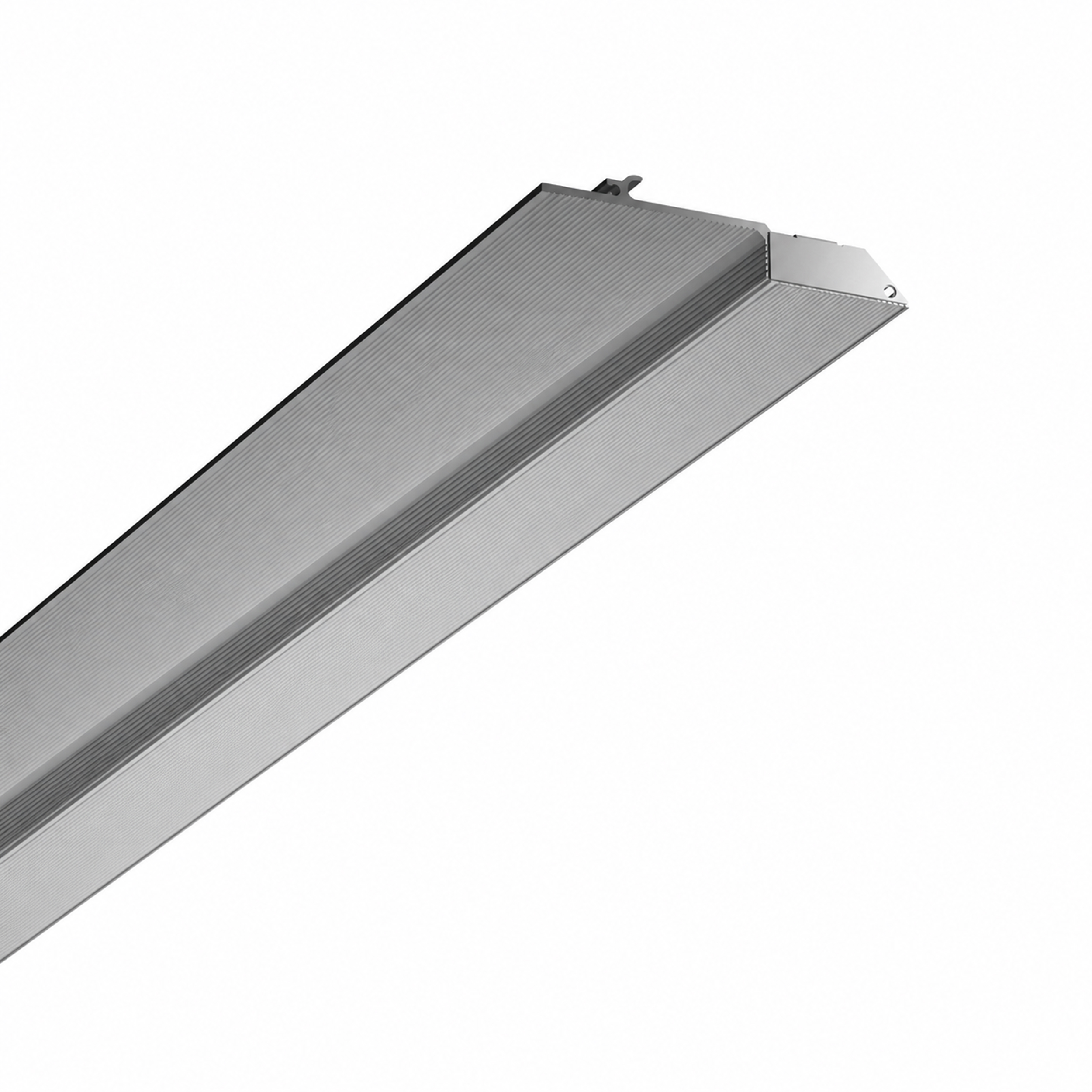

OPERA FREE PROFILE
OPERA
TECHNICAL DRAWING
Body
Anodised aluminium trimless profile.
To be purchased separately
Flex Strip LED HE (IP20, Tunable White, Dim to Warm, RGBW, RGBW IP67, IP67).
Datasheets
code
flux
size
wiring
datasheet
specification items
94AA500
500mm
No
94AA1000
1000mm
No
94AA2000
2000mm
No
94AA3000
3000mm
No
