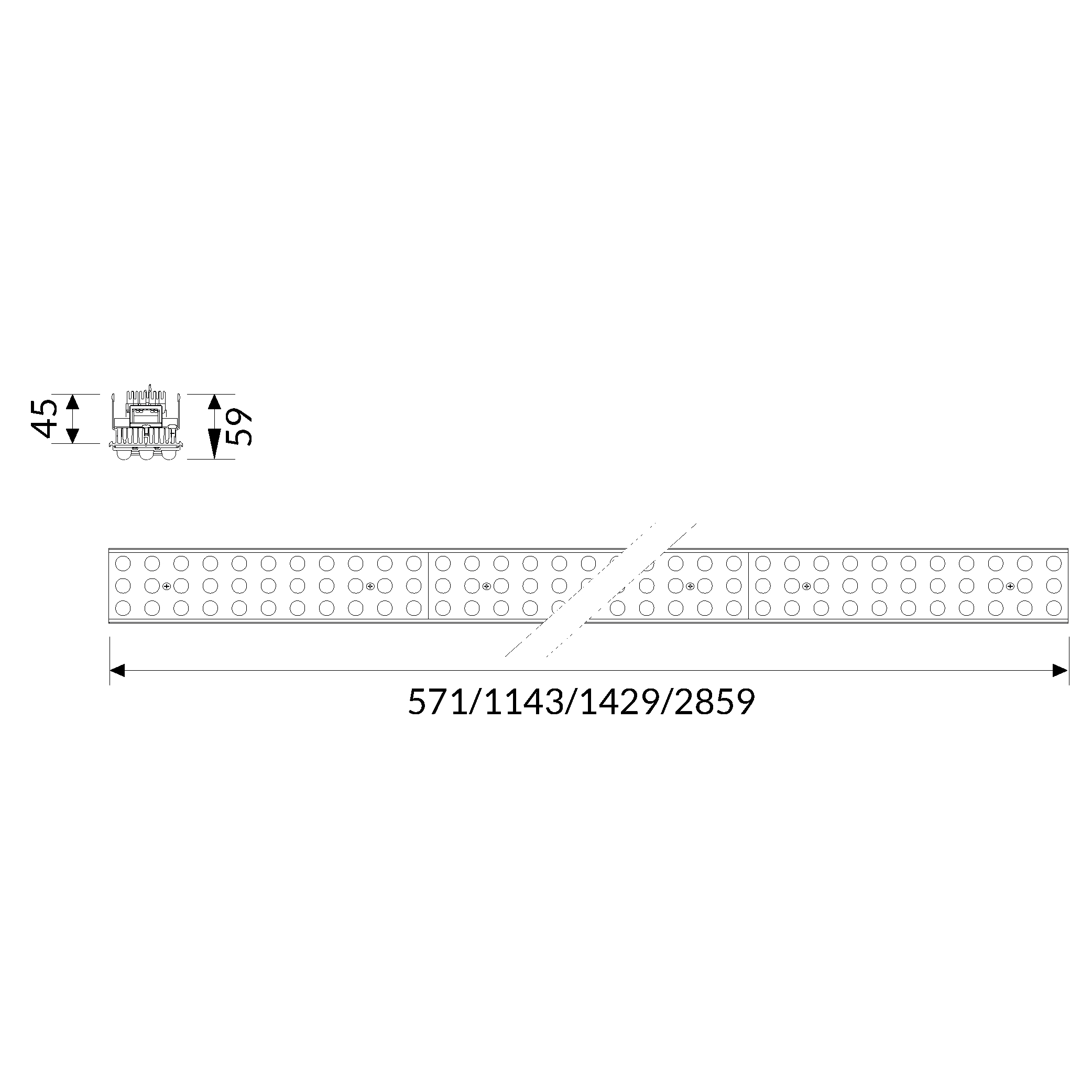

VECTOR
Specifications
Optics
Body
Legal References
On Request
Integrated driver
Colour temperature: 3000K/4000K
CRI>90
McAdams 3
Life Time: L80/B10 >50.000h
5 years complete warranty
Eye safety: RG0/RG1 in accordance with EN62471:2009
PMMA lens for concentrating emission
PMMA lens for diffused emission
PMMA lens for double asymmetrical emission
Manufactured in aluminum with epoxy powder coating.
In compliance with the safety standards EN 60 598-1
and UNI EN 12464-1 (lighting for working places).
Wiring DALI dimmable – Code: D*
Driver Bluetooth – Code: BT*
Wiring with emergency kit – Code: EM for 1 hour / EM3H for 3 hours*
Colour temperature: 5000K*
*where available
Integrated driver
Colour temperature: 3000K/4000K
CRI>90
McAdams 3
Life Time: L80/B10 >50.000h
5 years complete warranty
Eye safety: RG0/RG1 in accordance with EN62471:2009
PMMA lens for concentrating emission
PMMA lens for diffused emission
PMMA lens for double asymmetrical emission
Manufactured in aluminum with epoxy powder coating.
In compliance with the safety standards EN 60 598-1
and UNI EN 12464-1 (lighting for working places).
Wiring DALI dimmable – Code: D*
Driver Bluetooth – Code: BT*
Wiring with emergency kit – Code: EM for 1 hour / EM3H for 3 hours*
Colour temperature: 5000K*
*where available
VECTOR

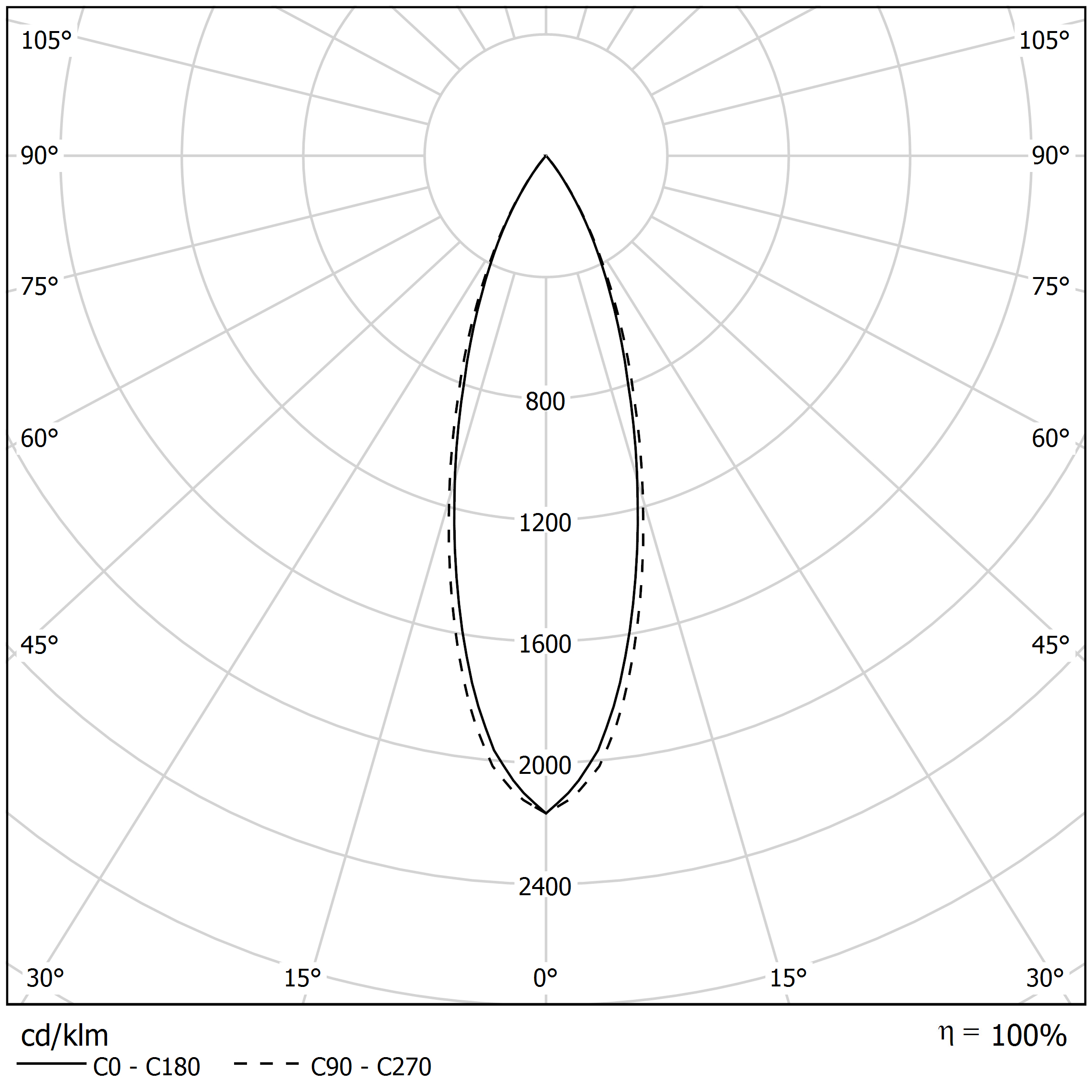

VECTOR PC
PMMA lens for concentrating emission 30°.
Datasheets
4000K
Datasheets
3000K

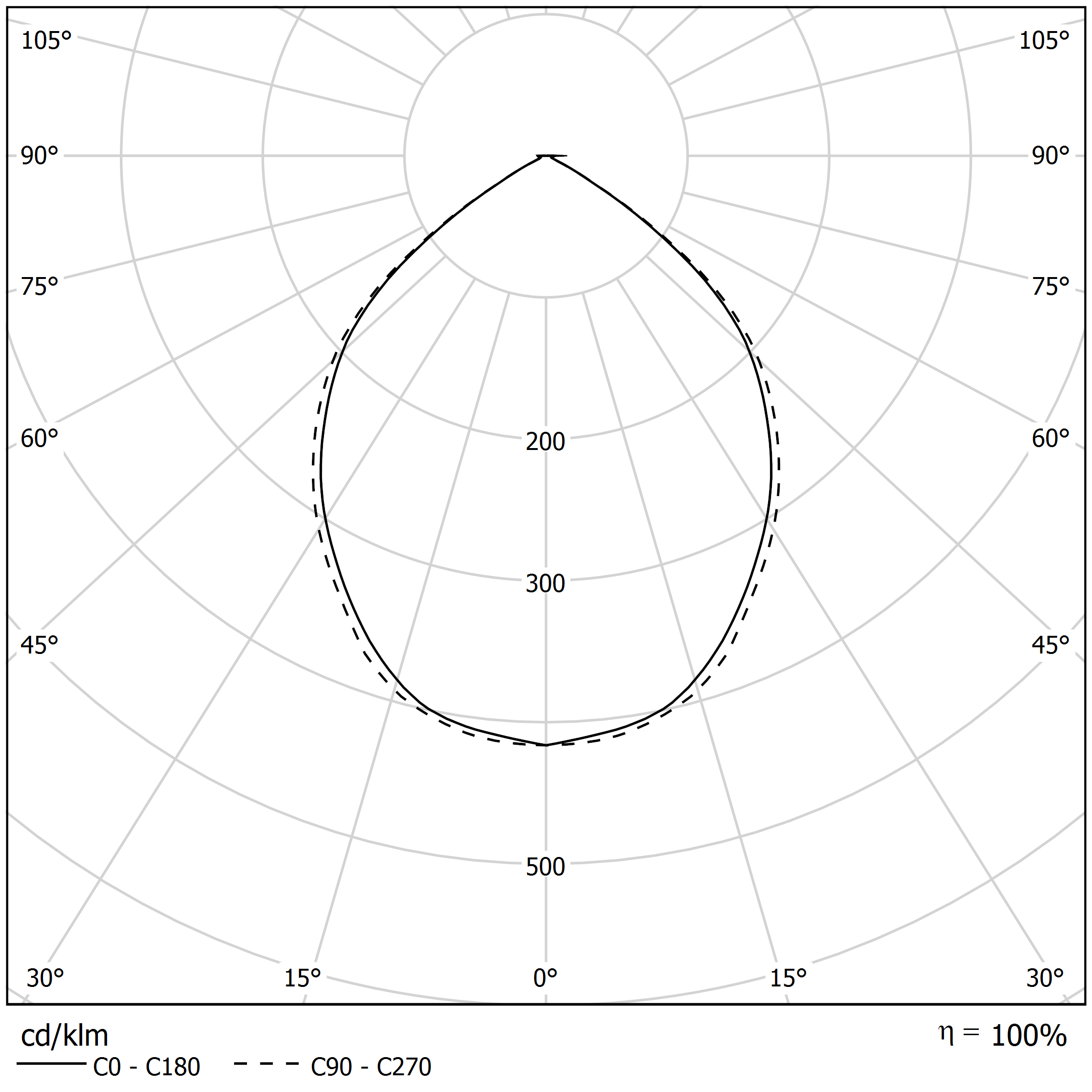

VECTOR DS
PMMA lens for diffused emission.
Datasheets
4000K
Datasheets
3000K

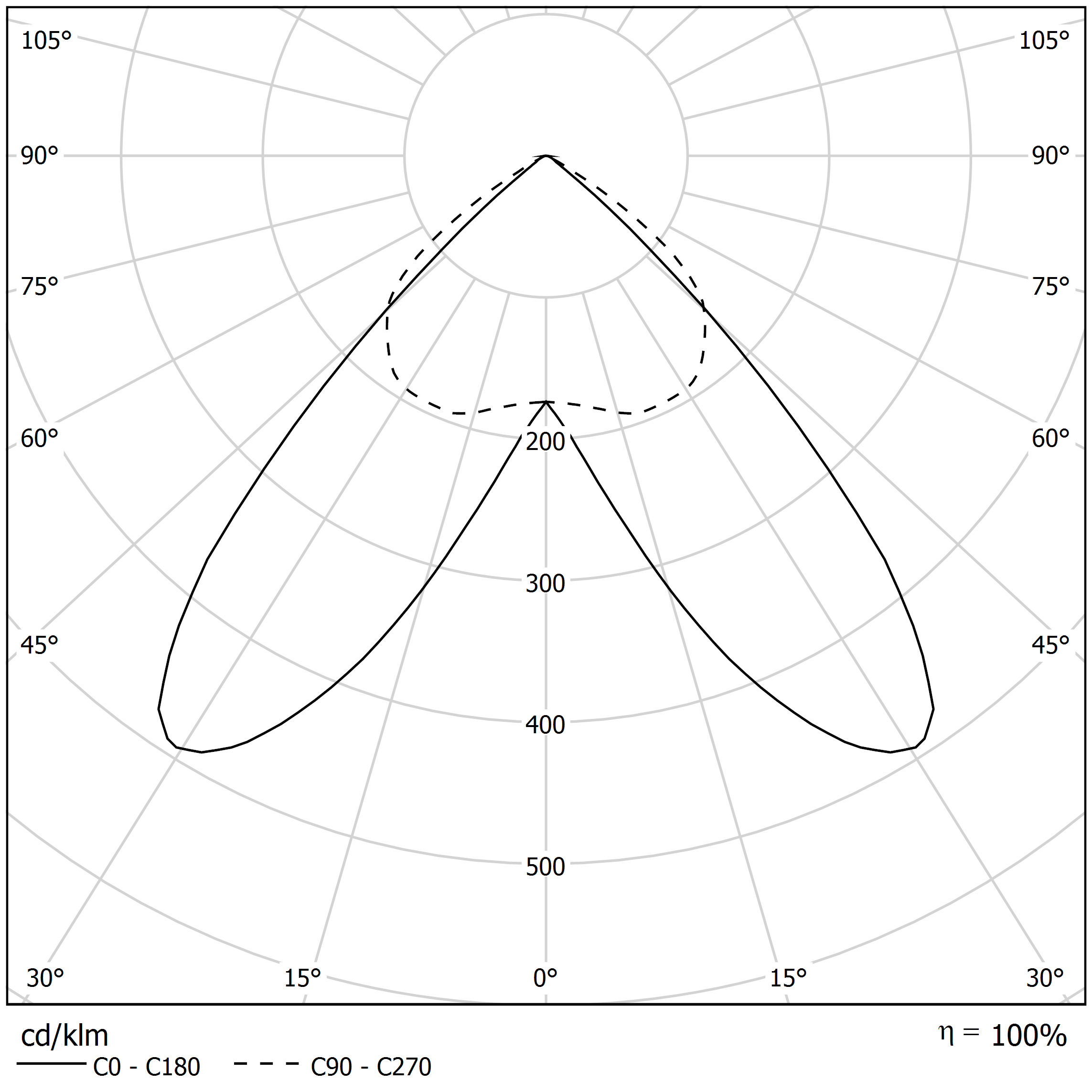

VECTOR DAS
PMMA lens for double asymmetrical emission.
Datasheets
4000K
Datasheets
3000K

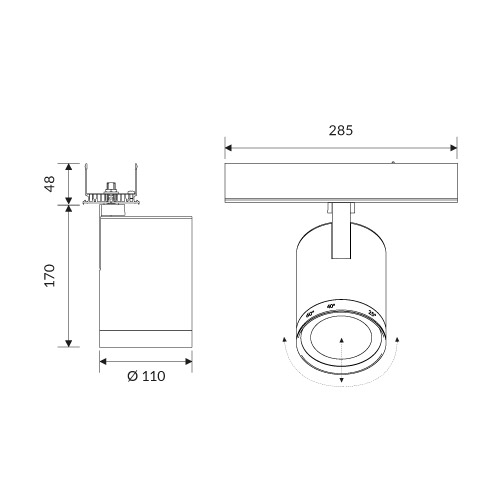

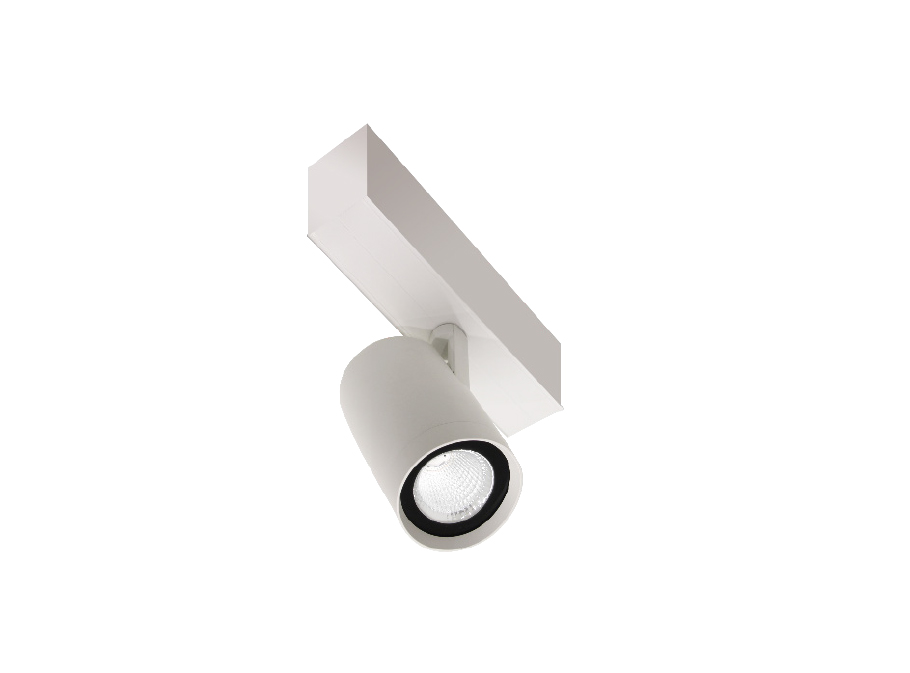

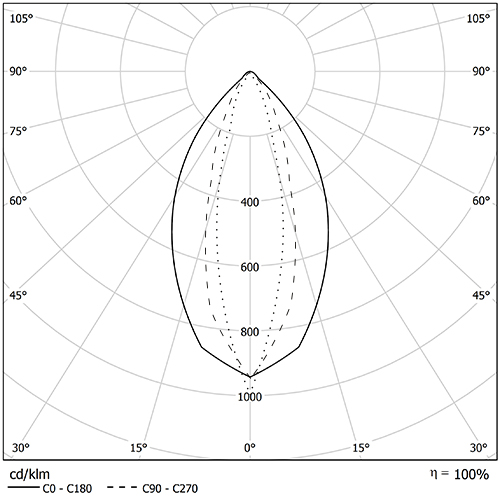

VECTOR SPOT ZOOM MEDIUM
Internal aluminum reflector:
adjustable emission from 25 ° to 60 °.
