TERES ARK
TERES ARK is a compact and versatile adjustable spotlight designed to ensure precise aiming, application flexibility and aesthetic continuity within the project. Its 90° + 90° double joint allows the light to be directed with great freedom, including upwards, expanding its compositional possibilities. Available in Mini and Small versions, it features PMMA lenses with a range of optics, including Zoom configurations for enhanced adaptability. The direct emission with UGR<19 ensures controlled light and visual comfort.
The interchangeable die-cast aluminium mask, customisable in any finish, allows the product to integrate harmoniously with the project’s materials, colours and identity.
The interchangeable die-cast aluminium mask, customisable in any finish, allows the product to integrate harmoniously with the project’s materials, colours and identity.
TECHNICAL FEATURES
OPTICS
BODY
LEGAL REFERENCES
CERTIFICATIONS
ON REQUEST
Colors
- In-track driver
- CoB LED technology
- 3000K/4000K
- CRI>90
- Eye safety: RG0/RG1
- MacAdam 3
- L90/B10>50.000h
- IP40
- IK02
- Direct emission
- UGR<19
- MINI: internal PMMA lenses with beam angles of 15° – 24° – 36° – 50°
- SMALL: internal PMMA lenses with beam angles of 15° – 24° – 36° – 50° – 70°
- ZOOM PMMA lens: MINI 20° – 50° and SMALL 20° – 60°
Epoxy powder-coated aluminium.
In compliance with the safety standards EN 60 598-1 and UNI EN 12464-1 (lighting for working places).
- CE compliant
- RETILAP compliant
- Energy class C
- 5-year warranty
- DALI – code D*
- Bluetooth – code BT*
- 2700K – code K27*
- 5000K – code K5*
-
White RAL 9003 wrinkled - code W
-
Black RAL 9005 wrinkled - code BK
-
Other colors - on request
TECHNICAL FEATURES
- In-track driver
- CoB LED technology
- 3000K/4000K
- CRI>90
- Eye safety: RG0/RG1
- MacAdam 3
- L90/B10>50.000h
- IP40
- IK02
OPTICS
- Direct emission
- UGR<19
- MINI: internal PMMA lenses with beam angles of 15° – 24° – 36° – 50°
- SMALL: internal PMMA lenses with beam angles of 15° – 24° – 36° – 50° – 70°
- ZOOM PMMA lens: MINI 20° – 50° and SMALL 20° – 60°
BODY
Epoxy powder-coated aluminium.
LEGAL REFERENCES
In compliance with the safety standards EN 60 598-1 and UNI EN 12464-1 (lighting for working places).
CERTIFICATIONS
- CE compliant
- RETILAP compliant
- Energy class C
- 5-year warranty
ON REQUEST
- DALI – code D*
- Bluetooth – code BT*
- 2700K – code K27*
- 5000K – code K5*
TERES ARK
versions
TERES ARK
TERES ARK ZOOM

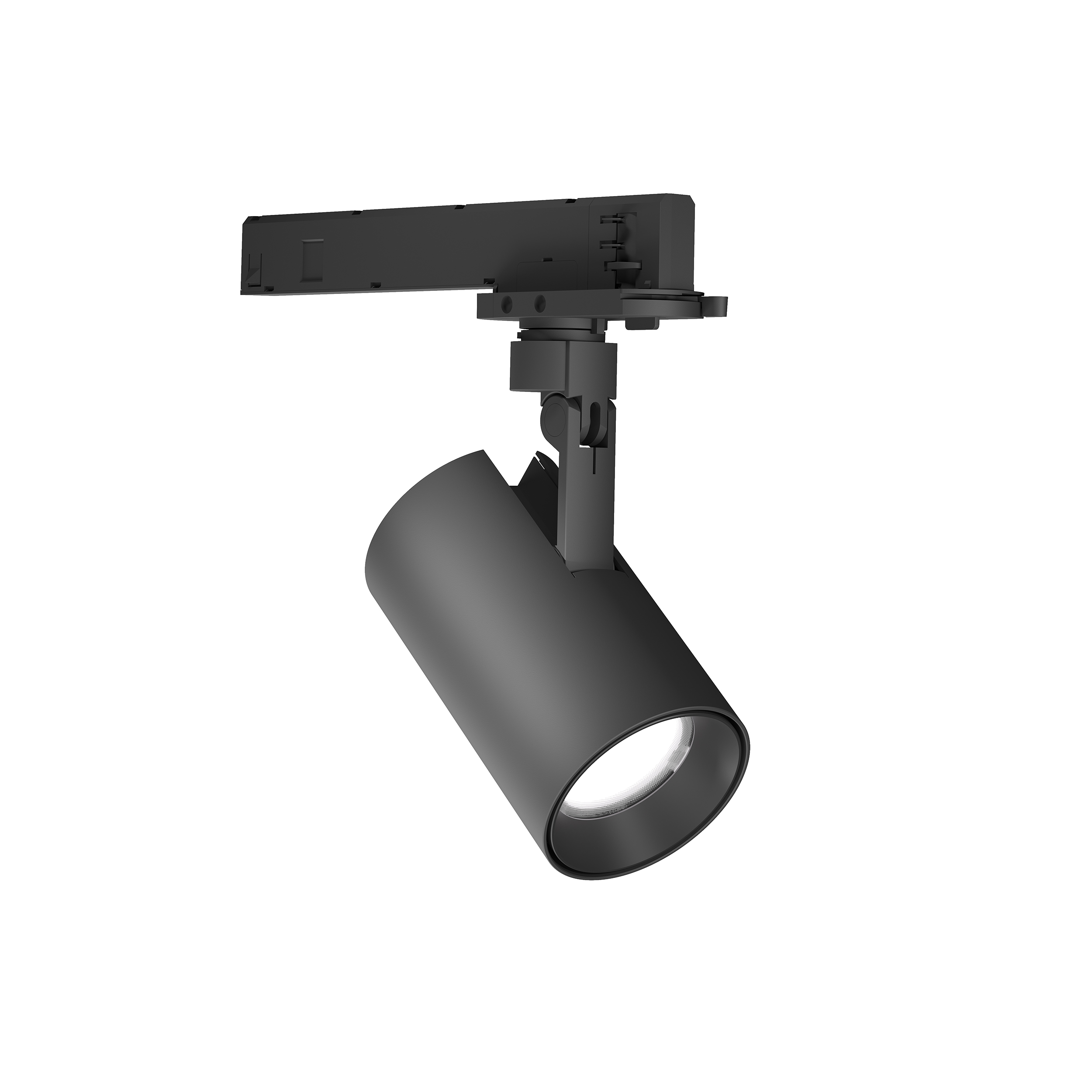

TERES ARK Mini
TERES ARK

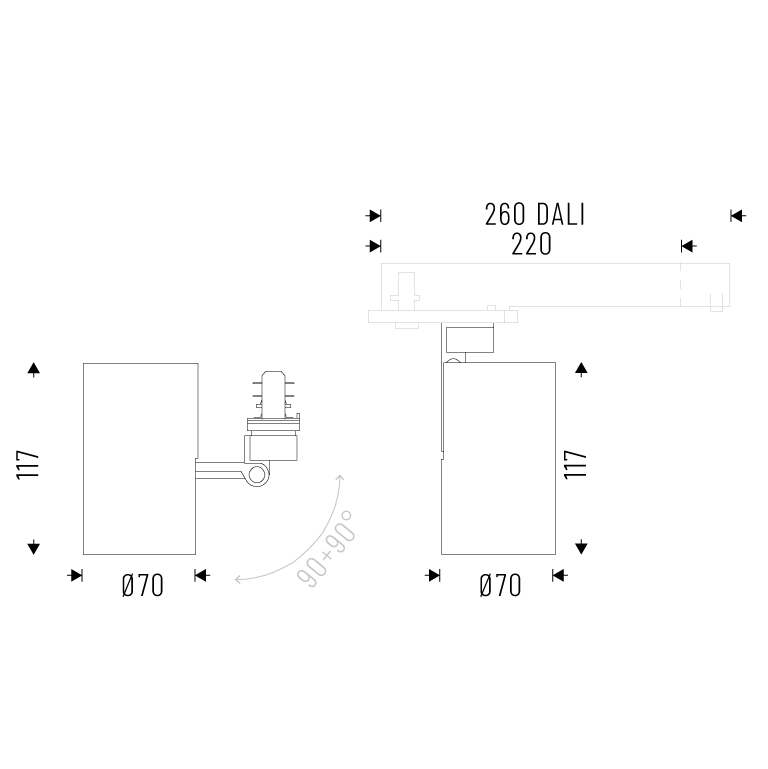

TECHNICAL DRAWING

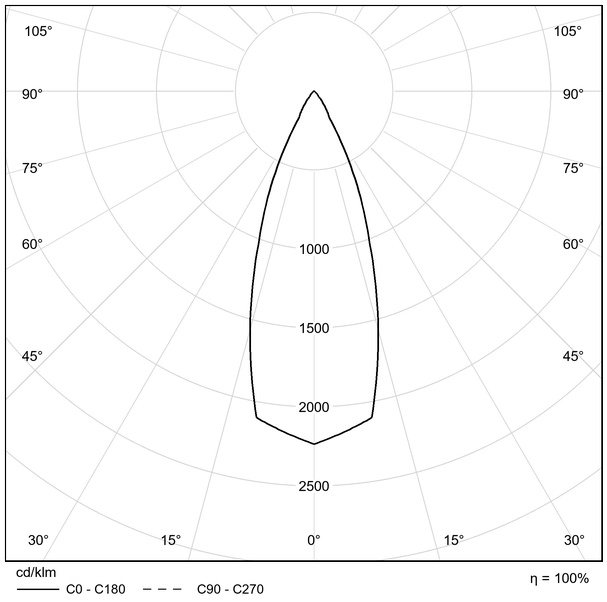

Optics
PMMA lenses with 15° – 24° – 36° – 50° beam angles.
Direct emission UGR<19.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
14PC14K415K
14W 15° 4000K
2492lm
Ø70mm
Standard
Dimmable
14PC14K424K
14W 24° 4000K
2492lm
Ø70mm
Standard
Dimmable
14PC14K436K
14W 36° 4000K
2492lm
Ø70mm
Standard
Dimmable
14PC14K450K
14W 50° 4000K
2492lm
Ø70mm
Standard
Dimmable
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
14PC14K315K
14W 15° 3000K
2329lm
Ø70mm
Standard
Dimmable
14PC14K324K
14W 24° 3000K
2329lm
Ø70mm
Standard
Dimmable
14PC14K336K
14W 36° 3000K
2329lm
Ø70mm
Standard
Dimmable
14PC14K350K
14W 50° 3000K
2329lm
Ø70mm
Standard
Dimmable

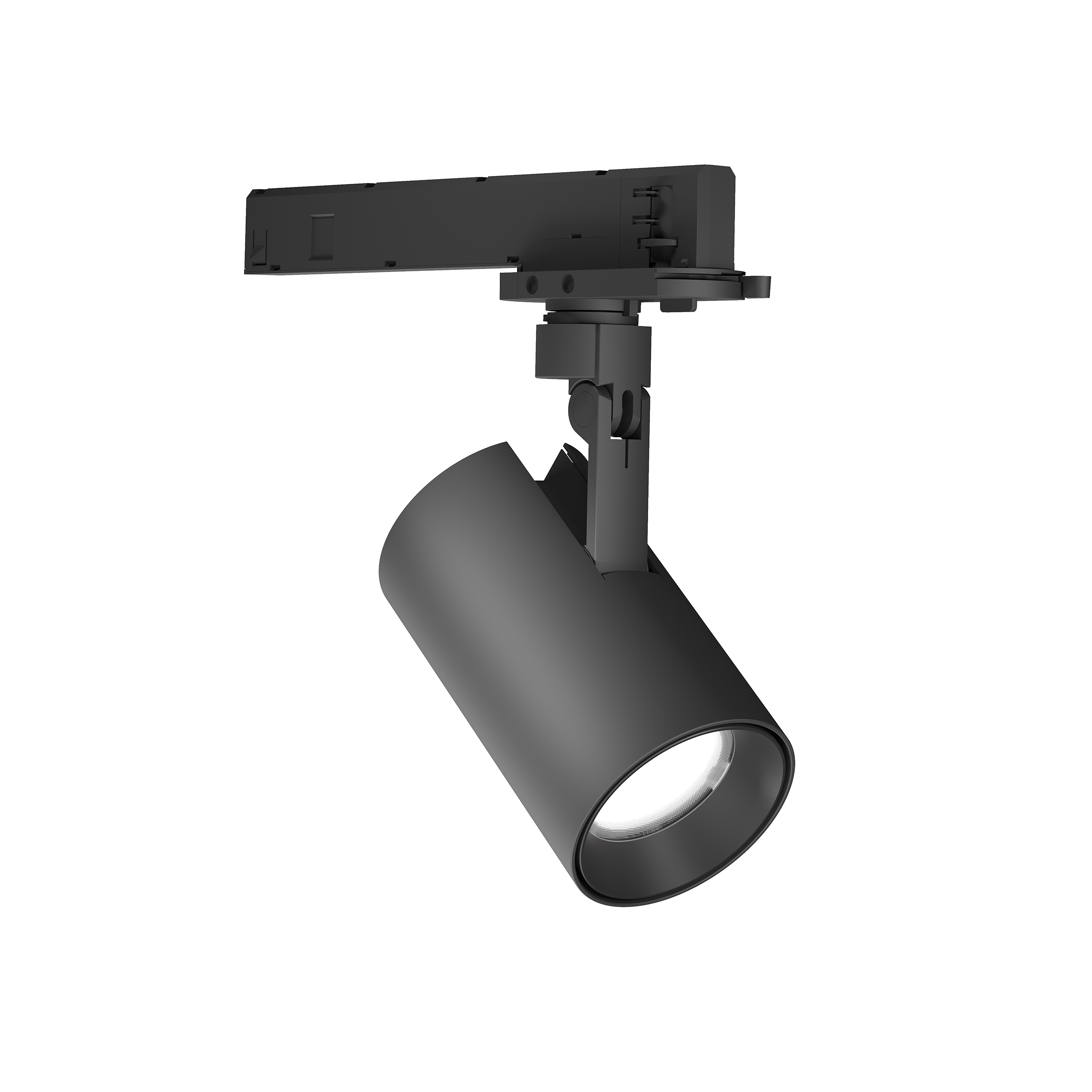

TERES ARK Small
TERES ARK

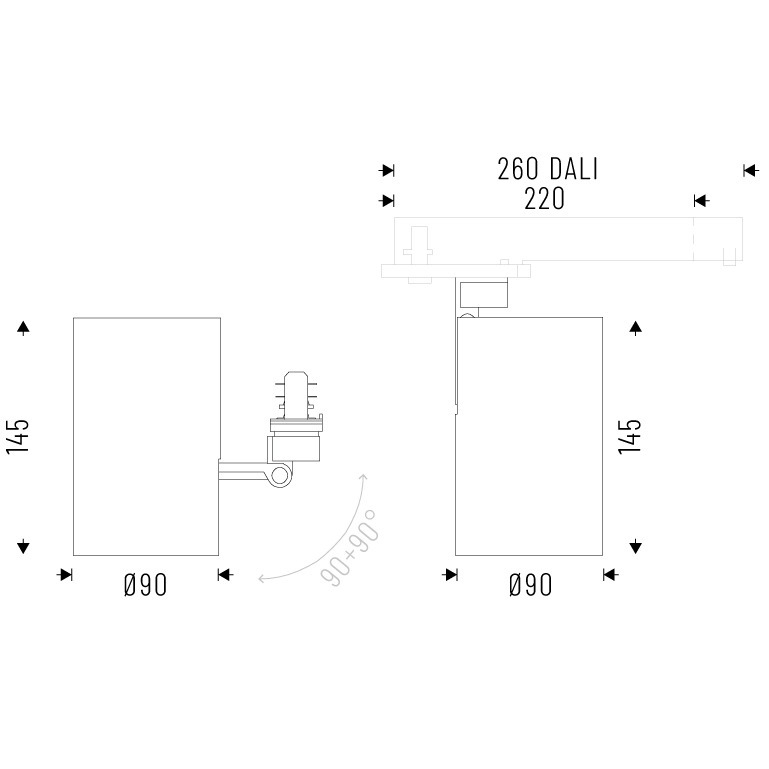

TECHNICAL DRAWING
Optics
PMMA lenses with 15° – 24° – 36° – 50° – 70° beam angles.
Direct emission UGR<19.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
14PC24K415KS
24W 15° 4000K
3800lm
Ø90mm
Standard
Dimmable
14PC24K424KS
24W 24° 4000K
3800lm
Ø90mm
Standard
Dimmable
14PC24K436KS
24W 36° 4000K
3800lm
Ø90mm
Standard
Dimmable
14PC24K450KS
24W 50° 4000K
3800lm
Ø90mm
Standard
Dimmable
14PC24K470KS
24W 70° 4000K
3800lm
Ø90mm
Standard
Dimmable
14PC34K415KS
34W 15° 4000K
5394lm
Ø90mm
Standard
Dimmable
14PC34K424KS
34W 24° 4000K
5394lm
Ø90mm
Standard
Dimmable
14PC34K436KS
34W 36° 4000K
5394lm
Ø90mm
Standard
Dimmable
14PC34K450KS
34W 50° 4000K
5394lm
Ø90mm
Standard
Dimmable
14PC34K470KS
34W 70° 4000K
5394lm
Ø90mm
Standard
Dimmable
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
14PC24K315KS
24W 15° 3000K
3552lm
Ø90mm
Standard
Dimmable
14PC24K324KS
24W 24° 3000K
3552lm
Ø90mm
Standard
Dimmable
14PC24K336KS
24W 36° 3000K
3552lm
Ø90mm
Standard
Dimmable
14PC24K350KS
24W 50° 3000K
3552lm
Ø90mm
Standard
Dimmable
14PC24K370KS
24W 70° 3000K
3552lm
Ø90mm
Standard
Dimmable
14PC34K315KS
34W 15° 3000K
5042lm
Ø90mm
Standard
Dimmable
14PC34K324KS
34W 24° 3000K
5042lm
Ø90mm
Standard
Dimmable
14PC34K336KS
34W 36° 3000K
5042lm
Ø90mm
Standard
Dimmable
14PC34K350KS
34W 50° 3000K
5042lm
Ø90mm
Standard
Dimmable
14PC34K370KS
34W 70° 3000K
5042lm
Ø90mm
Standard
Dimmable

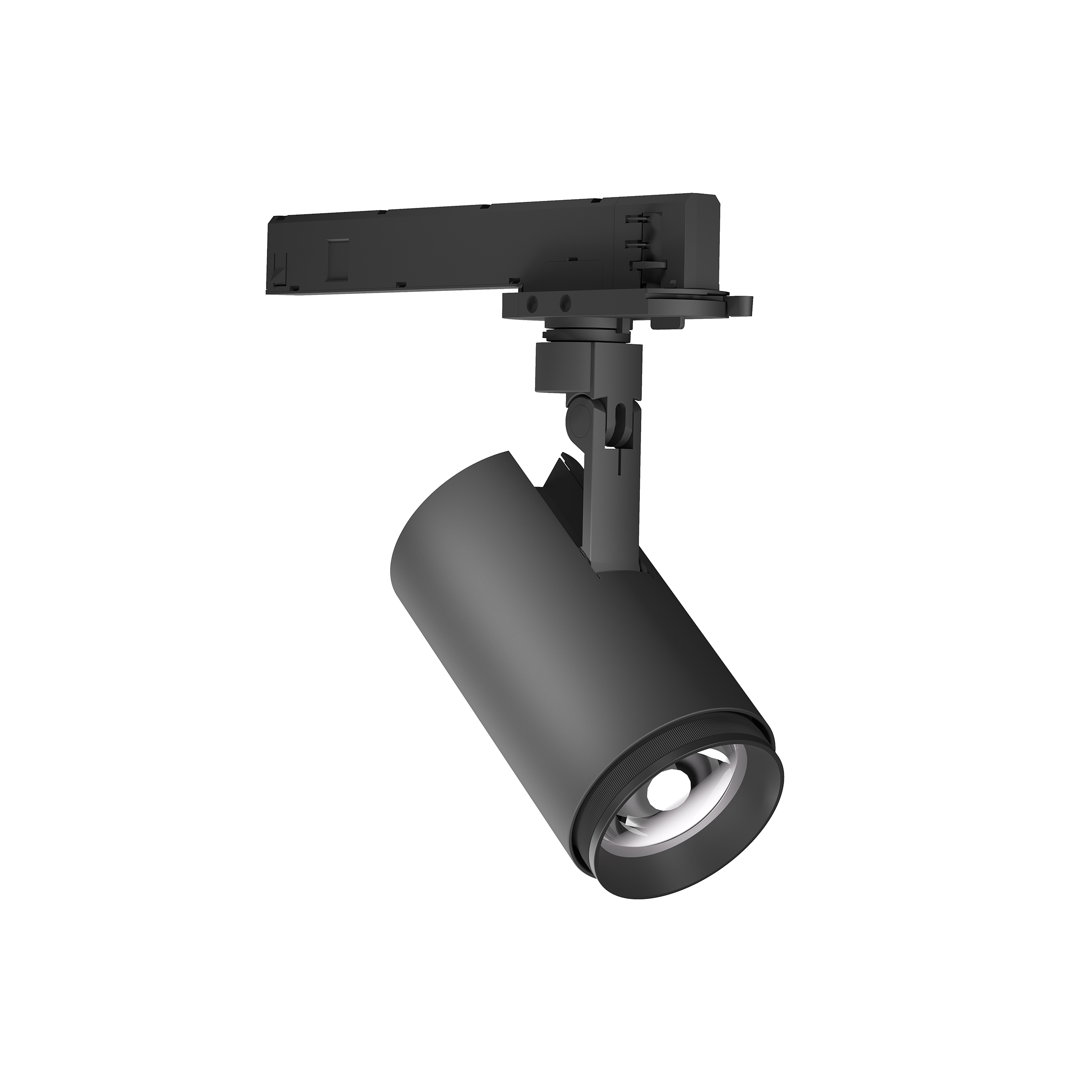

TERES ARK ZOOM Mini
TERES ARK

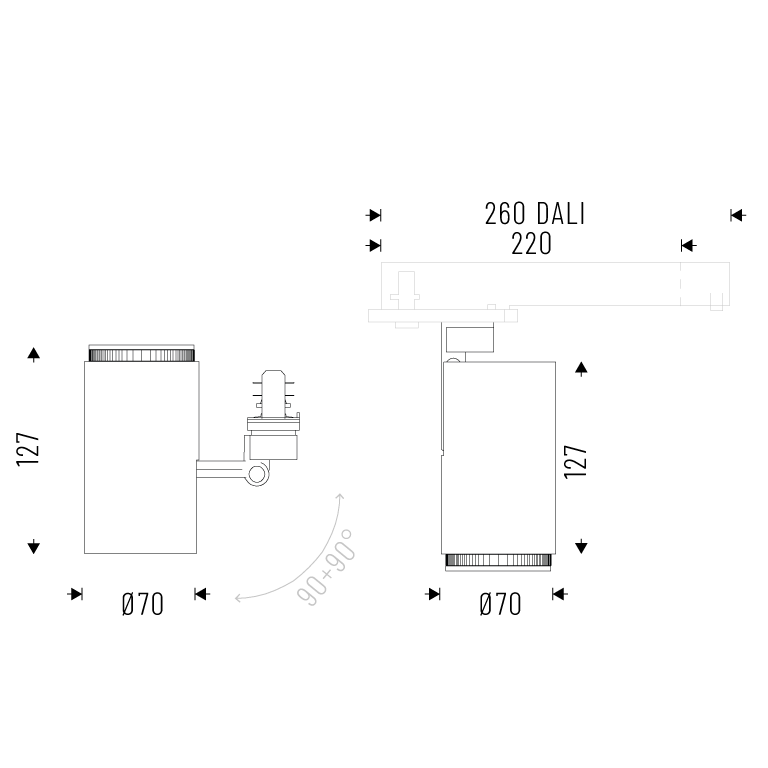

TECHNICAL DRAWING

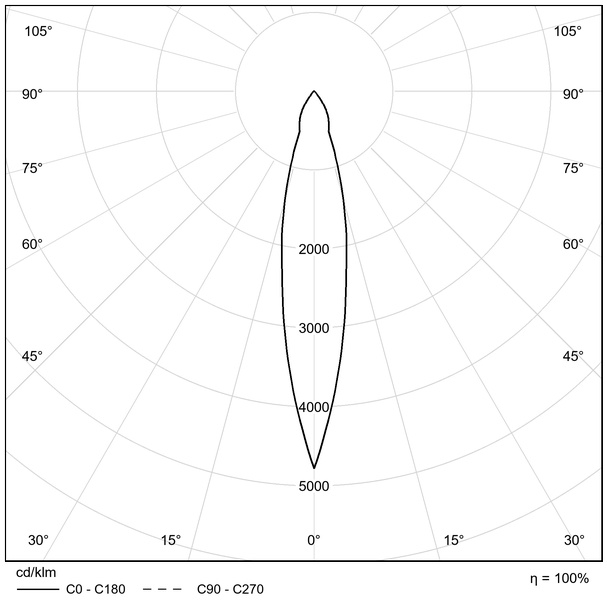

Optics
PMMA lenses with adjustable beam angles from 25° to 50°.
Direct emission UGR<19.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
14ZM14K4K
14W 20°-50° 4000K
1622lm
Ø70mm
Standard
Dimmable
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
14ZM13K3K
14W 20°-50° 3000K
1516lm
Ø70mm
Standard
Dimmable

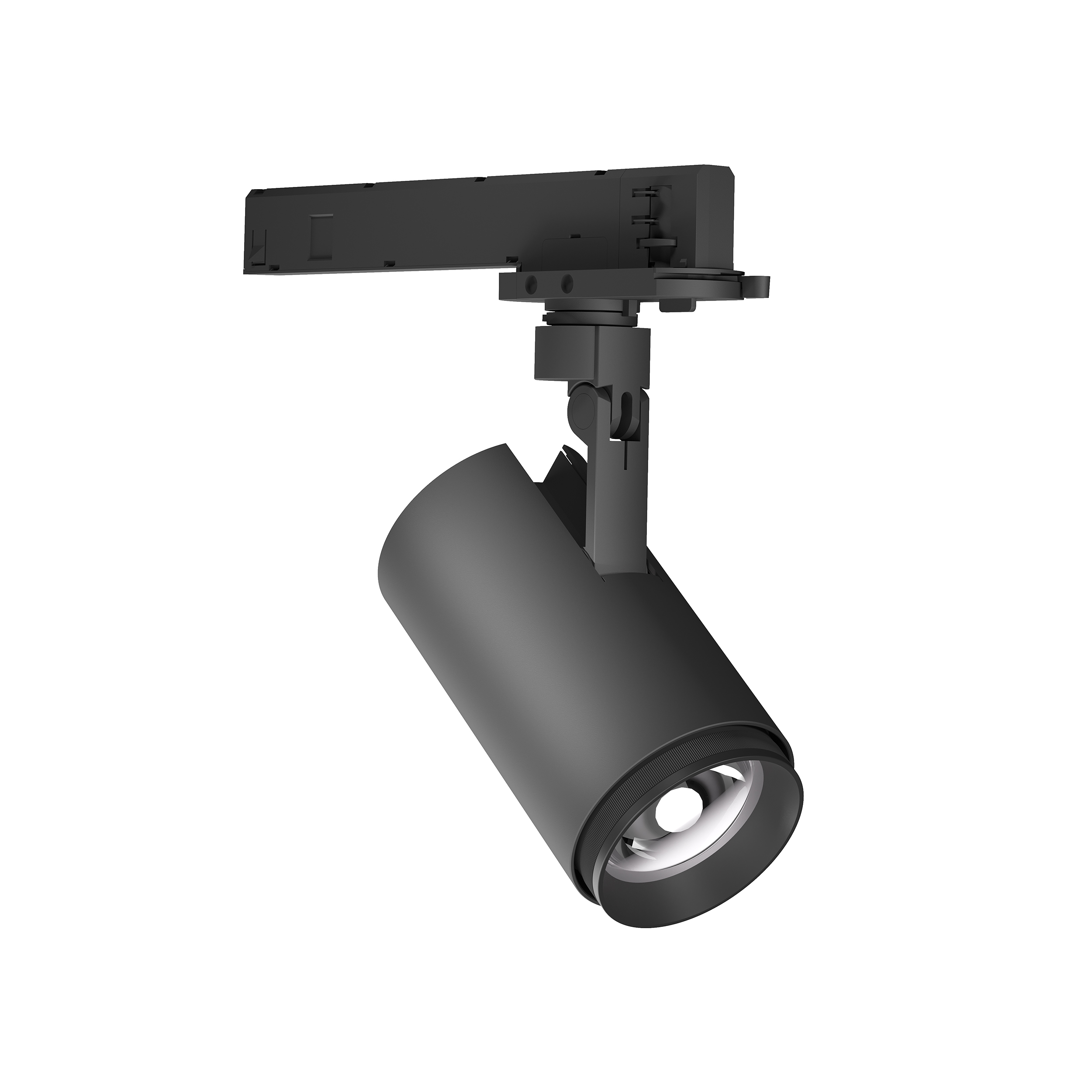

TERES ARK ZOOM Small
TERES ARK

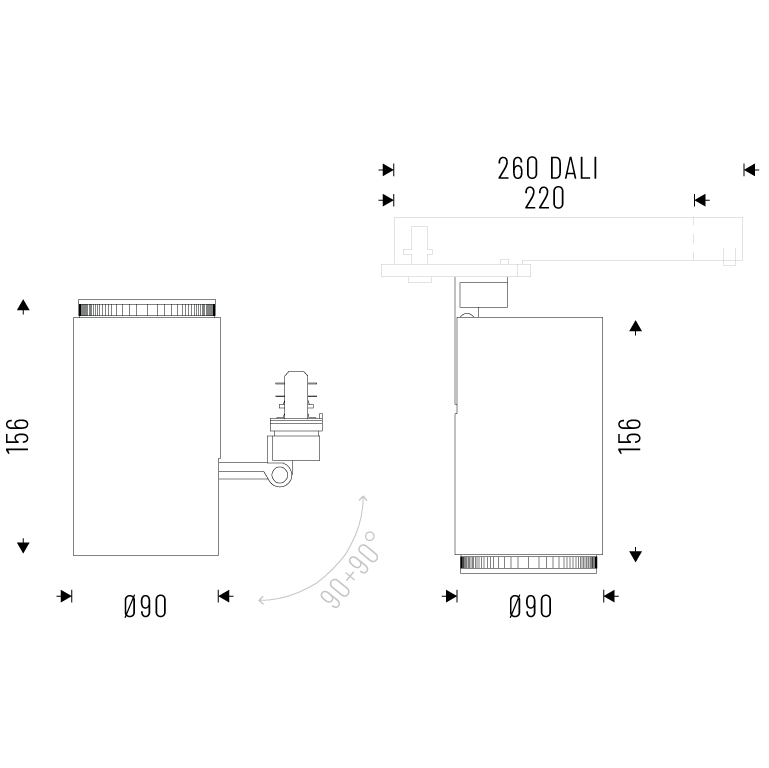

TECHNICAL DRAWING

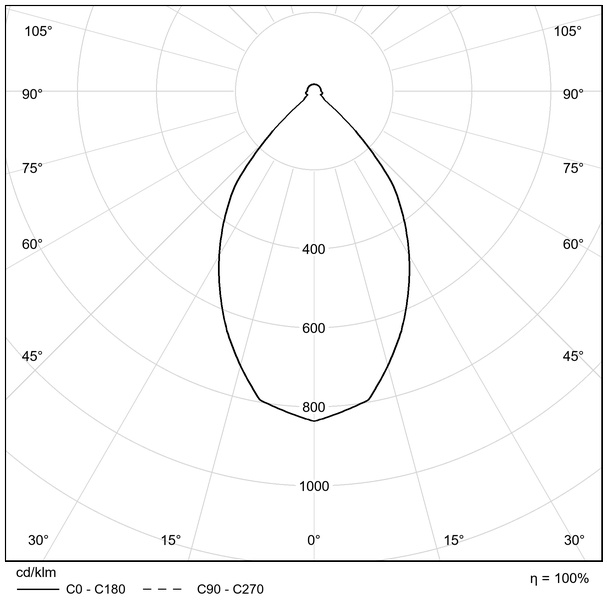

Optics
PMMA lenses with adjustable beam angles from 25° to 60°.
Direct emission UGR<19.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
14ZM24K4KS
24W 20°-60° 4000K
2544lm
Ø90mm
Standard
Dimmable
14ZM34K4KS
34W 20°-60° 4000K
3610lm
Ø90mm
Standard
Dimmable
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
14ZM24K3KS
24W 20°-60° 3000K
2448lm
Ø90mm
Standard
Dimmable
14ZM34K3KS
34W 20°-60° 3000K
3468lm
Ø90mm
Standard
Dimmable
