The luminaires are equipped with 3 different types of lens for anti-panic lighting, escape routes and presidia.
REM
REM is a range of emergency fixtures with integrated driver and accumulator (1/3h) for recessed installation, ceiling fixture and three-phase track with limited dimensions.The luminaires are equipped with 3 different types of lens for anti-panic lighting, escape routes and presidia.
Specifications
Optics
Body
Legal References
On Request
Specifications
Integrated driver and accumulator
Colour temperature: 6500K
CRI>80
McAdams 3
Life Time: L80/B10 >50.000h
5 years complete warranty
Eye safety: RG0/RG1 in accordance with EN62471:2009
Optics
Spot
Escape routes
Anti-panic
Body
Polycarbonate body.
Legal References
In compliance with the safety standards EN 60 598-1 and UNI EN 12464-1 (lighting for working places).
On Request
Wiring DALI dimmable – Code: D
3h autonomy
S/A version
Self-test
REM
versions
REM Track
technical data
Description
Description
With Eutrack adaptor.
1h/3h autonomy. S/E mode.
Datasheets 6500K
code
flux
size
wiring
datasheet
specification items
13EM2L65H1
2W 6500K
217lm
119x100mm
Standard
13EM2L65H3
2W 6500K
217lm
119x100mm
Standard

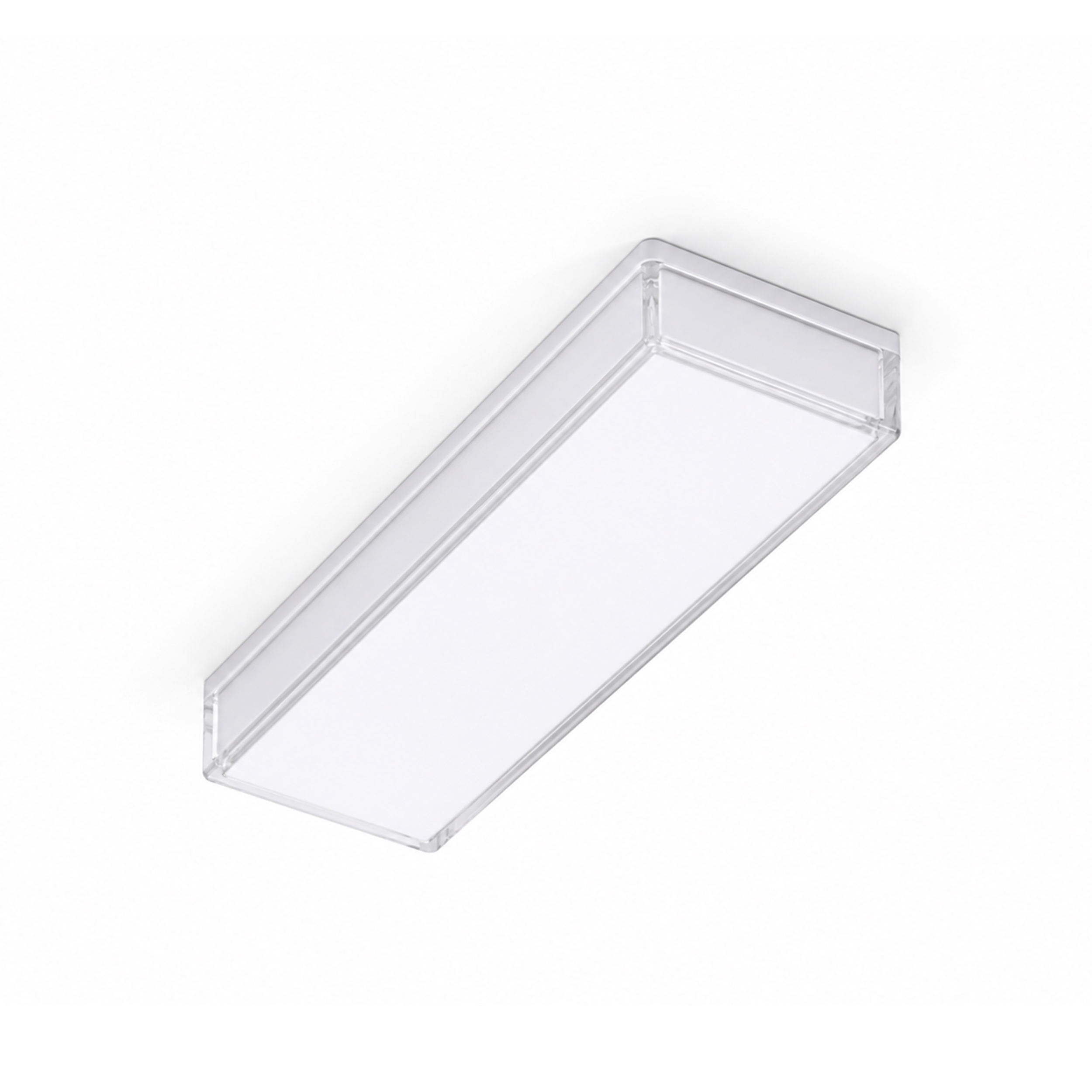

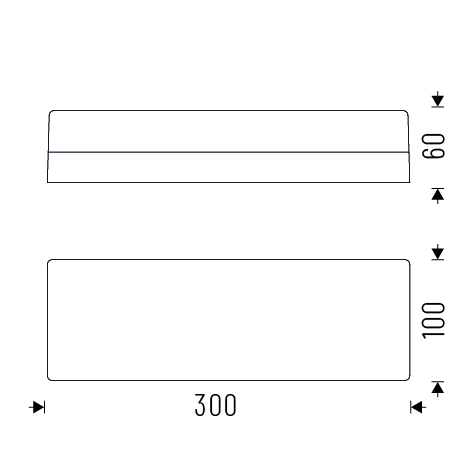

REM Ceiling
technical data
Description
Description
For ceiling mounting.
1h/3h autonomy. S/E mode.
Datasheets 6500K
code
flux
size
wiring
datasheet
specification items
13EM2L65H1C
2W 6500K
217lm
119x100mm
Standard
13EM2L65H3C
2W 6500K
217lm
119x100mm
Standard
REM Recessed
technical data
Description
Description
For recessed installation.
1h/3h autonomy. S/E mode.
Datasheets 6500K
code
flux
size
wiring
datasheet
specification items
13EM2L65H1R
2W 6500K
217lm
Ø 51mm
Standard
13EM2L65H3R
2W 6500K
217lm
Ø 51mm
Standard
