MAKROT
MAKROT is a modular system designed to refresh existing lighting installations with new lighting configurations, without modifying the track structure. Compatible with EUTRACK three-phase electrified tracks, it allows you to easily install modules for general or accent lighting—even on existing systems—combining them along the same line. The Essential version includes different modules—microcells, fly eyes, diffusers and adjustable spots—with an integrated connector, designed to ensure continuous lighting and maximum compositional freedom. The Pro version enriches the system with customisable covers and dedicated clips, with the possibility, on request, to integrate an indirect lighting component, offering a sophisticated response for contemporary design.
Technical Features
Optics
Body
Legal References
Certifications
On request
Colors
- Integrated driver
- CLD technology (UGR <19) for VDU / video display terminal environments
- Satin diffuser UGR <22 Continuous direct emission
- SPOT module with beam lens from 15° to 70°
- 3000K / 4000K
- CRI > 90
- Eye safety: RG0 / RG1
- MacAdam 3
- L80 / B20 > 80,000 hours
- IP40
- Direct emission
- Direct / indirect emission
- UGR <16; <19; <22
Epoxy powder-coated aluminium
The luminaires comply with safety standards EN 60598-1 and UNI EN 12464-1 (lighting of work environments). The DALI product complies with CAM Edilizia DM 23 June 2022 No. 256, lighting sector.
- CE compliance
- Energy class C
- 5-year warranty
- DALI – code D*
- Bluetooth – code BT*
- Emergency 1 h – code EM*
- Emergency 3 h – code EM3H*
- 2700K – code K27*
- 6500K – code K65*
-
White RAL 9003 – code B
-
Black RAL 9005 – code C8
-
Other finishes – on request
Technical Features
- Integrated driver
- CLD technology (UGR <19) for VDU / video display terminal environments
- Satin diffuser UGR <22 Continuous direct emission
- SPOT module with beam lens from 15° to 70°
- 3000K / 4000K
- CRI > 90
- Eye safety: RG0 / RG1
- MacAdam 3
- L80 / B20 > 80,000 hours
- IP40
Optics
- Direct emission
- Direct / indirect emission
- UGR <16; <19; <22
Body
Epoxy powder-coated aluminium
Legal References
The luminaires comply with safety standards EN 60598-1 and UNI EN 12464-1 (lighting of work environments). The DALI product complies with CAM Edilizia DM 23 June 2022 No. 256, lighting sector.
Certifications
- CE compliance
- Energy class C
- 5-year warranty
On request
- DALI – code D*
- Bluetooth – code BT*
- Emergency 1 h – code EM*
- Emergency 3 h – code EM3H*
- 2700K – code K27*
- 6500K – code K65*
MAKROT
versions

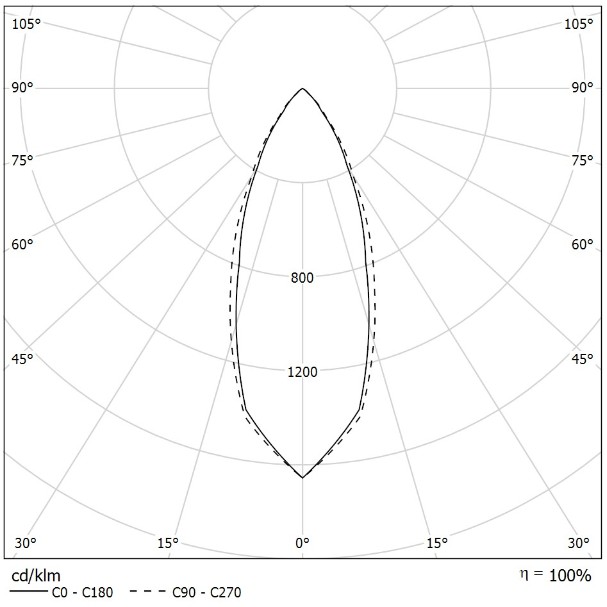

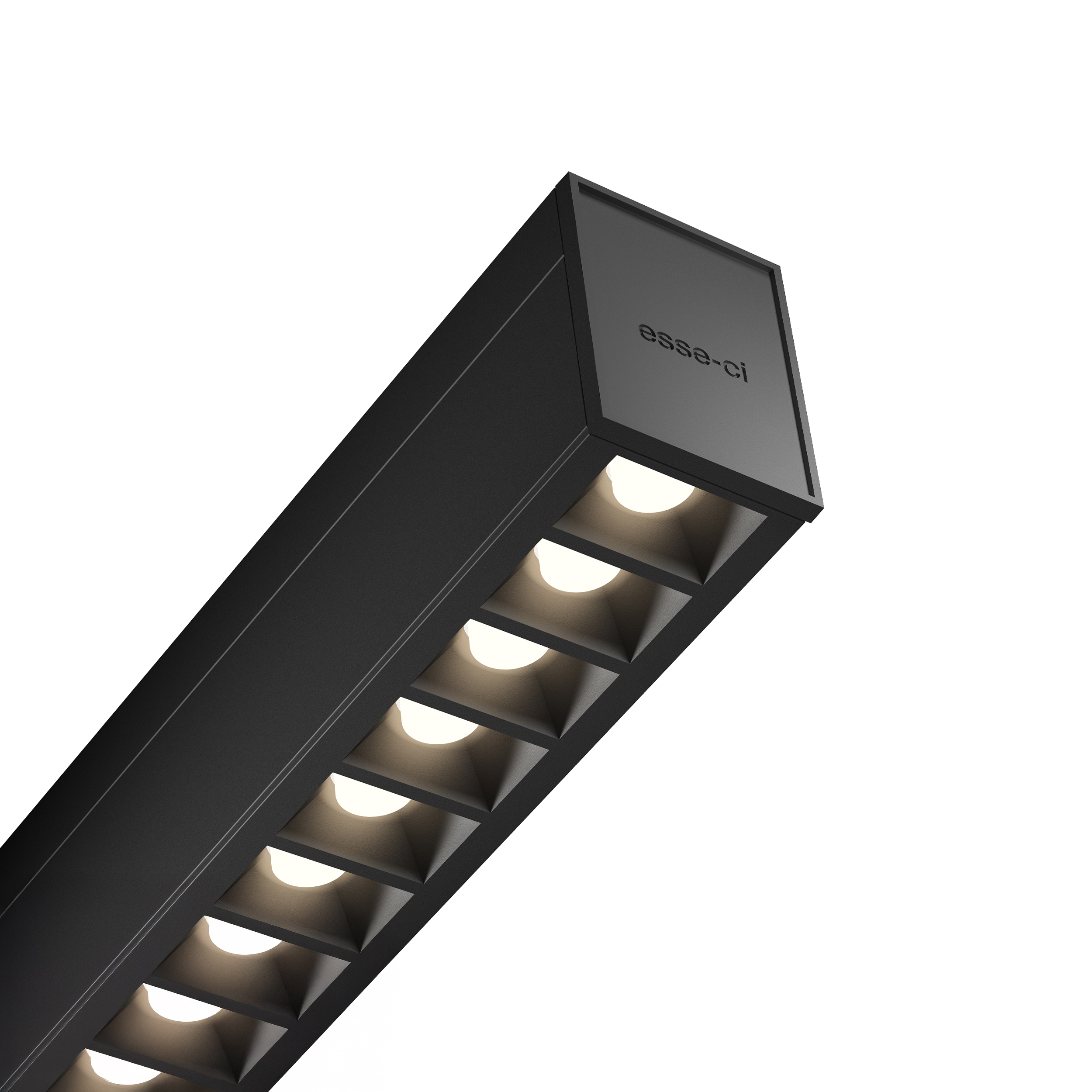

MAKROT DK
MAKROT

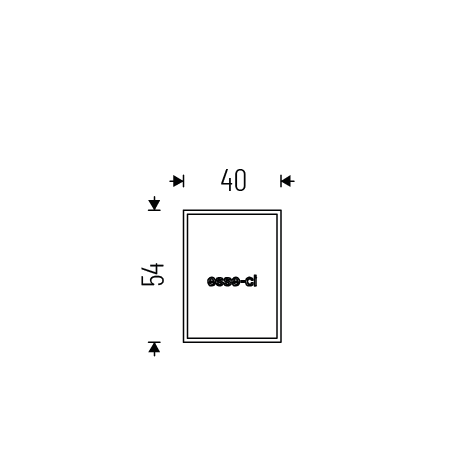

TECHNICAL DRAWING
Optics
Microcell optics UGR<16.
Equipped with EUROSTANDARD connector.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
63DK24K4
24W 60° 4000K
2790lm
1121mm
Standard
Dimmable
Emergency
63DK30K4
30W 60° 4000K
3486lm
1401mm
Standard
Dimmable
Emergency
63DK36K4
36W 60° 4000K
4182lm
1681mm
Standard
Dimmable
Emergency
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
63DK24K3
24W 60° 3000K
2654lm
1121mm
Standard
Dimmable
Emergency
63DK30K3
30W 60° 3000K
3316lm
1401mm
Standard
Dimmable
Emergency
63DK36K3
36W 60° 3000K
3978lm
1681mm
Standard
Dimmable
Emergency

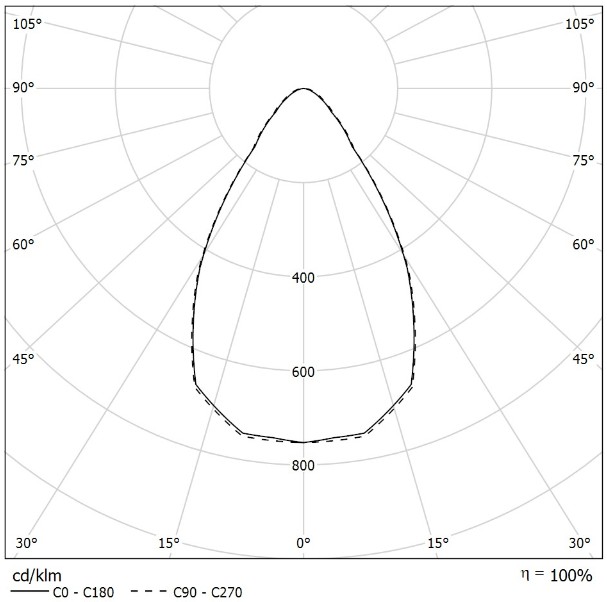

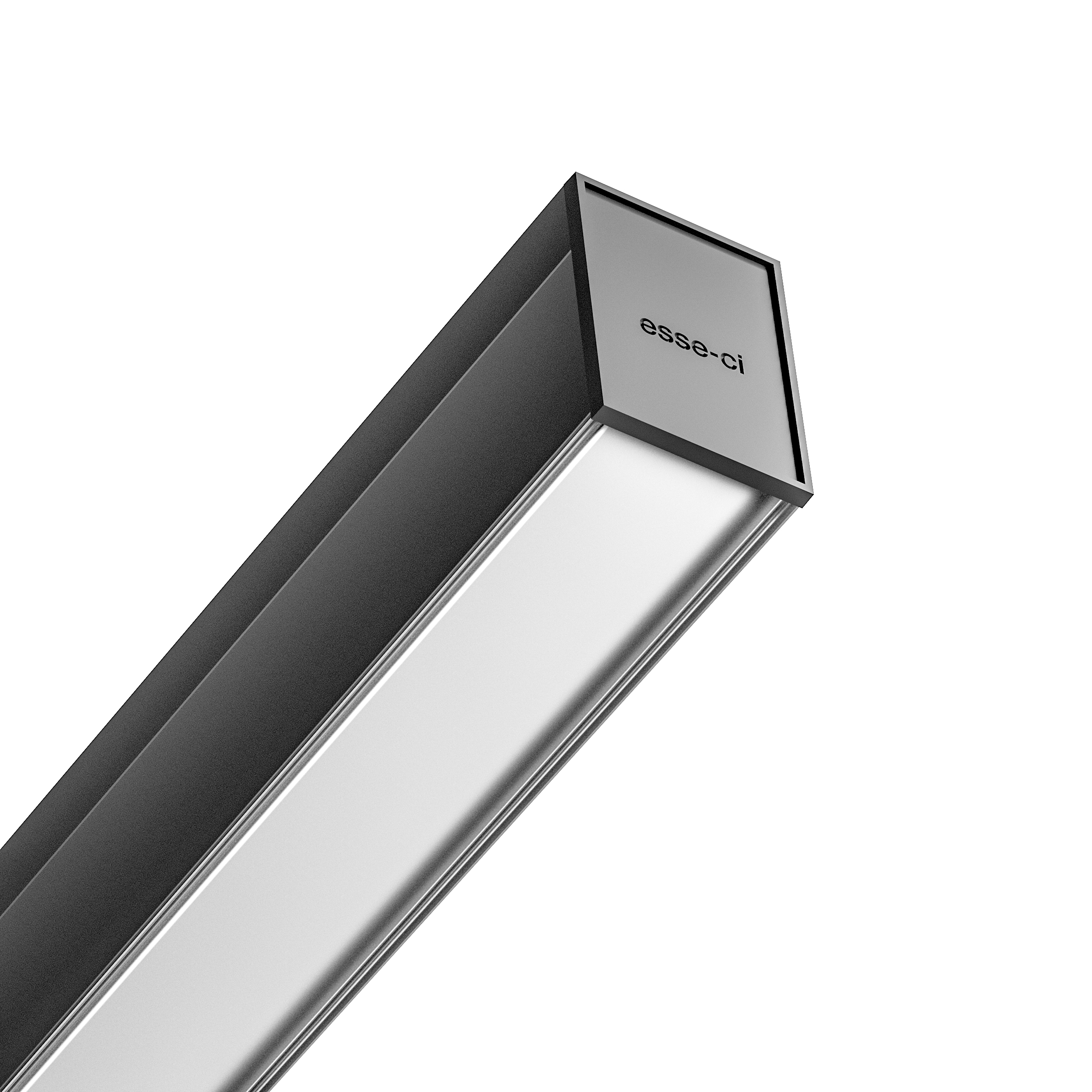

MAKROT CLD Low Power
MAKROT
TECHNICAL DRAWING
Optics
Transparent PMMA diffuser with CLD film UGR<19.
Equipped with EUROSTANDARD connector.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
63CLD24K4
24W 4000K
2966lm
1123mm
Standard
Dimmable
Emergency
63CLD30K4
30W 4000K
3707lm
1403mm
Standard
Dimmable
Emergency
63CLD36K4
36W 4000K
4448lm
1683mm
Standard
Dimmable
Emergency
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
63CLD24K3
24W 3000K
2877lm
1123mm
Standard
Dimmable
Emergency
63CLD30K3
30W 3000K
3595lm
1403mm
Standard
Dimmable
Emergency
63CLD36K3
36W 3000K
4314lm
1683mm
Standard
Dimmable
Emergency
MAKROT CLD High Power
MAKROT
TECHNICAL DRAWING
Optics
Transparent PMMA diffuser with CLD film UGR<19.
Equipped with EUROSTANDARD connector.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
63CLD45K4HP
45W 4000K
5418lm
1123mm
Standard
Dimmable
Emergency
63CLD57K4HP
57W 4000K
6722lm
1403mm
Standard
Dimmable
Emergency
63CLD68K4HP
68W 4000K
8127lm
1683mm
Standard
Dimmable
Emergency
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
63CLD45K3HP
45W 3000K
5255lm
1123mm
Standard
Dimmable
Emergency
63CLD57K3HP
57W 3000K
6520lm
1403mm
Standard
Dimmable
Emergency
63CLD68K3HP
68W 3000K
7883lm
1683mm
Standard
Dimmable
Emergency

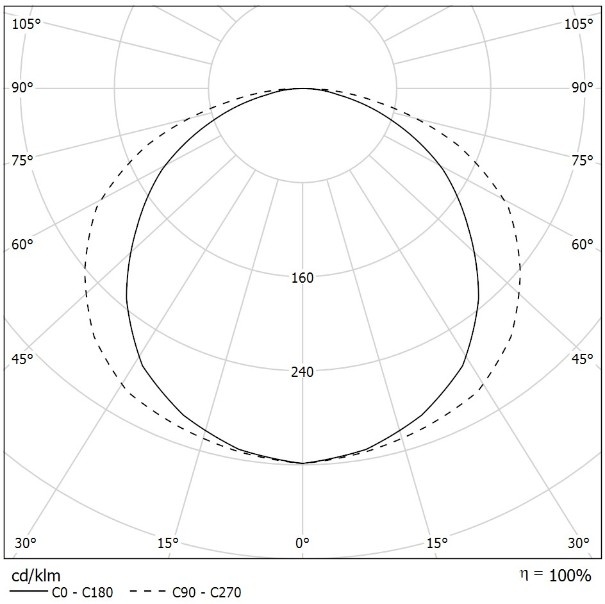

MAKROT PG Low Power
MAKROT
TECHNICAL DRAWING
Optics
Satin PMMA diffuser UGR<22.
Equipped with EUROSTANDARD connector.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
63PG24K4
24W 4000K
2912lm
1123mm
Standard
Dimmable
Emergency
63PG30K4
30W 4000K
3640lm
1403mm
Standard
Dimmable
Emergency
63PG36K4
36W 4000K
4367lm
1683mm
Standard
Dimmable
Emergency
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
63PG24K3
24W 3000K
2824lm
1123mm
Standard
Dimmable
Emergency
63PG30K3
30W 3000K
3530lm
1403mm
Standard
Dimmable
Emergency
63PG36K3
36W 3000K
4235lm
1683mm
Standard
Dimmable
Emergency
MAKROT PG High Power
MAKROT
TECHNICAL DRAWING
Optics
Satin PMMA diffuser UGR<22.
Equipped with EUROSTANDARD connector.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
63PG45K4HP
45W 4000K
5379lm
1123mm
Standard
Dimmable
Emergency
63PG57K4HP
57W 4000K
6723lm
1403mm
Standard
Dimmable
Emergency
63PG68K4HP
68W 4000K
8068lm
1683mm
Standard
Dimmable
Emergency
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
63PG45K3HP
45W 3000K
5217lm
1123mm
Standard
Dimmable
Emergency
63PG57K3HP
57W 3000K
6521lm
1403mm
Standard
Dimmable
Emergency
63PG68K3HP
68W 3000K
7824lm
1683mm
Standard
Dimmable
Emergency

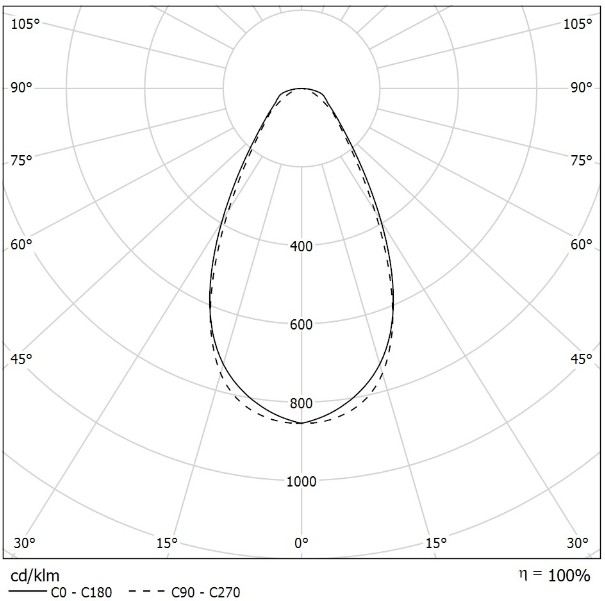

MAKROT PC 60°
MAKROT
TECHNICAL DRAWING
Optics
PMMA lens 60°.
Equipped with EUROSTANDARD connector.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
63PC44K460
44W 4000K High Power
7060lm
1128mm
Standard
Dimmable
Emergency
63PC66K460
60W 4000K High Power
10560lm
1688mm
Standard
Dimmable
Emergency
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
63PC44K360
44W 3000K High Power
6600lm
1128mm
Standard
Dimmable
Emergency
63PC66K360
60W 3000K High Power
9900lm
1688mm
Standard
Dimmable
Emergency

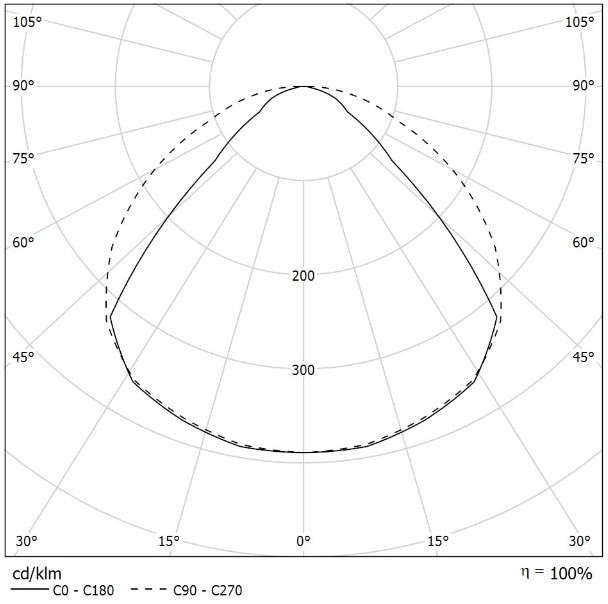

MAKROT PC 110°
MAKROT
TECHNICAL DRAWING
Optics
PMMA lens 110°.
Equipped with EUROSTANDARD connector.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
63PC44K4110
44W 4000K High Power
7060lm
1128mm
Standard
Dimmable
Emergency
63PC66K4110
60W 4000K High Power
10560lm
1688mm
Standard
Dimmable
Emergency
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
63PC44K3110
44W 3000K High Power
6600lm
1128mm
Standard
Dimmable
Emergency
63PC66K3110
60W 3000K High Power
9900lm
1688mm
Standard
Dimmable
Emergency

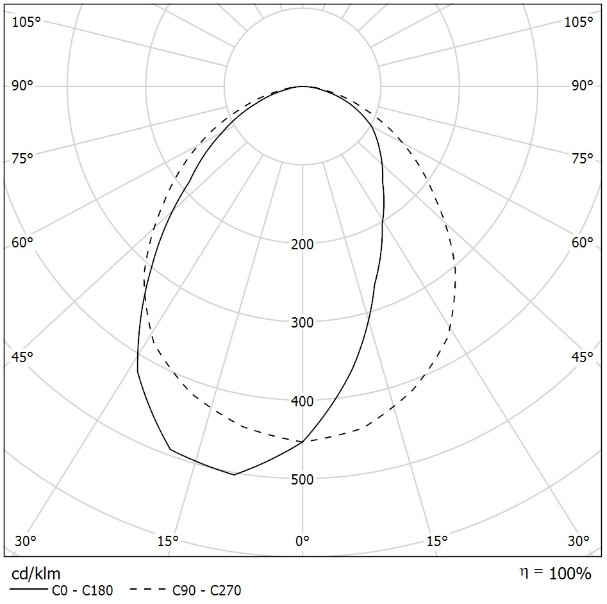

MAKROT PC ASYMMETRIC
MAKROT
TECHNICAL DRAWING
Optics
Asymmetric PMMA lens.
Equipped with EUROSTANDARD connector.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
63AS44K4
44W 4000K High Power
7060lm
1128mm
Standard
Dimmable
Emergency
63AS66K4
60W 4000K High Power
10560lm
1688mm
Standard
Dimmable
Emergency
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
63AS44K4
44W 3000K High Power
6600lm
1128mm
Standard
Dimmable
Emergency
63AS66K4
60W 3000K High Power
9900lm
1688mm
Standard
Dimmable
Emergency

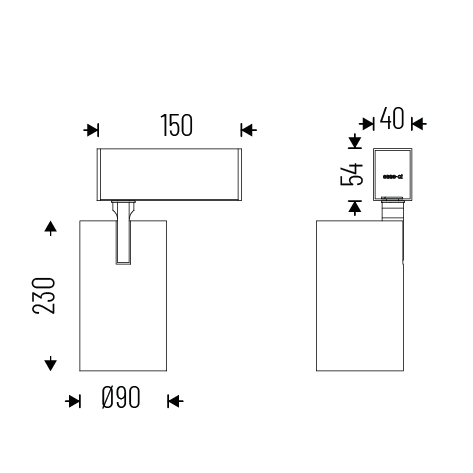

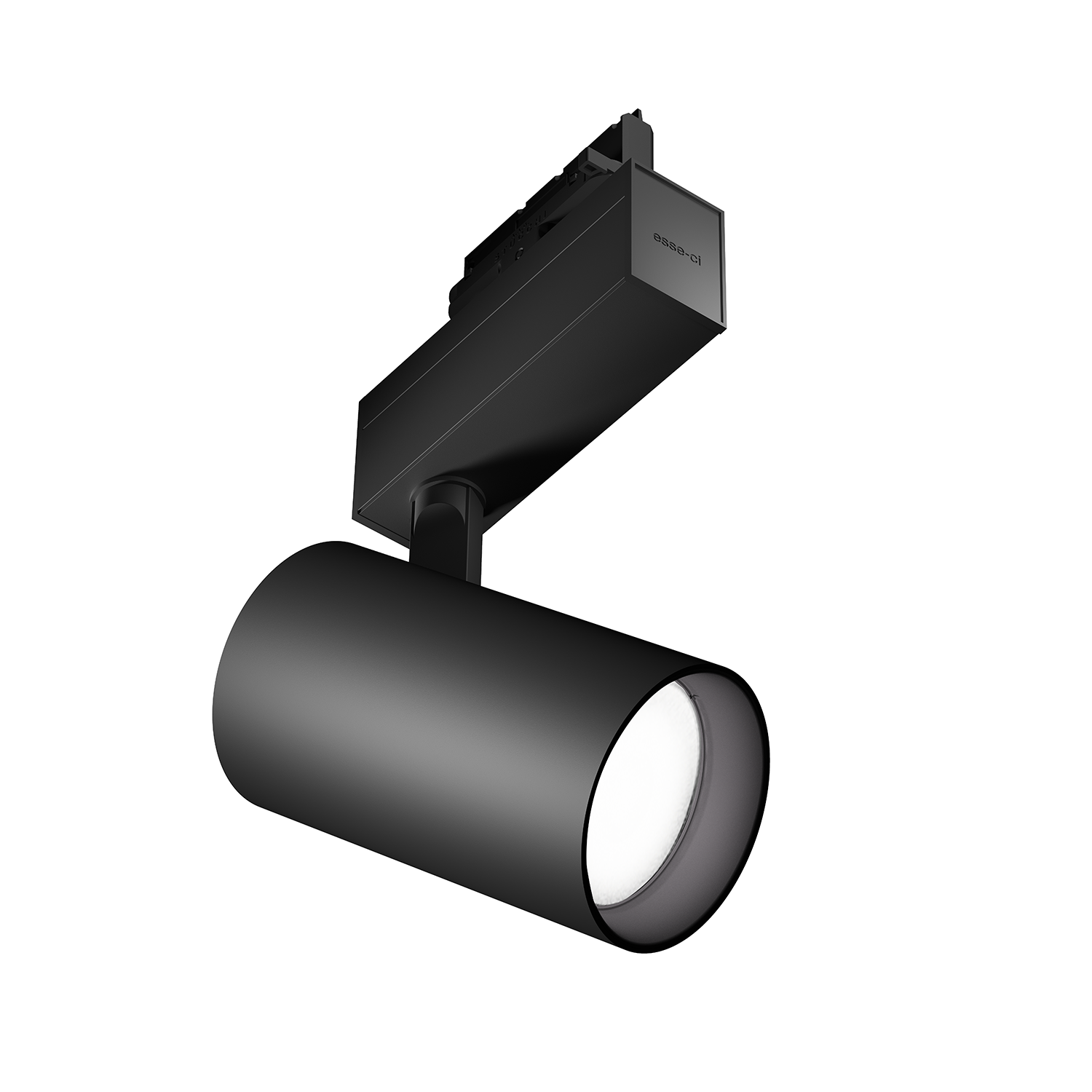

MAKROT SPOT
MAKROT
TECHNICAL DRAWING
Optics
Linear luminaire with PMMA lens spots

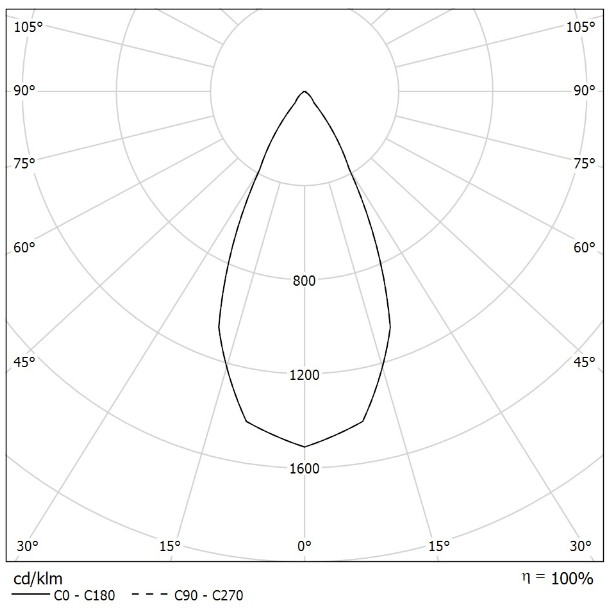

available beam angles: 15° – 24° – 36° – 50° – 70°.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
63SP24K415
24W 15° 4000K
3640lm
Ø 90mm
Standard
Dimmable
63SP24K424
24W 24° 4000K
3640lm
Ø 90mm
Standard
Dimmable
63SP24K436
24W 36° 4000K
3640lm
Ø 90mm
Standard
Dimmable
63SP24K450
24W 50° 4000K
3640lm
Ø 90mm
Standard
Dimmable
63SP24K470
24W 70° 4000K
3640lm
Ø 90mm
Standard
Dimmable
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
63SP24K315
24W 15° 3000K
3500lm
Ø 90mm
Standard
Dimmable
63SP24K324
24W 24° 3000K
3500lm
Ø 90mm
Standard
Dimmable
63SP24K336
24W 36° 3000K
3500lm
Ø 90mm
Standard
Dimmable
63SP24K350
24W 50° 3000K
3500lm
Ø 90mm
Standard
Dimmable
63SP24K370
24W 70° 3000K
3500lm
Ø 90mm
Standard
Dimmable

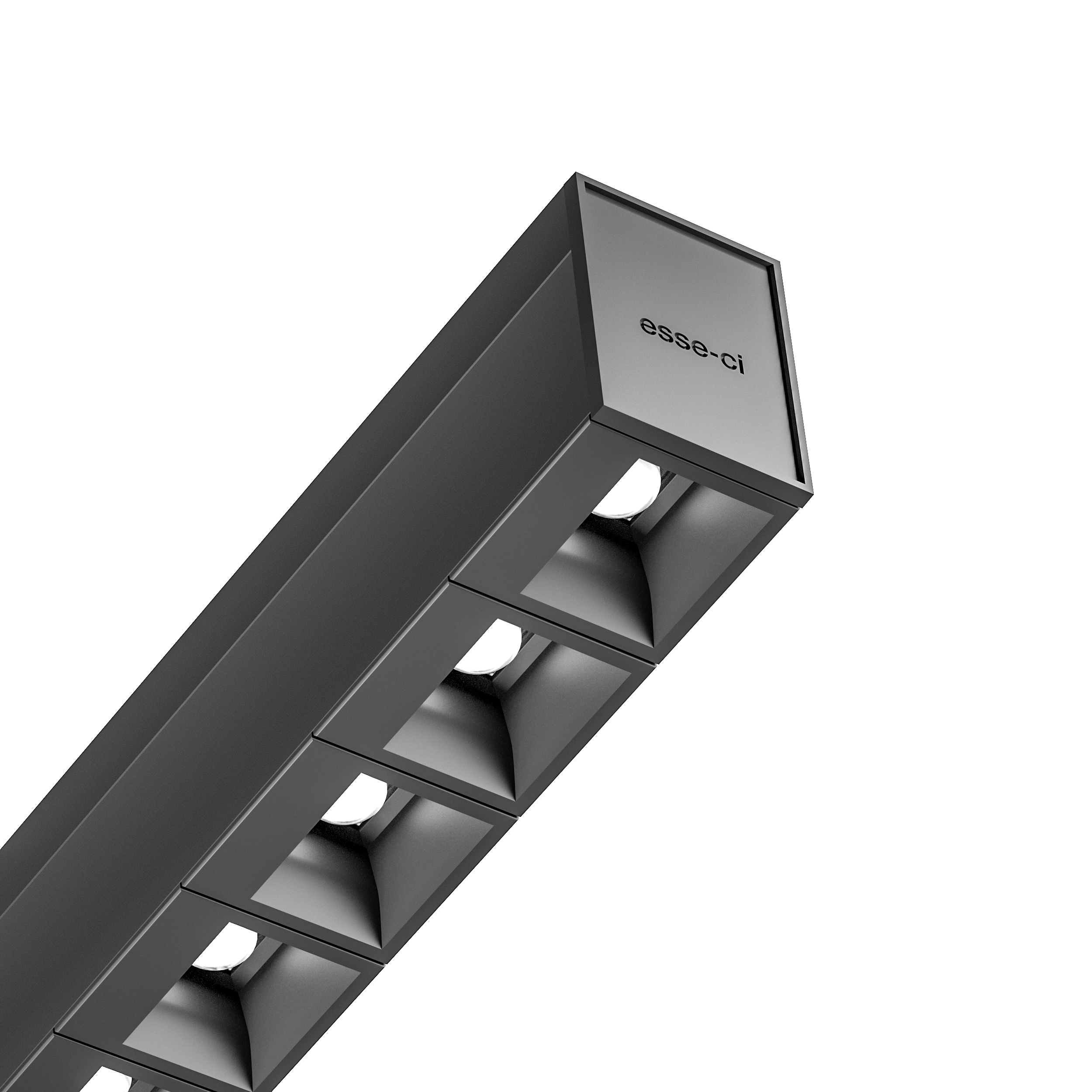

MAKROT FLY EYES
MAKROT
TECHNICAL DRAWING
Optics
Linear luminaire with Fly Eyes shade module
WQ (wide flood square) or WW (wall washer emission) included. Equipped with EUROSTANDARD connector.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
63WQ17K4
17W 4000K
1512lm
283mm
Standard
Dimmable
63WQ34K4
34W 4000K
3024lm
563mm
Standard
Dimmable
63WW17K4
17W 4000K
1512lm
283mm
Standard
Dimmable
63WW34K4
34W 4000K
3024lm
563mm
Standard
Dimmable
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
63WQ17K3
17W 3000K
1512lm
283mm
Standard
Dimmable
63WQ34K3
34W 3000K
3024lm
563mm
Standard
Dimmable
63WW17K3
17W 3000K
1512lm
283mm
Standard
Dimmable
63WW34K3
34W 3000K
3024lm
563mm
Standard
Dimmable

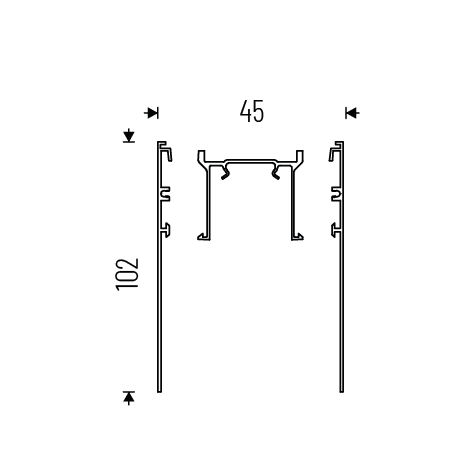

MAKROT PRO
MAKROT
TECHNICAL DRAWING

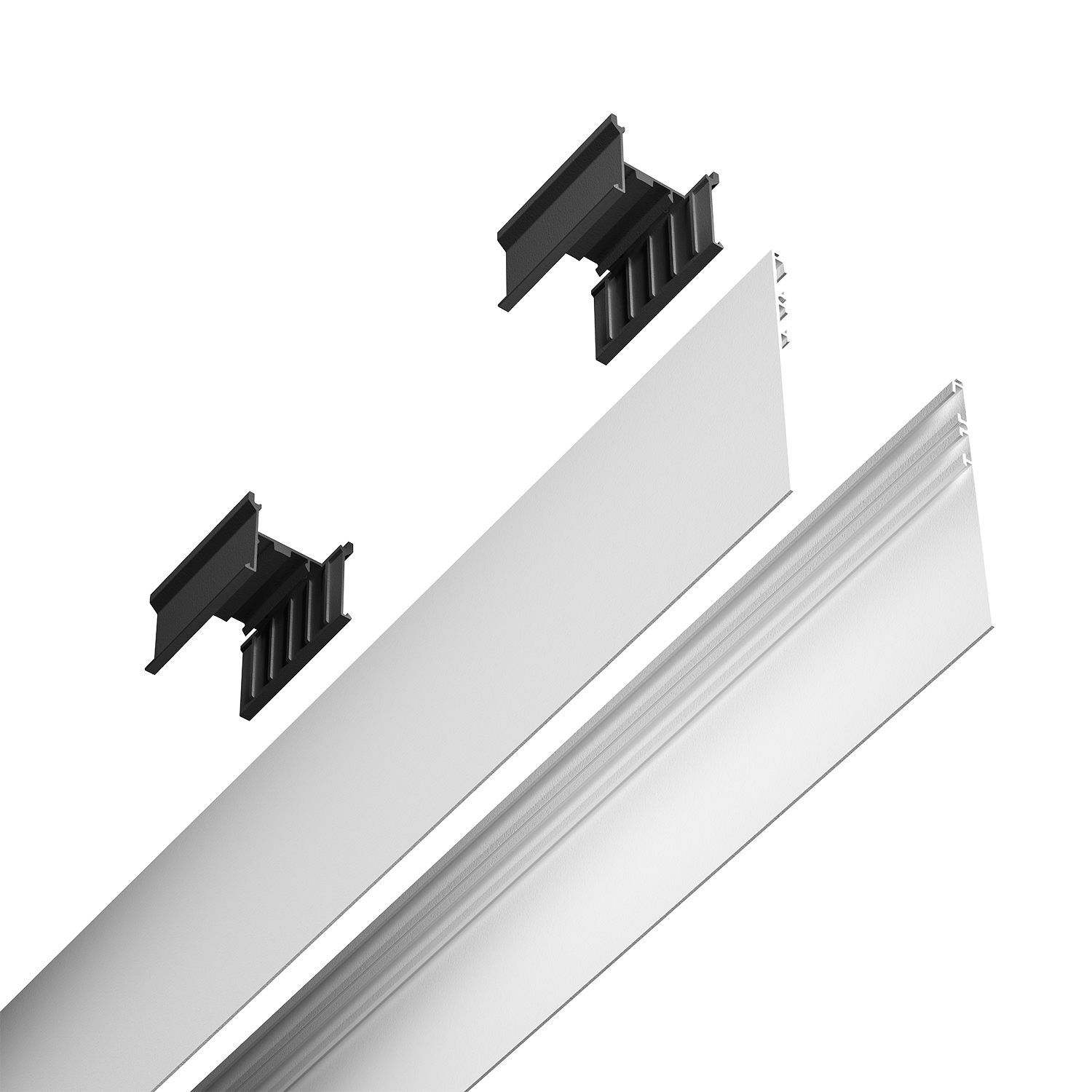

Aluminium cover for MAKROT linear modules, complete with plastic clips for attachment to the three-phase electrified track.
Datasheets
code
flux
size
wiring
datasheet
specification items
63AA1000
1000mm
No
63AA2000
2000mm
No
