GROOVE DISPLAY IP54

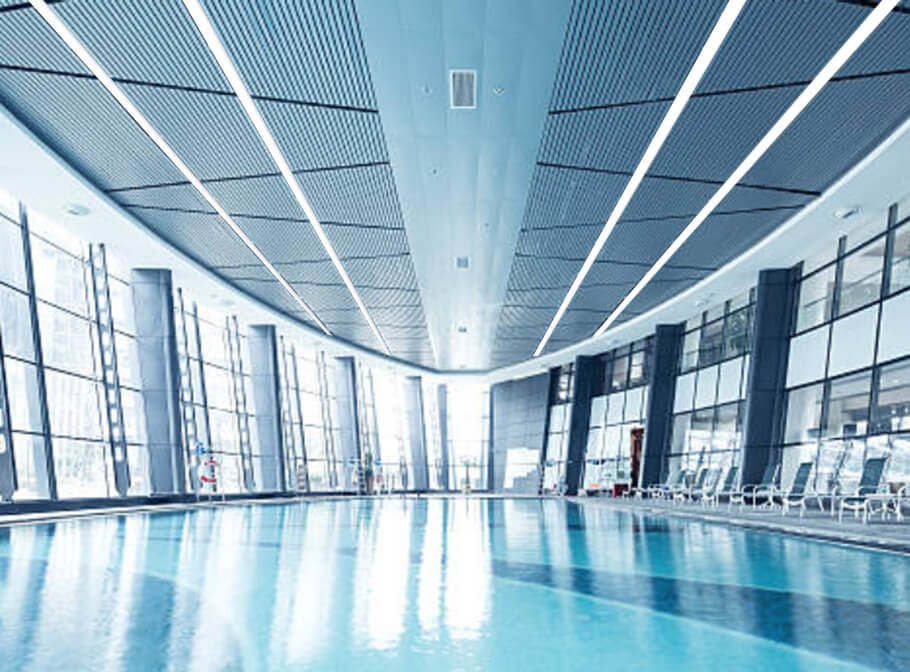

GROOVE DISPLAY IP54 is designed specifically for recessed applications that demand high ingress protection against dust and moisture. Perfectly complimenting the interior GROOVE collection, it can be installed either as a single luminaire or in continuous rows, allowing designers to freely create stunning solutions. The aluminum body and the flexible diffuser with coextruded gaskets guarantee maximum performance, achieving an IP54 protection rating, making the collection ideal for industrial and commercial applications, even in protected outdoors.
Technical features
Optics
Body
Legal references
Certifications
On Request
Colors
- Built-in driver
- 3000K/4000K
- CRI>90
- Eye safety: RG0/RG1
- Mac Adams 3
- L80/B20 >80.000h
- IP 54
- Direct emission
- Diffuser in antistatic satin methacrylate, for homogeneous emission UGR<22
Aluminum with epoxy powder coating.
In compliance with the safety standards EN 60 598-1 and UNI EN 12464-1 (lighting for working places).
- CE Conformity
- Energy efficiency C
- 5 years warranty
- DALI – code D
- Bluetooth – code BT*
- Emergency 1 hr – code EM
- Emergency 3 hrs – code EM3H*
- 2700K – code K27*
- 5000K – code K5*
* Where available
-
White RAL 9003 - code B
-
Black RAL 9005 - code C8
-
Other Colors - on request
Technical features
- Built-in driver
- 3000K/4000K
- CRI>90
- Eye safety: RG0/RG1
- Mac Adams 3
- L80/B20 >80.000h
- IP 54
Optics
- Direct emission
- Diffuser in antistatic satin methacrylate, for homogeneous emission UGR<22
Body
Aluminum with epoxy powder coating.
Legal references
In compliance with the safety standards EN 60 598-1 and UNI EN 12464-1 (lighting for working places).
Certifications
- CE Conformity
- Energy efficiency C
- 5 years warranty
On Request
- DALI – code D
- Bluetooth – code BT*
- Emergency 1 hr – code EM
- Emergency 3 hrs – code EM3H*
- 2700K – code K27*
- 5000K – code K5*
* Where available
GROOVE DISPLAY IP54
versions
Low power
High power
GROOVE DISPLAY IP54 High Power
GROOVE DISPLAY IP54
GROOVE DISPLAY IP54 Download
TECHNICAL DRAWING
Optics
Direct recessed emission.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
43AA45K4HPF54
45W 4000K
4706lm
1130mm
Standard
Dimmable
Emergency
43AA57K4HPF54
57W 4000K
5961lm
1410mm
Standard
Dimmable
Emergency
43AA68K4HPF54
68W 4000K
7112lm
1690mm
Standard
Dimmable
Emergency
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
43AA45K3HPF54
45W 3000K
4381lm
1130mm
Standard
Dimmable
Emergency
43AA57K3HPF54
57W 3000K
5548lm
1410mm
Standard
Dimmable
Emergency
43AA68K3HPF54
68W 3000K
6619lm
1690mm
Standard
Dimmable
Emergency
GROOVE DISPLAY IP54 Low Power
GROOVE DISPLAY IP54
GROOVE DISPLAY IP54 Download
TECHNICAL DRAWING
Optics
Direct recessed emission.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
43AA24K4F54
24W 4000K
2558lm
1130mm
Standard
Dimmable
Emergency
43AA30K4F54
30W 4000K
3197lm
1410mm
Standard
Dimmable
Emergency
43AA36K4F54
36W 4000K
4476lm
1690mm
Standard
Dimmable
Emergency
43AA42K4F54
42W 4000K
5116lm
1970mm
Standard
Dimmable
Emergency
43AA48K4F54
48W 4000K
5755lm
2250mm
Standard
Dimmable
Emergency
43AA54K4F54
54W 4000K
6395lm
2530mm
Standard
Dimmable
Emergency
43AA60K4F54
60W 4000K
7034lm
2810mm
Standard
Dimmable
Emergency
43AA66K4F54
66W 4000K
2381lm
3090mm
Standard
Dimmable
Emergency
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
43AA24K3F54
24W 3000K
2381lm
1130mm
Standard
Dimmable
Emergency
43AA30K3F54
30W 3000K
2977lm
1410mm
Standard
Dimmable
Emergency
43AA36K3F54
36W 3000K
3572lm
1690mm
Standard
Dimmable
Emergency
43AA42K3F54
42W 3000K
4167lm
1970mm
Standard
Dimmable
Emergency
43AA48K3F54
48W 3000K
4763lm
2250mm
Standard
Dimmable
Emergency
43AA54K3F54
54W 3000K
5358lm
2530mm
Standard
Dimmable
Emergency
43AA60K3F54
60W 3000K
5954lm
2810mm
Standard
Dimmable
Emergency
43AA66K3F54
66W 3000K
6549lm
3090mm
Standard
Dimmable
Emergency
