The DPL technology for controlled UGR combined with the additional raster for glare control make the product perfect for working space.

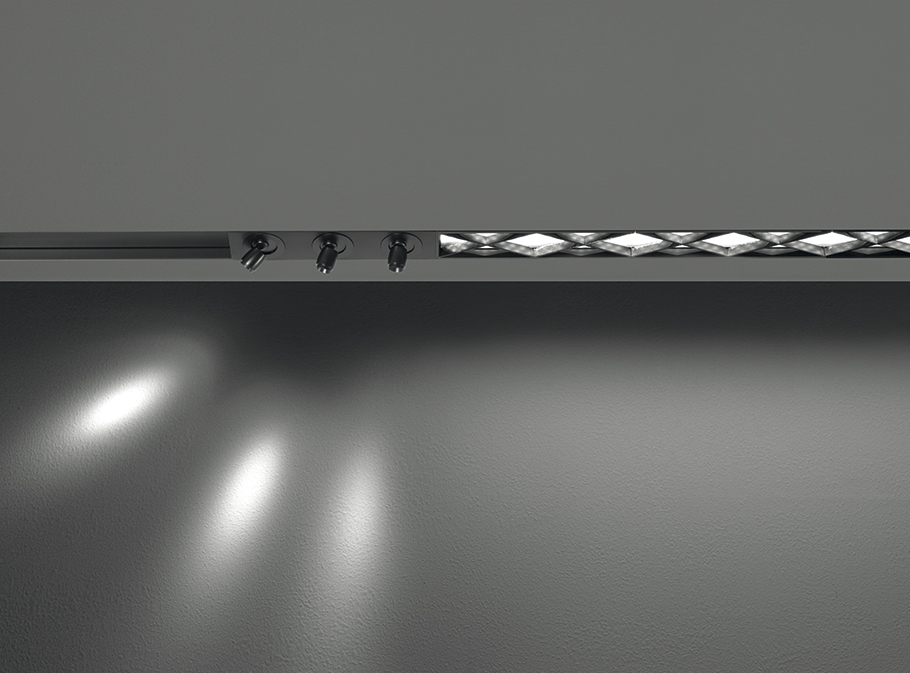

Available as a stand-alone product, configurable as a system, or in the FREE version that allows you to use the luminous modules in a versatile way coupling them with lamp bodies of different sizes.
DIAMANTE
DIAMANTE comes from passion for technique and design. It’s an exclusive line that preforms light control and integrates performance and flexibility into a single product.The DPL technology for controlled UGR combined with the additional raster for glare control make the product perfect for working space.
Available as a stand-alone product, configurable as a system, or in the FREE version that allows you to use the luminous modules in a versatile way coupling them with lamp bodies of different sizes.
Specifications
Optics
Body
Legal references
On request
Specifications
Integrated driver
Colour temperature: 3000K/4000K
CRI>90
McAdams 3
Life Time: L80/B10 >50.000h
5 years complete warranty
Eye safety: RG0/RG1 in accordance with EN62471:2009
Optics
DPL technology diffuser UGR <19 and additional raster for glare control in
injection-molded vacuum metallized polycarbonate.
Body
Aluminum extruded body with epoxy powder coating.
Legal references
In compliance with the safety standards EN 60 598-1 and UNI EN 12464-1 (lighting for working places).
On request
Wiring DALI dimmable – Code: D (verify the version available)
Wiring with emergency kit – Code: EM for 1 hour / EM3H for 3 hours
(verify the version available)
Driver Bluetooth – Code: BT (verify the version available)
Show all ACHIEVEMENTS
versions available
versions available
DIAMANTE LOW POWER
technical data
Optics
Optics
DPL technology diffuser UGR <19 and additional raster for glare control in injection-molded vacuum polycarbonate. Luminaire complete with end caps.
Datasheets 4000K
code
flux
size
wiring
datasheet
specification items
82DPL12K4
12W 4000K
984lm
577mm
Standard
Dimmable
Emergency
82DPL18K4
18W 4000K
1476lm
863mm
Standard
Dimmable
Emergency
82DPL24K4
24W 4000K
1968lm
1149mm
Standard
Dimmable
Emergency
82DPL30K4
30W 4000K
2460lm
1435mm
Standard
Dimmable
Emergency
82DPL36K4
36W 4000K
2952lm
1721mm
Standard
Dimmable
Emergency
82DPL42K4
42W 4000K
3360lm
2007mm
Standard
Dimmable
Emergency
82DPL48K4
48W 4000K
3936lm
2293mm
Standard
Dimmable
Emergency
82DPL54K4
54W 4000K
4428lm
2579mm
Standard
Dimmable
Emergency
82DPL60K4
60W 4000K
4920lm
2865mm
Standard
Dimmable
Emergency
82DPL66K4
66W 4000K
5412lm
3151mm
Standard
Dimmable
Emergency
Bluetooth
Datasheets 3000K
code
flux
size
wiring
datasheet
specification items
82DPL12K3
12W 3000K
905lm
577mm
Standard
Dimmable
Emergency
82DPL18K3
18W 3000K
1358lm
863mm
Standard
Dimmable
Emergency
82DPL24K3
24W 3000K
1811lm
1149mm
Standard
Dimmable
Emergency
82DPL30K3
30W 3000K
2263lm
1435mm
Standard
Dimmable
Emergency
82DPL36K3
36W 3000K
2716lm
1721mm
Standard
Dimmable
Emergency
82DPL42K3
42W 3000K
3091lm
2007mm
Standard
Dimmable
Emergency
82DPL48K3
48W 3000K
3621lm
2293mm
Standard
Dimmable
Emergency
82DPL54K3
54W 3000K
4074lm
2579mm
Standard
Dimmable
Emergency
82DPL60K3
60W 3000K
4526lm
2865mm
Standard
Dimmable
Emergency
82DPL66K3
66W 3000K
4979lm
3151mm
Standard
Dimmable
Emergency
DIAMANTE LOW POWER Double Emission
technical data
Optics
Optics
DPL technology diffuser UGR <19 and additional raster for glare control in injection-molded vacuum polycarbonate. Luminaire complete with end caps.
Datasheets 4000K
code
flux
size
wiring
datasheet
specification items
82DI30DPLK4
30W 4000K
2618lm
1149mm
Standard
Dimmable
Emergency
82DI36DPLK4
36W 4000K
3110lm
1435mm
Standard
Dimmable
Emergency
82DI48DPLK4
48W 4000K
4252lm
1721mm
Standard
Dimmable
Emergency
82DI54DPLK4
54W 4000K
4660lm
2007mm
Standard
Dimmable
Emergency
82DI72DPLK4
72W 4000K
6536lm
2293mm
Standard
Dimmable
Emergency
82DI78DPLK4
78W 4000K
7028lm
2579mm
Standard
Dimmable
Emergency
82DI84DPLK4
84W 4000K
7520lm
2865mm
Standard
Dimmable
Emergency
82DI90DPLK4
90W 4000K
8012lm
3151mm
Standard
Dimmable
Emergency
Datasheets 3000K
code
flux
size
wiring
datasheet
specification items
82DI30DPLK3
30W 3000K
2408lm
1149mm
Standard
Dimmable
Emergency
82DI36DPLK3
36W 3000K
2860lm
1435mm
Standard
Dimmable
Emergency
82DI48DPLK3
48W 3000K
3910lm
1721mm
Standard
Dimmable
Emergency
82DI54DPLK3
54W 3000K
4285lm
2007mm
Standard
Dimmable
Emergency
82DI72DPLK3
72W 3000K
6009lm
2293mm
Standard
Dimmable
Emergency
82DI78DPLK3
78W 3000K
6462lm
2579mm
Standard
Dimmable
Emergency
82DI84DPLK3
84W 3000K
6914lm
2865mm
Standard
Dimmable
Emergency
82DI90DPLK3
90W 3000K
7367lm
3151mm
Standard
Dimmable
Emergency
DIAMANTE HIGH POWER
technical data
Optics
Optics
DPL technology diffuser UGR <19 and additional raster for glare control in injection-molded vacuum polycarbonate. Luminaire complete with end caps.
Datasheets 4000K
code
flux
size
wiring
datasheet
specification items
82DPL40K4HP
40W 4000K
3280lm
1149mm
Standard
Dimmable
Emergency
82DPL50K4HP
50W 4000K
4100lm
1435mm
Standard
Dimmable
Emergency
82DPL60K4HP
60W 4000K
4920lm
1721mm
Standard
Dimmable
Emergency
Datasheets 3000K
code
flux
size
wiring
datasheet
specification items
82DPL40K3HP
40W 3000K
3018lm
1149mm
Standard
Dimmable
Emergency
82DPL50K3HP
50W 3000K
3772lm
1435mm
Standard
Dimmable
Emergency
82DPL60K3HP
60W 3000K
4526lm
1721mm
Standard
Dimmable
Emergency
DIAMANTE HIGH POWER Double Emission
technical data
Optics
Optics
DPL technology diffuser UGR <19 and additional raster for glare control in injection-molded vacuum polycarbonate. Luminaire complete with end caps.
Datasheets 4000K
code
flux
size
wiring
datasheet
specification items
82DI46DPLK4HP
46W 4000K
3930lm
1149mm
Standard
Dimmable
Emergency
82DI56DPLK4HP
56W 4000K
4750lm
1435mm
Standard
Dimmable
Emergency
82DI72DPLK4HP
72W 4000K
6114lm
1721mm
Standard
Dimmable
Emergency
Datasheets 3000K
code
flux
size
wiring
datasheet
specification items
82DI46DPLK3HP
46W 3000K
3615lm
1149mm
Standard
Dimmable
Emergency
82DI56DPLK3HP
56W 3000K
4369lm
1435mm
Standard
Dimmable
Emergency
82DI72DPLK3HP
72W 3000K
5720lm
1721mm
Standard
Dimmable
Emergency
