Epoxy powder-coated aluminium.
BIWA
BIWA is high-performance wall-mounted system with an IP40 rating, ideal for high-level installations in prestigious architectural contexts. Characterised by excellent optical flexibility, the powder-coated aluminium body allows for wall-washer emissions or dual-emission (direct/indirect) configurations for the diffused illumination of ceilings and frescoes. The system also enables the integration of on-board spot modules with dedicated optics (from 15° to 50°) for effective accent lighting. Equipped with high-efficiency LED sources, it guarantees excellent colour rendering and optimal visual comfort with UGR <22 indices.
TECHNICAL FEATURES
OPTICS
BODY
LEGAL REFERENCES
CERTIFICATIONS
ON REQUEST
Colors
- 3000K/4000K
- CRI>90
- Eye safety: RG0/RG1
- MacAdam 3
- L90/B10>50.000h
- -20°C / +45°C
- IP40
- Direct emission
- Clear diffuser UGR<22 for direct/indirect emission
- Spot with PMMA lenses with beam angles: 15° – 24° – 36° – 50°. Direct emission UGR<19. Free installation on BIWA PG.
The luminaires comply with the safety standards EN 60598-1 and UNI EN 12464-1 for workplace lighting.
- CE compliant
- Energy class C
- 5-year warranty
- DALI – code D
- Bluetooth – code BT
- Emergency 1 hr – code EM
- Emergency 1 hr DALI – code DEM
- Emergency 3 hrs – code EM3H
- 2700K – code K27*
-
White RAL 9016 – code W
-
Black RAL 9005 – code BK
-
Other colours – on request
TECHNICAL FEATURES
- 3000K/4000K
- CRI>90
- Eye safety: RG0/RG1
- MacAdam 3
- L90/B10>50.000h
- -20°C / +45°C
- IP40
OPTICS
- Direct emission
- Clear diffuser UGR<22 for direct/indirect emission
- Spot with PMMA lenses with beam angles: 15° – 24° – 36° – 50°. Direct emission UGR<19. Free installation on BIWA PG.
BODY
Epoxy powder-coated aluminium.
LEGAL REFERENCES
The luminaires comply with the safety standards EN 60598-1 and UNI EN 12464-1 for workplace lighting.
CERTIFICATIONS
- CE compliant
- Energy class C
- 5-year warranty
ON REQUEST
- DALI – code D
- Bluetooth – code BT
- Emergency 1 hr – code EM
- Emergency 1 hr DALI – code DEM
- Emergency 3 hrs – code EM3H
- 2700K – code K27*
BIWA
versions
BIWA High Power
BIWA
TECHNICAL DRAWING

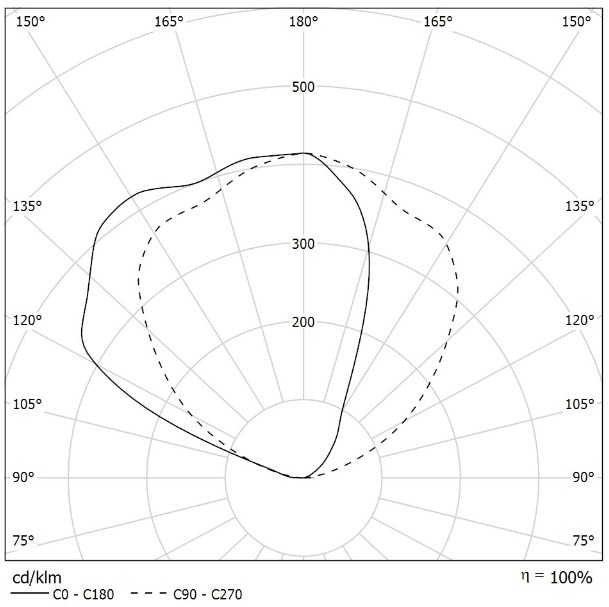

Optics
Clear PMMA diffuser UGR<22 for direct emission.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
98DR12K4HP
12W 4000K
1960lm
290mm
Standard
Dimmable
Emergency
98DR24K4HP
24W 4000K
3912lm
570mm
Standard
Dimmable
Emergency
98DR36K4HP
36W 4000K
5868lm
850mm
Standard
Dimmable
Emergency
98DR48K4HP
48W 4000K
7824lm
1130mm
Standard
Dimmable
Emergency
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
98DR12K3HP
12W 3000K
1823lm
290mm
Standard
Dimmable
Emergency
98DR24K3HP
24W 3000K
3638lm
570mm
Standard
Dimmable
Emergency
98DR36K3HP
36W 3000K
5457lm
850mm
Standard
Dimmable
Emergency
98DR48K3HP
48W 3000K
7276lm
1130mm
Standard
Dimmable
Emergency
BIWA Extreme Power
BIWA
TECHNICAL DRAWING
Optics
Clear PMMA diffuser UGR<22 for direct emission.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
98DR21K4XP
21W 4000K
3783lm
290mm
Standard
Dimmable
Emergency
98DR43K4XP
43W 4000K
7740lm
570mm
Standard
Dimmable
Emergency
98DR64K4XP
64W 4000K
11520lm
850mm
Standard
Dimmable
Emergency
98DR86K4XP
86W 4000K
15480lm
1130mm
Standard
Dimmable
Emergency
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
98DR21K3XP
21W 3000K
3518lm
290mm
Standard
Dimmable
Emergency
98DR43K3XP
43W 3000K
7203lm
570mm
Standard
Dimmable
Emergency
98DR64K3XP
64W 3000K
10721lm
850mm
Standard
Dimmable
Emergency
98DR86K3XP
86W 3000K
14407lm
1130mm
Standard
Dimmable
Emergency
BIWA DOUBLE EMISSION High Power
BIWA
TECHNICAL DRAWING

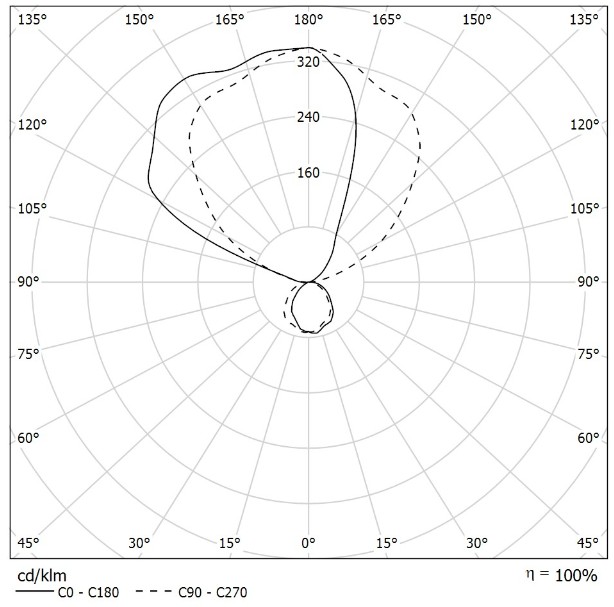

Optics
Clear PMMA diffuser UGR<22 for direct/indirect emission.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
98DI20K4HP
8+12W 4000K
2776lm
290mm
Standard
Dimmable
Emergency
98DI40K4HP
16+24W 4000K
5544lm
570mm
Standard
Dimmable
Emergency
98DI60K4HP
24+36W 4000K
8316lm
850mm
Standard
Dimmable
Emergency
98DI80K4HP
32+48W 4000K
11088lm
1130mm
Standard
Dimmable
Emergency
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
98DI20K3HP
8+12W 3000K
2582lm
290mm
Standard
Dimmable
Emergency
98DI40K3HP
16+24W 3000K
5156lm
570mm
Standard
Dimmable
Emergency
98DI60K3HP
24+36W 3000K
7734lm
850mm
Standard
Dimmable
Emergency
98DI80K3HP
32+48W 3000K
10312lm
1130mm
Standard
Dimmable
Emergency
BIWA DOUBLE EMISSION Extreme Power
BIWA
TECHNICAL DRAWING
Optics
Clear PMMA diffuser UGR<22 for direct/indirect emission.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
98DI26K4XP
5+21W 4000K
4293lm
290mm
Standard
Dimmable
Emergency
98DI53K4XP
10+43W 4000K
8760lm
570mm
Standard
Dimmable
Emergency
98DI79K4XP
15+64W 4000K
13050lm
850mm
Standard
Dimmable
Emergency
98DI106K4XP
20+86W 4000K
17520lm
1130mm
Standard
Dimmable
Emergency
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
98DI26K3XP
5+21W 3000K
3992lm
290mm
Standard
Dimmable
Emergency
98DI53K3XP
10+43W 3000K
8151lm
570mm
Standard
Dimmable
Emergency
98DI79K3XP
15+64W 3000K
12143lm
850mm
Standard
Dimmable
Emergency
98DI106K3XP
20+86W 3000K
16303lm
1130mm
Standard
Dimmable
Emergency
BIWA Spot
BIWA

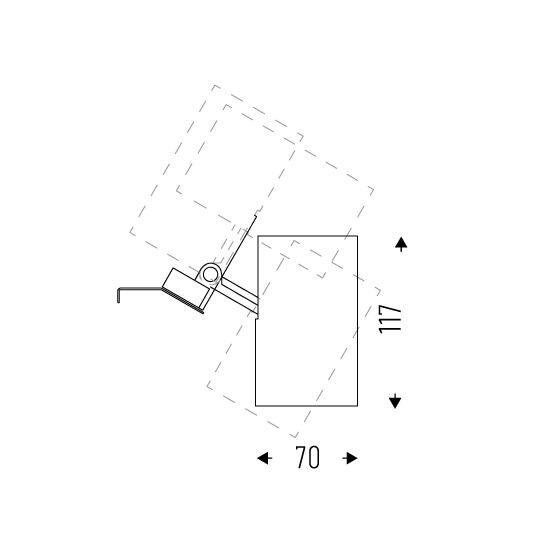

TECHNICAL DRAWING

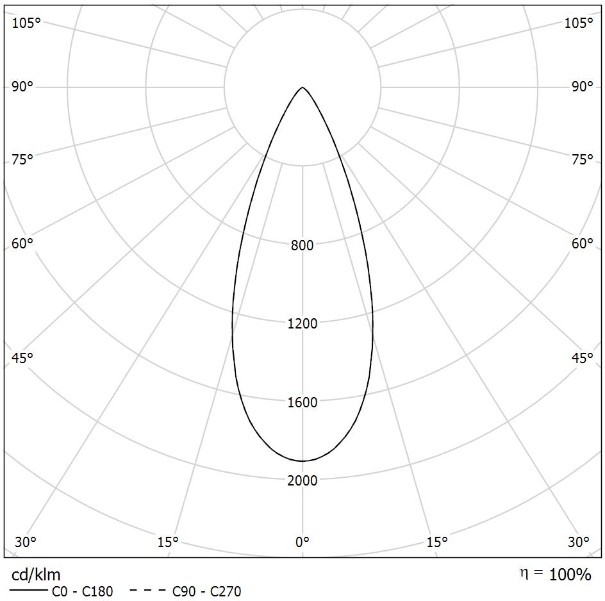

Optics
Spot with PMMA lenses with beam angles: 15° – 24° – 36° – 50°. Direct emission UGR<19. Free installation on BIWA PG.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
98PC14K415
14W 15° 4000K
2492lm
Ø70mm
Standard
Dimmable
98PC14K424
14W 24° 4000K
2492lm
Ø70mm
Standard
Dimmable
98PC14K436
14W 36° 4000K
2492lm
Ø70mm
Standard
Dimmable
98PC14K450
14W 50° 4000K
2492lm
Ø70mm
Standard
Dimmable
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
98PC14K315
14W 15° 3000K
2329lm
Ø70mm
Standard
Dimmable
98PC14K324
14W 24° 3000K
2329lm
Ø70mm
Standard
Dimmable
98PC14K336
14W 36° 3000K
2329lm
Ø70mm
Standard
Dimmable
98PC14K350
14W 50° 3000K
2329lm
Ø70mm
Standard
Dimmable
