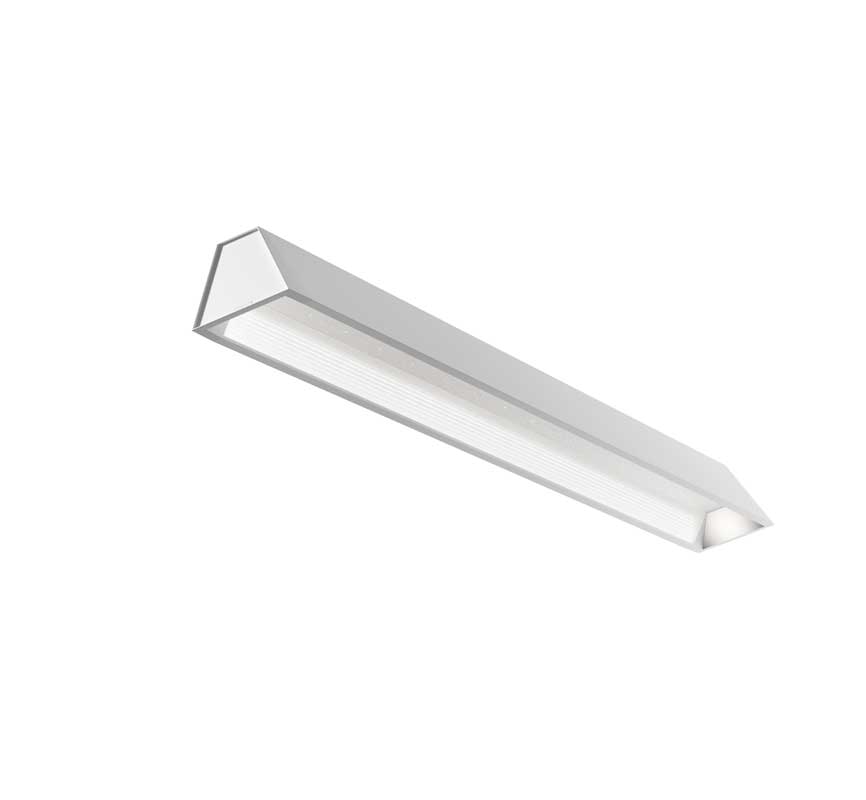

ALPHA

ALPHA is the innovative single or double emission solution for office lighting and professional areas. It stands out for the striking and original trapezoidal design aluminum body, that is able to enrich any environment, but also for an advanced and versatile technical section it’s suitable to satisfy different design needs. The Vertical Lens version, based on a latest generation optical refraction system with an elegant and discreet diffusion of light, is also available in the Plus version with UGR<16 controlled emission, thanks to polycarbonate lenses and transversal plates that prevent glare from any angle ensuring maximum visual comfort. The Soft Emission version is available with UGR<22 optic, ideal for crossing area and corridors, and with also the 15°-24°-36°-50° optic reflector spot module for accent light, which can be integrated into a modular system.

Specifications

Optics

Body

Legal references

On request

Built-in Driver
Colour temperature: 3000K/4000K
CRI>90
McAdams 3
Life Time: L80/B10 >50.000h
5 years complete warranty
Eye safety: RG0/RG1 in accordance with EN62471:2009

· Direct / indirect emission with CLD technology
diffuser (UGR<16).
· PG frosted diffuser UGR<22.
· Polycarbonate asymmetric lens.
· High Contrast lens.
· Continuous indirect emission.
· SPOT modules with internal aluminum reflectors
15° – 20° – 36° – 50° beam angles.

Aluminum extruded body with epoxy powder coating.

In compliance with the safety standards EN 60 598-1 and UNI EN 12464-1 (lighting for working places).

Wiring DALI dimmable – Code: D (verify the version available)
Wiring with emergency kit – Code: EM for 1 hour / EM3H for 3 hours
(verify the version available)
Wiring Bluetooth BT Easy connect – Code: BE
Colour Temperature 2700K – 6500K
ETL Ready

Specifications

Built-in Driver
Colour temperature: 3000K/4000K
CRI>90
McAdams 3
Life Time: L80/B10 >50.000h
5 years complete warranty
Eye safety: RG0/RG1 in accordance with EN62471:2009

· Direct / indirect emission with CLD technology
diffuser (UGR<16).
· PG frosted diffuser UGR<22.
· Polycarbonate asymmetric lens.
· High Contrast lens.
· Continuous indirect emission.
· SPOT modules with internal aluminum reflectors
15° – 20° – 36° – 50° beam angles.

Aluminum extruded body with epoxy powder coating.

In compliance with the safety standards EN 60 598-1 and UNI EN 12464-1 (lighting for working places).

Wiring DALI dimmable – Code: D (verify the version available)
Wiring with emergency kit – Code: EM for 1 hour / EM3H for 3 hours
(verify the version available)
Wiring Bluetooth BT Easy connect – Code: BE
Colour Temperature 2700K – 6500K
ETL Ready

DISEGNO TECNICO
Optic

PC lens for refracted emission UGR<19

Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
87VL20K4
20W 4000K
2140lm
1201mm
Dimmable
Emergency
Bluetooth
87VL30K4
30W 4000K
3210lm
1761mm
Dimmable
Emergency
Bluetooth
87VL40K4
40W 4000K
4280lm
2321mm
Dimmable
Emergency
Bluetooth
87VL50K4
50W 4000K
5350lm
2881mm
Dimmable
Emergency
Bluetooth
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
87VL20K3
20W 3000K
2040lm
1201mm
Dimmable
Emergency
Bluetooth
87VL30K3
30W 3000K
3060lm
1761mm
Dimmable
Emergency
Bluetooth
87VL40K3
40W 3000K
4080lm
2321mm
Dimmable
Emergency
Bluetooth
87VL50K3
50W 3000K
5100lm
2881mm
Dimmable
Emergency
Bluetooth
DISEGNO TECNICO
Optic

PC lens for refracted emission UGR<19.
Indirect emission with PMMA diffuser

Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
87DI32VLK4
20 + 12W 4000K
3424lm
1201mm
Dimmable
Emergency
Bluetooth
87DI42VLK4
30 + 12W 4000K
4494lm
1761mm
Dimmable
Emergency
Bluetooth
87DI54VLK4
40 + 24W 4000K
5778lm
2321mm
Dimmable
Emergency
Bluetooth
87DI74VLK4
50 + 24W 4000K
7918lm
2881mm
Dimmable
Emergency
Bluetooth
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
87DI32VLK3
20 + 12W 3000K
3264lm
1201mm
Dimmable
Emergency
Bluetooth
87DI42VLK3
30 + 12W 3000K
4284lm
1761mm
Dimmable
Emergency
Bluetooth
87DI54VLK3
40 + 24W 3000K
5508lm
2321mm
Dimmable
Emergency
Bluetooth
87DI74VLK3
50 + 24W 3000K
7548lm
2881mm
Dimmable
Emergency
Bluetooth
DISEGNO TECNICO
Optic

PC lens for refracted emission UGR<16 with transversal elements for high glare control

Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
87VLP20K4
20W 4000K
2100lm
1201mm
Dimmable
Emergency
Bluetooth
87VLP30K4
30W 4000K
3150lm
1761mm
Dimmable
Emergency
Bluetooth
87VLP40K4
40W 4000K
4200lm
2321mm
Dimmable
Emergency
Bluetooth
87VLP50K4
50W 4000K
5250lm
2881mm
Dimmable
Emergency
Bluetooth
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
87VLP20K3
20W 3000K
2020lm
1201mm
Dimmable
Emergency
Bluetooth
87VLP30K3
30W 3000K
3030lm
1761mm
Dimmable
Emergency
Bluetooth
87VLP40K3
40W 3000K
4040lm
2321mm
Dimmable
Emergency
Bluetooth
87VLP50K3
50W 3000K
5050lm
2881mm
Dimmable
Emergency
Bluetooth
DISEGNO TECNICO
Optic

PC lens for refracted emission UGR<16 with transversal elements for high glare control.
Indirect emission with PMMA diffuser

Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
87DI32VLPK4
20 + 12W 4000K
3360lm
1201mm
Dimmable
Emergency
Bluetooth
87DI42VLPK4
30 + 12W 4000K
4410lm
1761mm
Dimmable
Emergency
Bluetooth
87DI64VLPK4
40 + 24W 4000K
6720lm
2321mm
Dimmable
Emergency
Bluetooth
87DI74VLPK4
50 + 24W 4000K
7383lm
2881mm
Dimmable
Emergency
Bluetooth
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
87DI32VLPK3
20 + 12W 3000K
3232lm
1201mm
Dimmable
Emergency
Bluetooth
87DI42VLPK3
30 + 12W 3000K
4242lm
1761mm
Dimmable
Emergency
Bluetooth
87DI64VLPK3
40 + 24W 3000K
6464lm
2321mm
Dimmable
Emergency
Bluetooth
87DI74VLPK3
50 + 24W 3000K
7474lm
2881mm
Dimmable
Emergency
Bluetooth
DISEGNO TECNICO
Optic

Pmma frosted diffuser UGR<22

Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
87PG24K4
24W 4000K
2448lm
1201mm
Dimmable
Emergency
Bluetooth
87PG36K4
36W 4000K
3672lm
1761mm
Dimmable
Emergency
Bluetooth
87PG48K4
48W 4000K
4896lm
2321mm
Dimmable
Emergency
Bluetooth
87PG60K4
60W 4000K
6120lm
2881mm
Dimmable
Emergency
Bluetooth
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
87PG24K3
24W 3000K
2328lm
1201mm
Dimmable
Emergency
Bluetooth
87PG36K3
36W 3000K
3492lm
1761mm
Dimmable
Emergency
Bluetooth
87PG72K3
48W 3000K
4656lm
2321mm
Dimmable
Emergency
Bluetooth
87PG60K3
60W 3000K
5820lm
2881mm
Dimmable
Emergency
Bluetooth
DISEGNO TECNICO
Optic

PMMA frosted diffuser buth for direct and indirect emission

Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
87DI36PGK4
28 + 12W 4000K
3672lm
1201mm
Dimmable
Emergency
Bluetooth
87DI48PGK4
36 + 12W 4000K
4896lm
1761mm
Dimmable
Emergency
Bluetooth
87DI72PGK4
48 + 24W 4000K
7344lm
2321mm
Dimmable
Emergency
Bluetooth
87DI84PGK4
60 + 24W 4000K
8568lm
2881mm
Dimmable
Emergency
Bluetooth
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
