TRILLY
A compact, precise, and rigorous pendant designed to deliver high-level optical performance in an elegant, discreet body.
The luminous core of TRILLY is a highly engineered LED module, which can accommodate three distinct optical accessories and a decorative reflector: a silicone diffuser that ensures homogeneous, enveloping light; an aluminium reflector for more direct and defined illumination; or a decorative reflector to give the fixture character through a refined play of light.
Its installation versatility allows for seamless integration into any architectural context: it can be suspended individually via a ceiling rose, installed on the Ghostfeed 2.0 tensioned system, or on standard 48V tracks.
The luminous core of TRILLY is a highly engineered LED module, which can accommodate three distinct optical accessories and a decorative reflector: a silicone diffuser that ensures homogeneous, enveloping light; an aluminium reflector for more direct and defined illumination; or a decorative reflector to give the fixture character through a refined play of light.
Its installation versatility allows for seamless integration into any architectural context: it can be suspended individually via a ceiling rose, installed on the Ghostfeed 2.0 tensioned system, or on standard 48V tracks.
Technical Features
Optics
Body
Legal References
Certifications
On Request
Colors
- Direct emission with PC lens
- Silicone diffuser
- Aluminium diffuser
- Decorative reflector in thermal-bonded cotton-wool
- 3000K / 4000K
- CRI > 90
- Eye-safety: RG0 / RG1
- MacAdam 3
- L70/B50 > 150,000 h
- IP40
- Direct emission
- UGR < 19
Die-cast aluminium.
The luminaires comply with safety standards EN 60598-1 and UNI EN 12464-1 (lighting of work environments). The DALI product complies with CAM Edilizia DM 23 June 2022 No. 256, lighting sector.
- CE compliance
- Energy class E
- 5-year warranty
- DALI – code D*
- Bluetooth – code BT*
-
Matte white RAL 9003 wrinkled – code W
-
Matte black RAL 9005 – code BK
-
Other finishes – on request
Technical Features
- Direct emission with PC lens
- Silicone diffuser
- Aluminium diffuser
- Decorative reflector in thermal-bonded cotton-wool
- 3000K / 4000K
- CRI > 90
- Eye-safety: RG0 / RG1
- MacAdam 3
- L70/B50 > 150,000 h
- IP40
Optics
- Direct emission
- UGR < 19
Body
Die-cast aluminium.
Legal References
The luminaires comply with safety standards EN 60598-1 and UNI EN 12464-1 (lighting of work environments). The DALI product complies with CAM Edilizia DM 23 June 2022 No. 256, lighting sector.
Certifications
- CE compliance
- Energy class E
- 5-year warranty
On Request
- DALI – code D*
- Bluetooth – code BT*
TRILLY
versions
Trilly
TRILLY Fabric
TRILLY

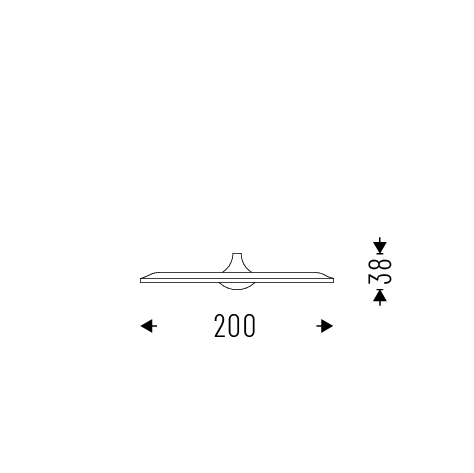

TECHNICAL DRAWING
Optics

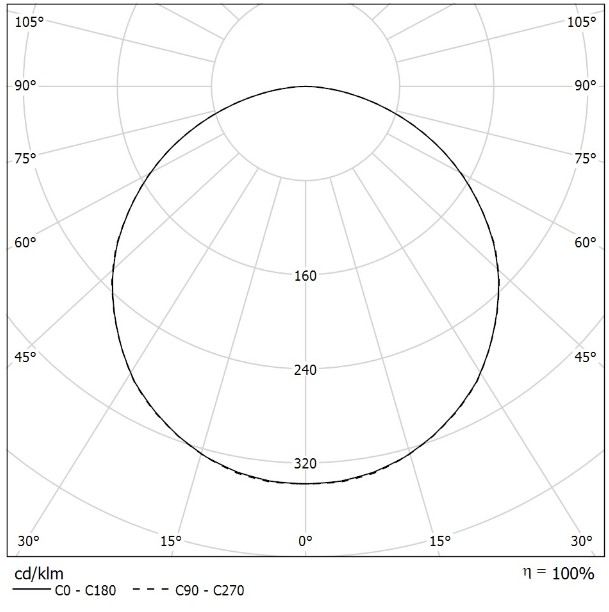

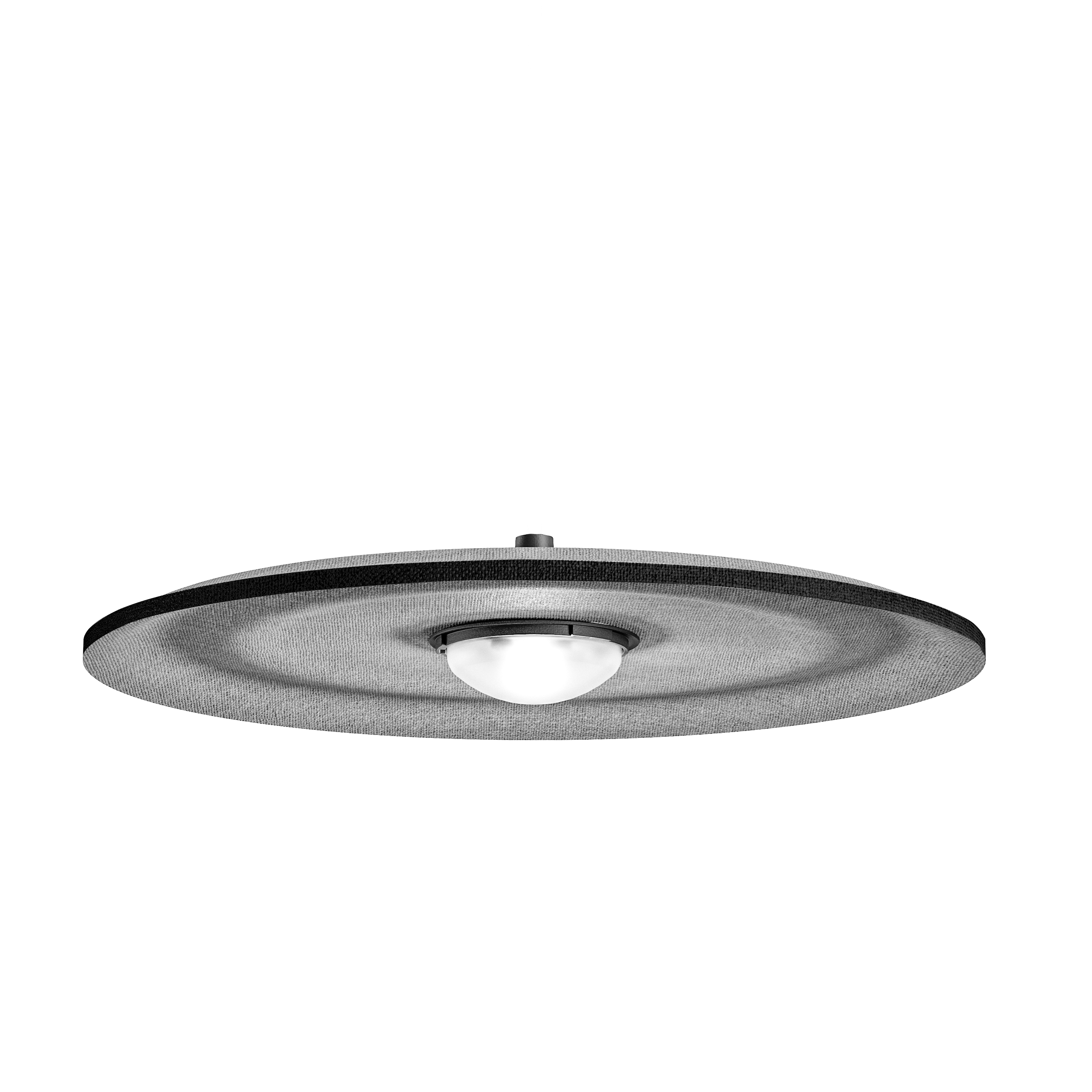

Single installation element with decorative reflector in thermo-bonded wadding, grey with black edge.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
01DD3K4
3W 4000K
364lm
200mm
Standard
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
01DD3K3
3W 3000K
340lm
200mm
Standard
Datasheets
2700K
code
flux
size
wiring
datasheet
specification items
01DD3K27
3W 2700K
319lm
200mm
Standard
TRILLY Direct
TRILLY

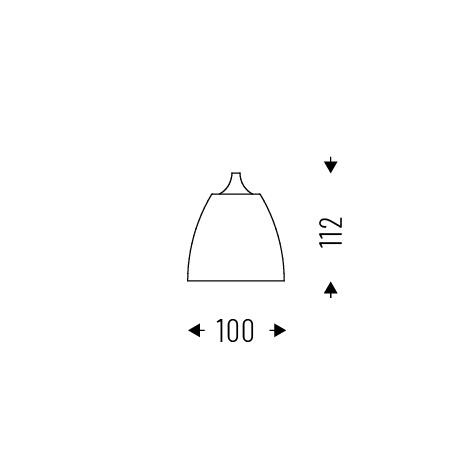

TECHNICAL DRAWING
Optics

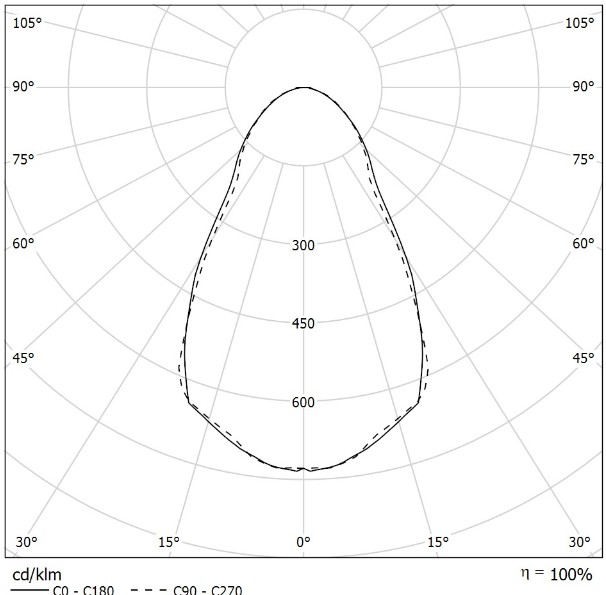

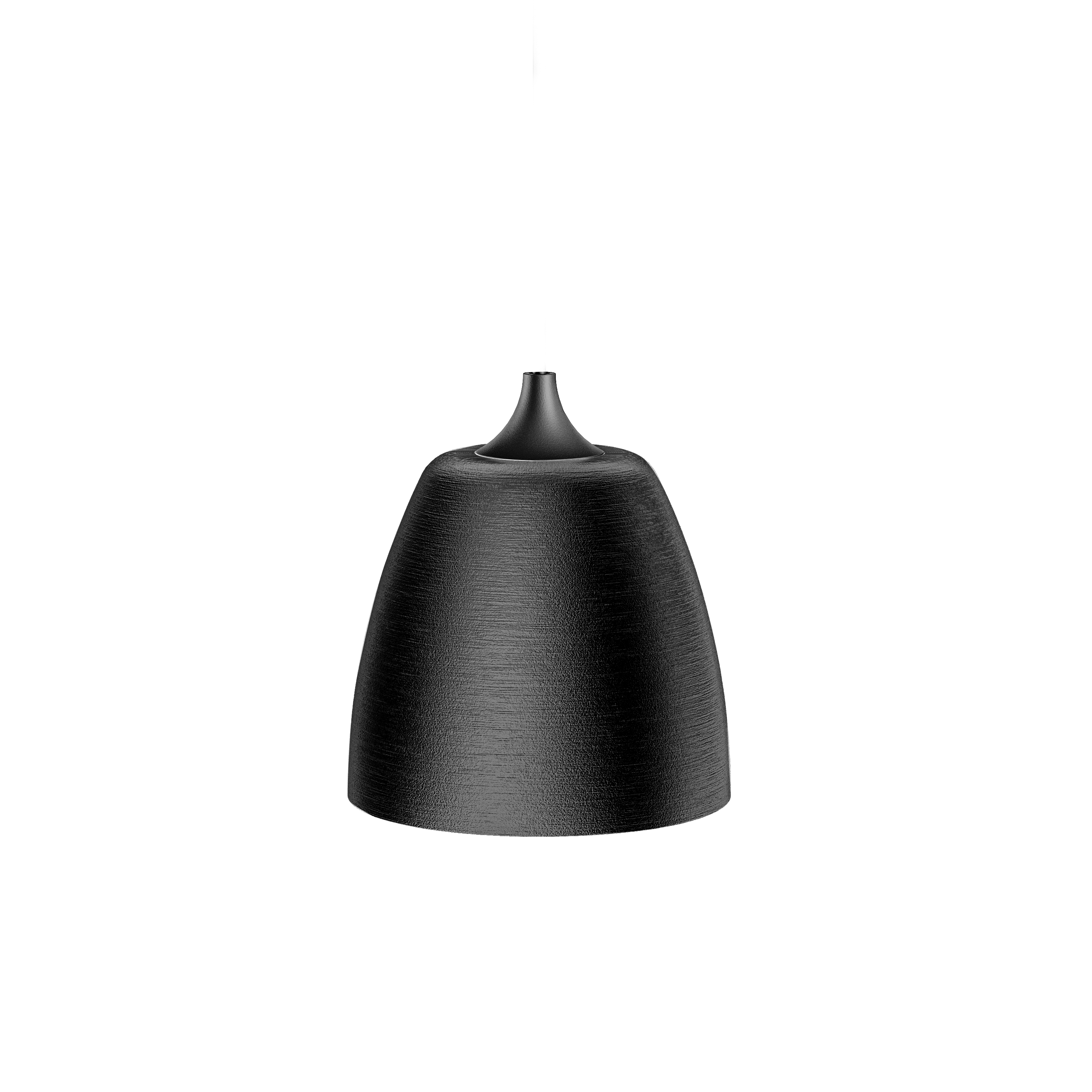

Single installation element with aluminium diffuser.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
01DA3K4
3W 4000K
293lm
100mm
Standard
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
01DA3K3
3W 3000K
272lm
100mm
Standard
Datasheets
2700K
code
flux
size
wiring
datasheet
specification items
01DA3K27
3W 2700K
256lm
100mm
Standard
TRILLY
TRILLY
TECHNICAL DRAWING
Optics

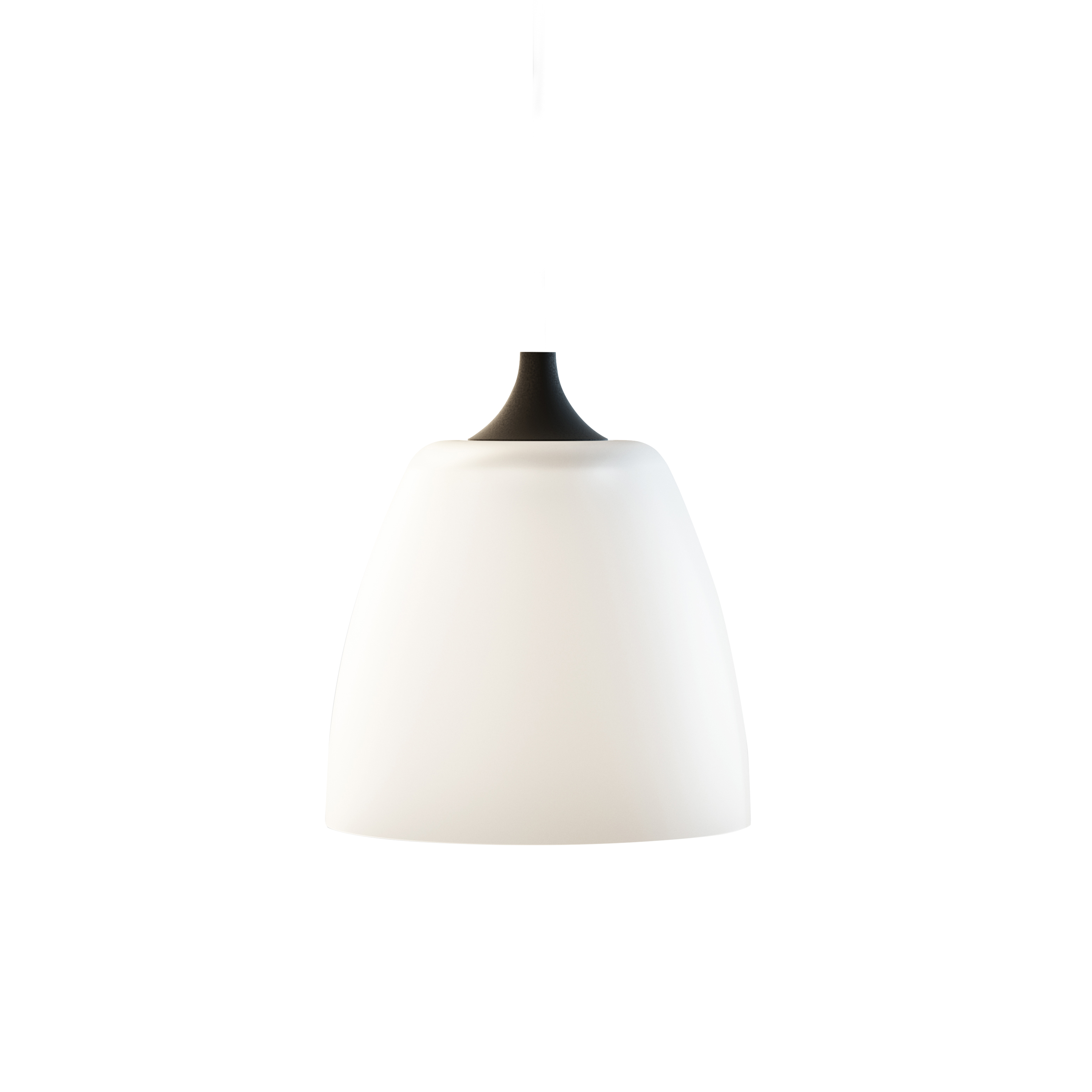

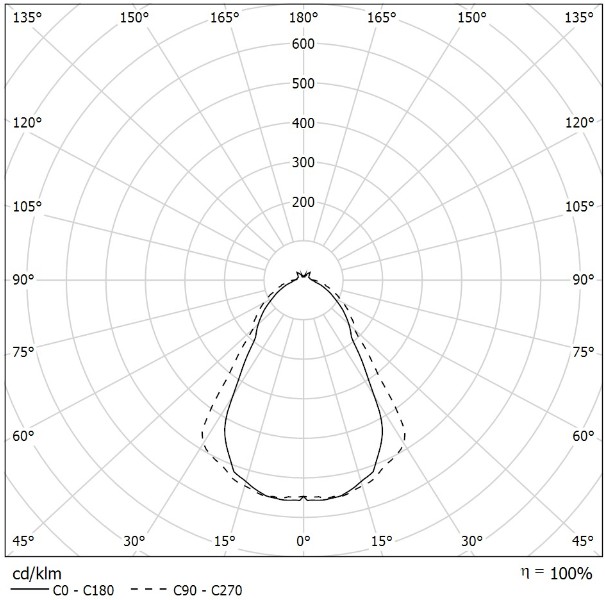

Single installation element with semi-transparent silicone diffuser.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
01DSL3K4
3W 4000K
334lm
100mm
Standard
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
01DSL3K3
3W 3000K
310lm
100mm
Standard
Datasheets
2700K
code
flux
size
wiring
datasheet
specification items
01DSL3K27
3W 2700K
292lm
100mm
Standard
