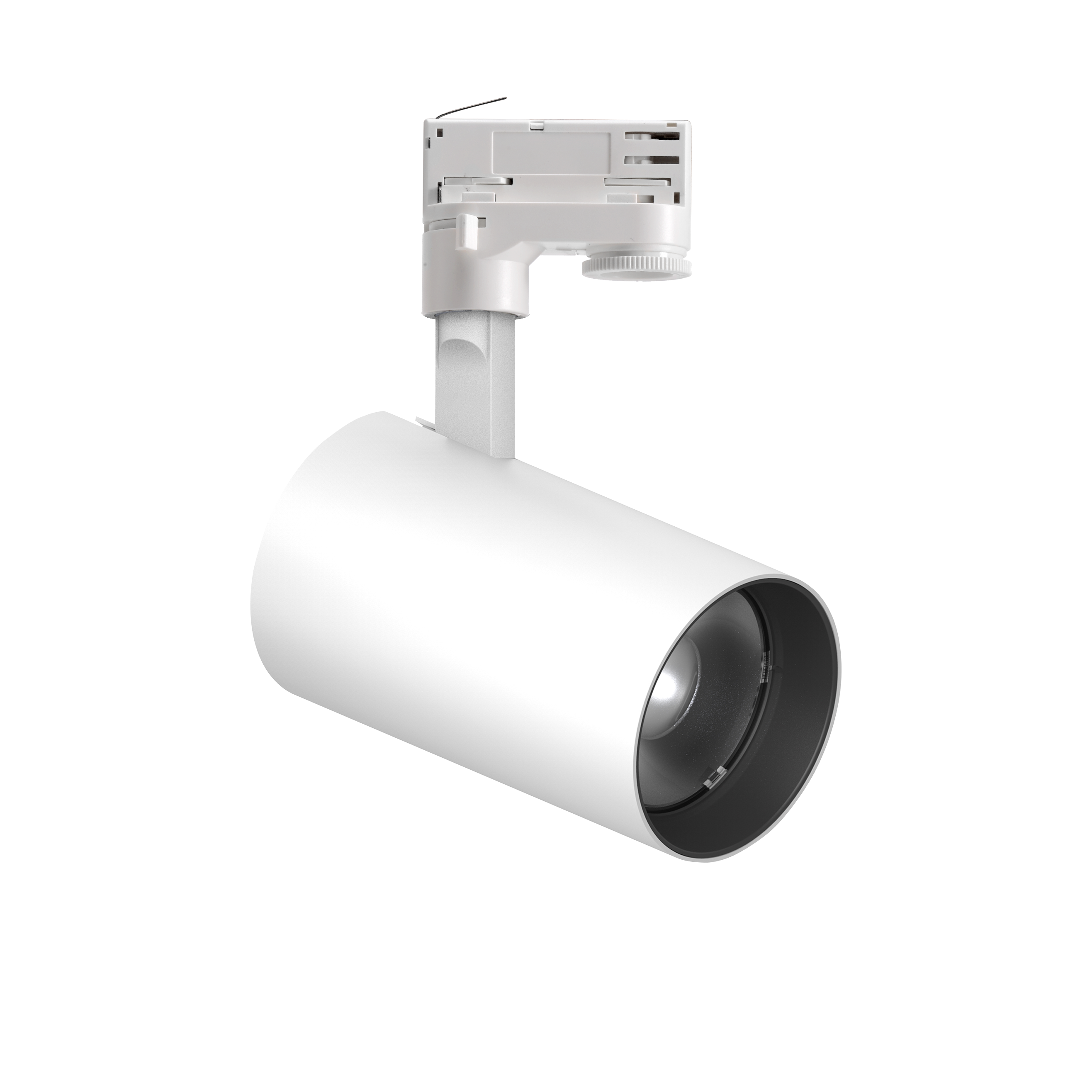

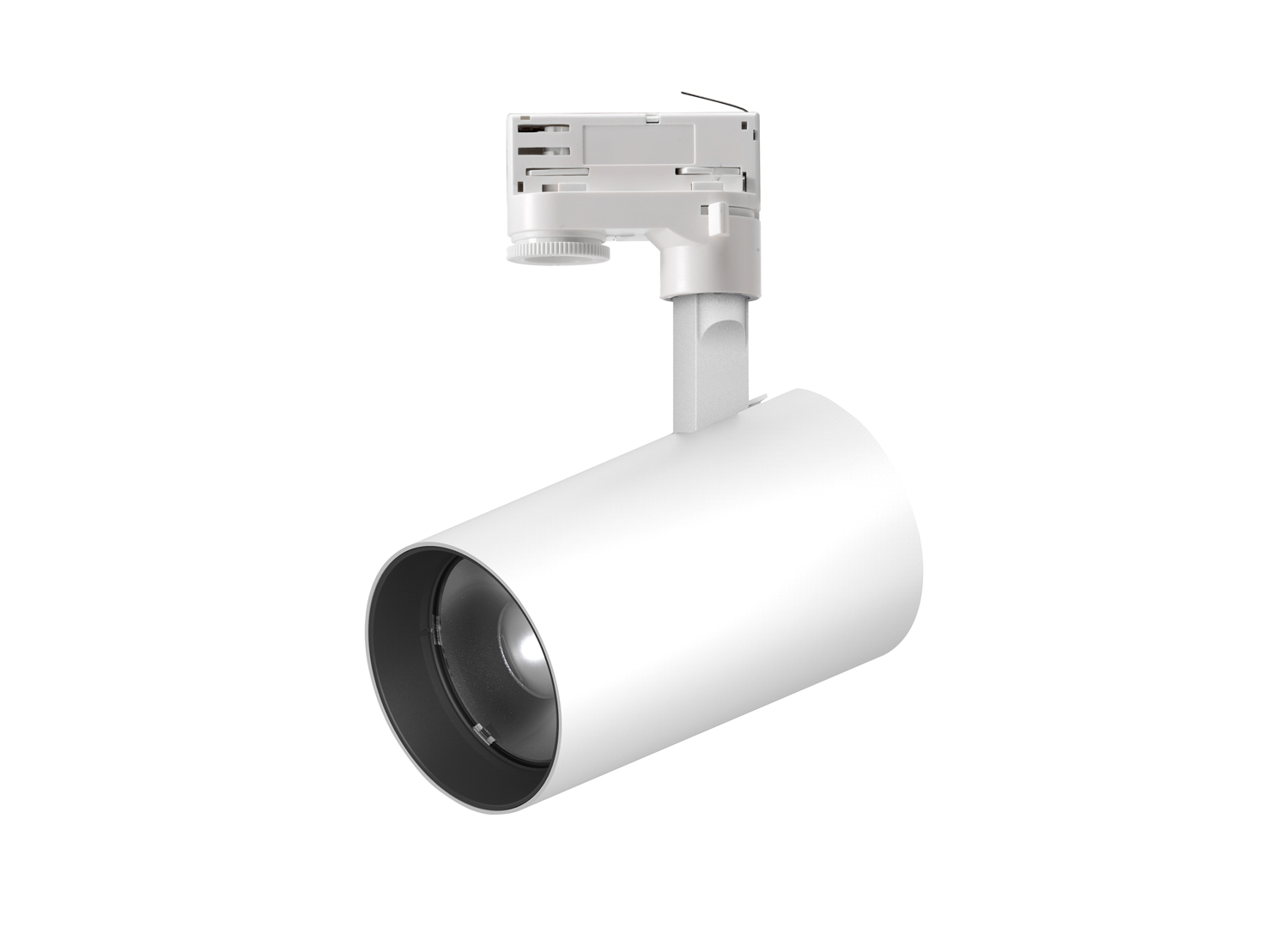

TERES ESSENTIAL
Teres Essential is the track spotlight that proves how high quality and refined design can be surprisingly accessible, delivering an essential yet stylish lighting solution.
This indoor track system is ideal for projects that require effective illumination at a contained cost across a variety of settings: from creating atmosphere in restaurants, cafés, and bars, to enhancing residential spaces and illuminating display windows.
This indoor track system is ideal for projects that require effective illumination at a contained cost across a variety of settings: from creating atmosphere in restaurants, cafés, and bars, to enhancing residential spaces and illuminating display windows.
Technical features
Optics
Body
Legal references
Certifications
On request
Colors
- Integrated driver
- CoB LED technology
- 3000K / 4000K
- CRI >90
- Eye safety: RG0 / RG1
- MacAdam 3
- L80/B10 >50.000h
- IP40
- PMMA lenses with beam angles:
15° – 24° – 36° – 50° – 70° - Direct emission
- UGR <19
Die-cast aluminium with epoxy powder coating
The fixtures comply with safety standards EN 60598-1 and UNI EN 12464-1 (lighting of work environments).
- CE compliant
- Energy class C
- 5-year warranty
- DALI – code D
- 2700K – code: K27
- 5000K – code: K5*
Check availability**
-
White RAL 9003 wrinkled – code W
-
Black RAL 9005 wrinkled – code BK
Technical features
- Integrated driver
- CoB LED technology
- 3000K / 4000K
- CRI >90
- Eye safety: RG0 / RG1
- MacAdam 3
- L80/B10 >50.000h
- IP40
Optics
- PMMA lenses with beam angles:
15° – 24° – 36° – 50° – 70° - Direct emission
- UGR <19
Body
Die-cast aluminium with epoxy powder coating
Legal references
The fixtures comply with safety standards EN 60598-1 and UNI EN 12464-1 (lighting of work environments).
Certifications
- CE compliant
- Energy class C
- 5-year warranty
On request
- DALI – code D
- 2700K – code: K27
- 5000K – code: K5*
Check availability**

TERES ESSENTIAL
versions
Teres Essential
TERES ESSENTIAL
TERES ESSENTIAL
TERES ESSENTIAL Download

Datasheets
4000K
code

flux
size
wiring
datasheet
specification items
14PC24K415E
24W 15° 4000K
3640lm
Ø 90mm
Standard
Dimmable
14PC24K424E
24W 24° 4000K
3640lm
Ø 90mm
Standard
Dimmable
14PC24K436E
24W 36° 4000K
3640lm
Ø 90mm
Standard
Dimmable
14PC24K450E
24W 50° 4000K
3640lm
Ø 90mm
Standard
Dimmable
14PC24K470E
24W 70° 4000K
3640lm
Ø 90mm
Standard
Dimmable
Datasheets
3000K
code

flux
size
wiring
datasheet
specification items
14PC24K315E
24W 15° 3000K
3500lm
Ø 90mm
Standard
Dimmable
14PC24K324E
24W 24° 3000K
3500lm
Ø 90mm
Standard
Dimmable
14PC24K336E
24W 36° 3000K
3500lm
Ø 90mm
Standard
Dimmable
14PC24K350E
24W 50° 3000K
3500lm
Ø 90mm
Standard
Dimmable
14PC24K370E
24W 70° 3000K
3500lm
Ø 90mm
Standard
Dimmable
