SKYLITE
SKYLITE is a large-format lighting system designed to create uniform luminous surfaces that integrate seamlessly into the architecture.
Its painted aluminium structure contains an Opal Soft Grade PVC fabric with a B1 fireproof rating, capable of delivering broad and even 120° light distribution.

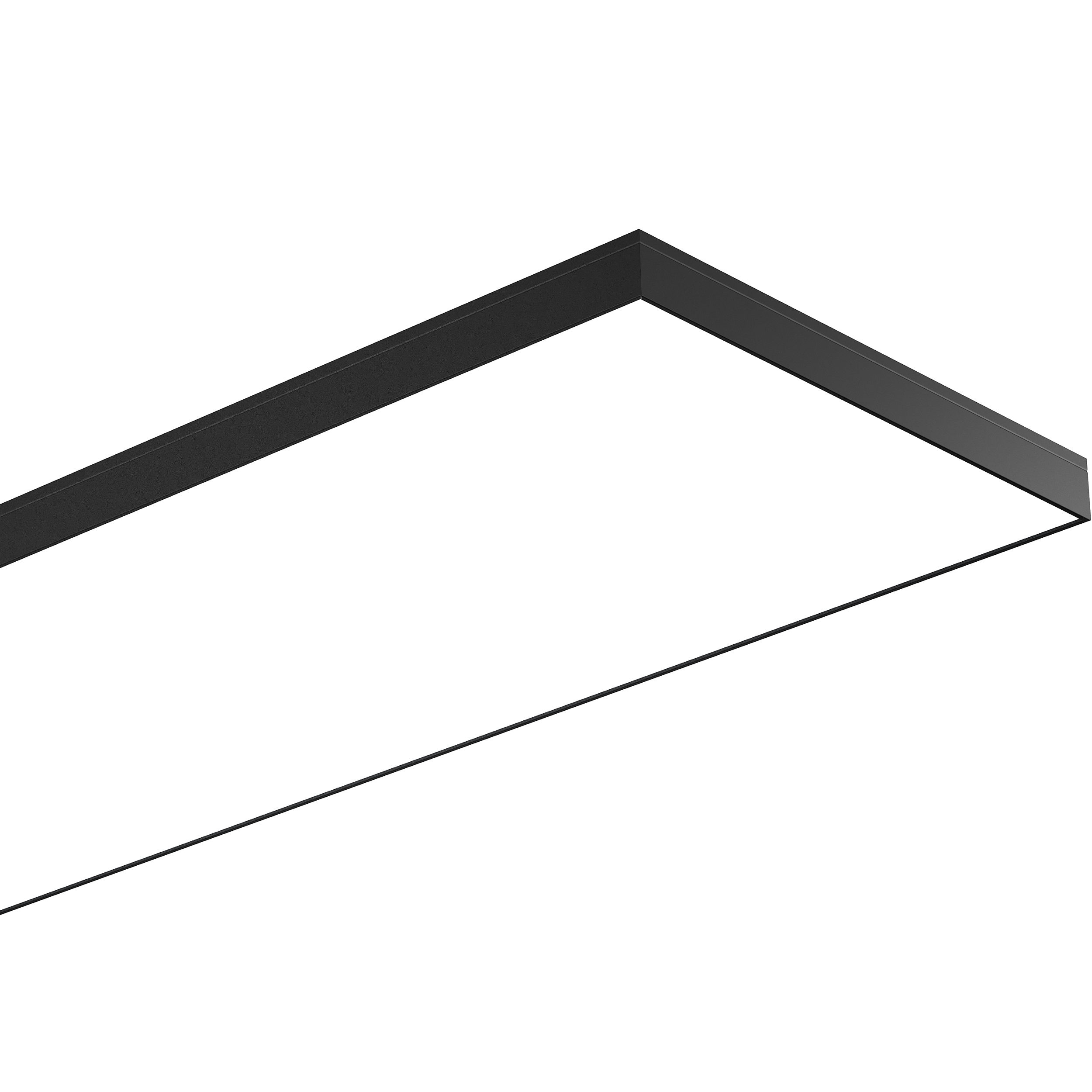

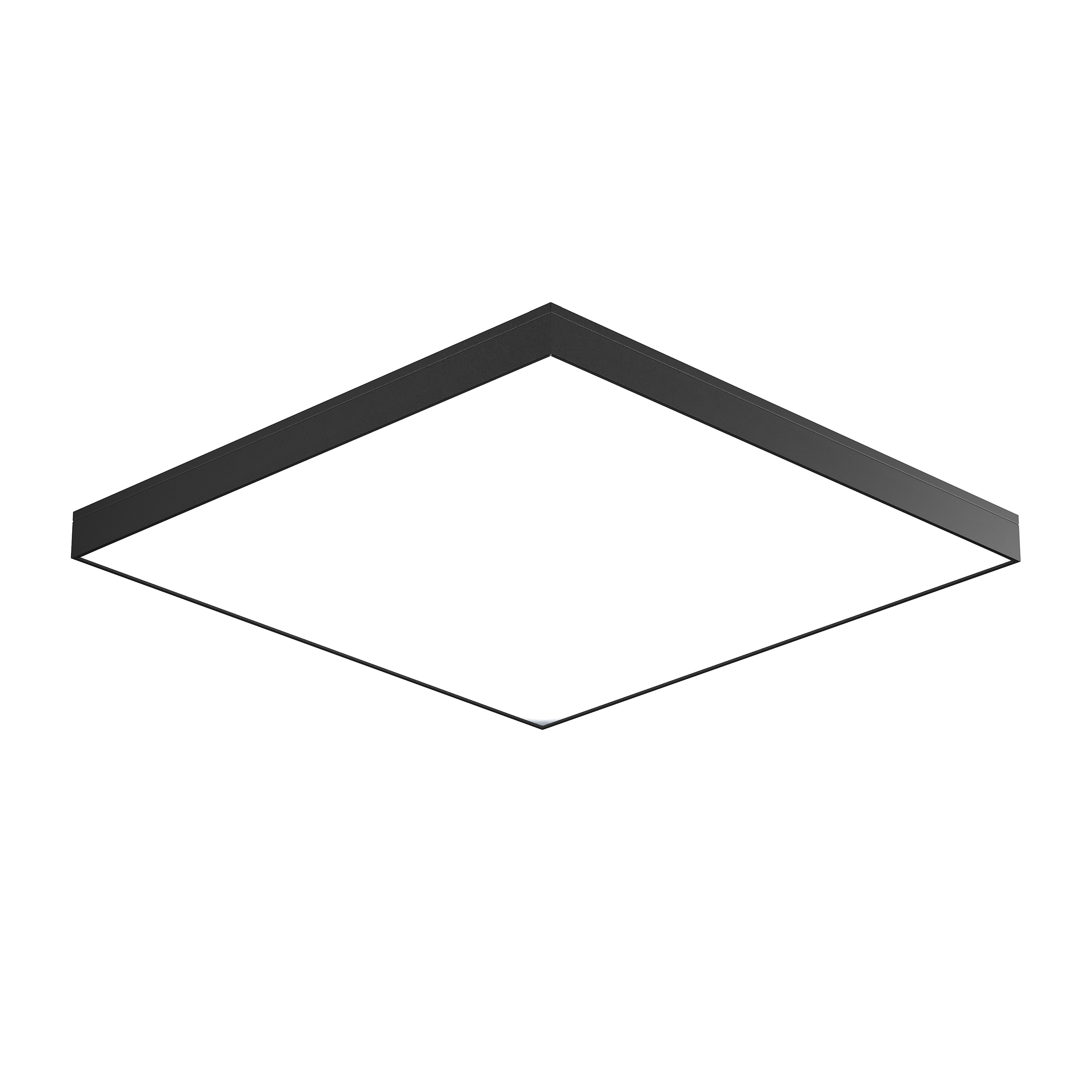

Available in Square and Long versions, SKYLITE adapts to different design requirements, from square formats to more extended linear solutions.

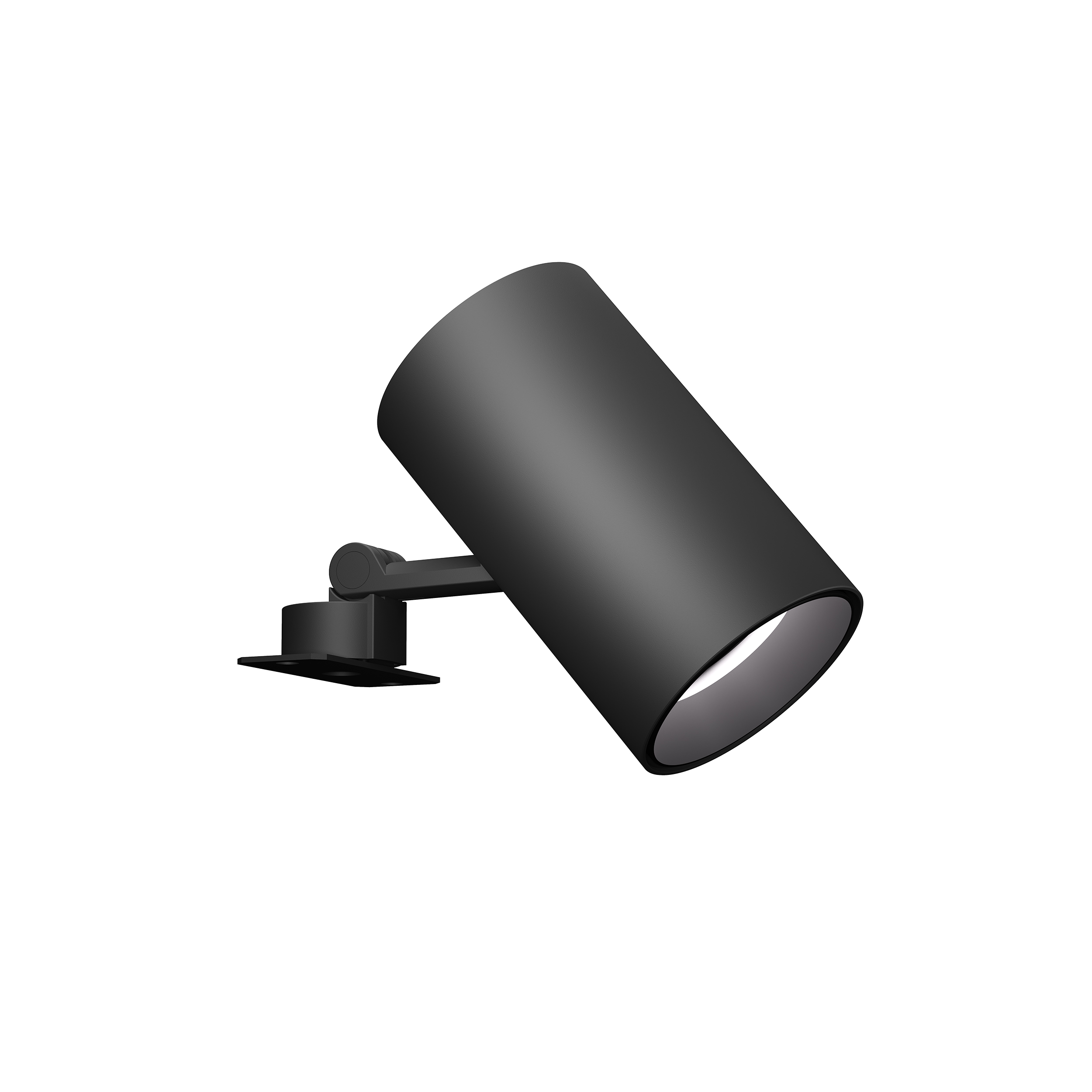

In ceiling-mounted or suspended installations, it can also accommodate a spotlight mounted directly onto the structure, without the need for additional accessories, combining diffuse lighting and accent lighting within a single system.
Designed for showrooms, retail and exhibition spaces, SKYLITE combines clean design, compositional flexibility and quality of light distribution.
Its painted aluminium structure contains an Opal Soft Grade PVC fabric with a B1 fireproof rating, capable of delivering broad and even 120° light distribution.
Available in Square and Long versions, SKYLITE adapts to different design requirements, from square formats to more extended linear solutions.
In ceiling-mounted or suspended installations, it can also accommodate a spotlight mounted directly onto the structure, without the need for additional accessories, combining diffuse lighting and accent lighting within a single system.
Designed for showrooms, retail and exhibition spaces, SKYLITE combines clean design, compositional flexibility and quality of light distribution.
TECHNICAL FEATURES
OPTICS
BODY
LEGAL REFERENCES
CERTIFICATIONS
ON REQUEST
Colors
- Integrated driver
- Direct emission
- Direct / indirect emission
- 3000K/4000K
- CRI>90
- Eye safety: RG0/RG1
- Mac Adams 3
- L80/B10 >50.000h
- IP 40
- Opal Soft Grade PVC fabric, fireproof B1 level – 120° light distribution
- UGR<19
Aluminum with epoxy powder coating.
The luminaires comply with the safety standards EN 60598-1 and UNI EN 12464-1 for workplace lighting. The DALI version complies with the CAM Edilizia requirements set out in Ministerial Decree No. 256 of 23 June 2022 for the lighting sector.
- CE Conformity
- Energy efficiency E
- 5 years warranty
- DALI – code D
- Bluetooth – code BT*
- Emergency 1 h – cod. EM
- Emergency 3 h – cod. EM3H*
- 2700K – code K27*
-
White RAL 9016 – code W
-
Black RAL 9005 – code BK
-
Other colors - on request
TECHNICAL FEATURES
- Integrated driver
- Direct emission
- Direct / indirect emission
- 3000K/4000K
- CRI>90
- Eye safety: RG0/RG1
- Mac Adams 3
- L80/B10 >50.000h
- IP 40
OPTICS
- Opal Soft Grade PVC fabric, fireproof B1 level – 120° light distribution
- UGR<19
BODY
Aluminum with epoxy powder coating.
LEGAL REFERENCES
The luminaires comply with the safety standards EN 60598-1 and UNI EN 12464-1 for workplace lighting. The DALI version complies with the CAM Edilizia requirements set out in Ministerial Decree No. 256 of 23 June 2022 for the lighting sector.
CERTIFICATIONS
- CE Conformity
- Energy efficiency E
- 5 years warranty
ON REQUEST
- DALI – code D
- Bluetooth – code BT*
- Emergency 1 h – cod. EM
- Emergency 3 h – cod. EM3H*
- 2700K – code K27*
