NOBIS
NOBIS’s family is designed for wall and ceiling installation, declined also in bollard, ground, semi-recessed and USB versions. The sliding optical system allows to direct the beam and thanks to the endless possibilities of colors of the cover this family is the ideal solution in every context.
Technical features
Optics
Body
Legal references
Certifications
On request
Colors
- Built-in driver
- 3000K
- CRI>90
- Eye safety: RG0/RG1
- Mac Adams 3
- L80/B10 >50.000h
- IP 66
- IK 07
- -20°/+40°
- Direct emission
- Satin polycarbonate diffuser
Shockproof, antistatic technopolymer with an exclusive treatment that guarantees a homogeneous emission over the entire surface.
In compliance with the safety standards EN 60 598-1 and UNI EN 12464-1 (lighting for working places).
- CE Conformity
- Energy efficiency E
- 5 years warranty
- 4000K – code K4*
* Where available
-
White RAL 9003 - code B
-
Black RAL 9005 - code C8
-
Other Colors - on request
Technical features
- Built-in driver
- 3000K
- CRI>90
- Eye safety: RG0/RG1
- Mac Adams 3
- L80/B10 >50.000h
- IP 66
- IK 07
- -20°/+40°
Optics
- Direct emission
- Satin polycarbonate diffuser
Body
Shockproof, antistatic technopolymer with an exclusive treatment that guarantees a homogeneous emission over the entire surface.
Legal references
In compliance with the safety standards EN 60 598-1 and UNI EN 12464-1 (lighting for working places).
Certifications
- CE Conformity
- Energy efficiency E
- 5 years warranty
On request
- 4000K – code K4*
* Where available

NOBIS
versions
NOBIS MINI
NOBIS

Datasheets
3000K
code

flux
size
wiring
datasheet
specification items
90PC3L366
3W 3000K
208lm
55mm
Standard

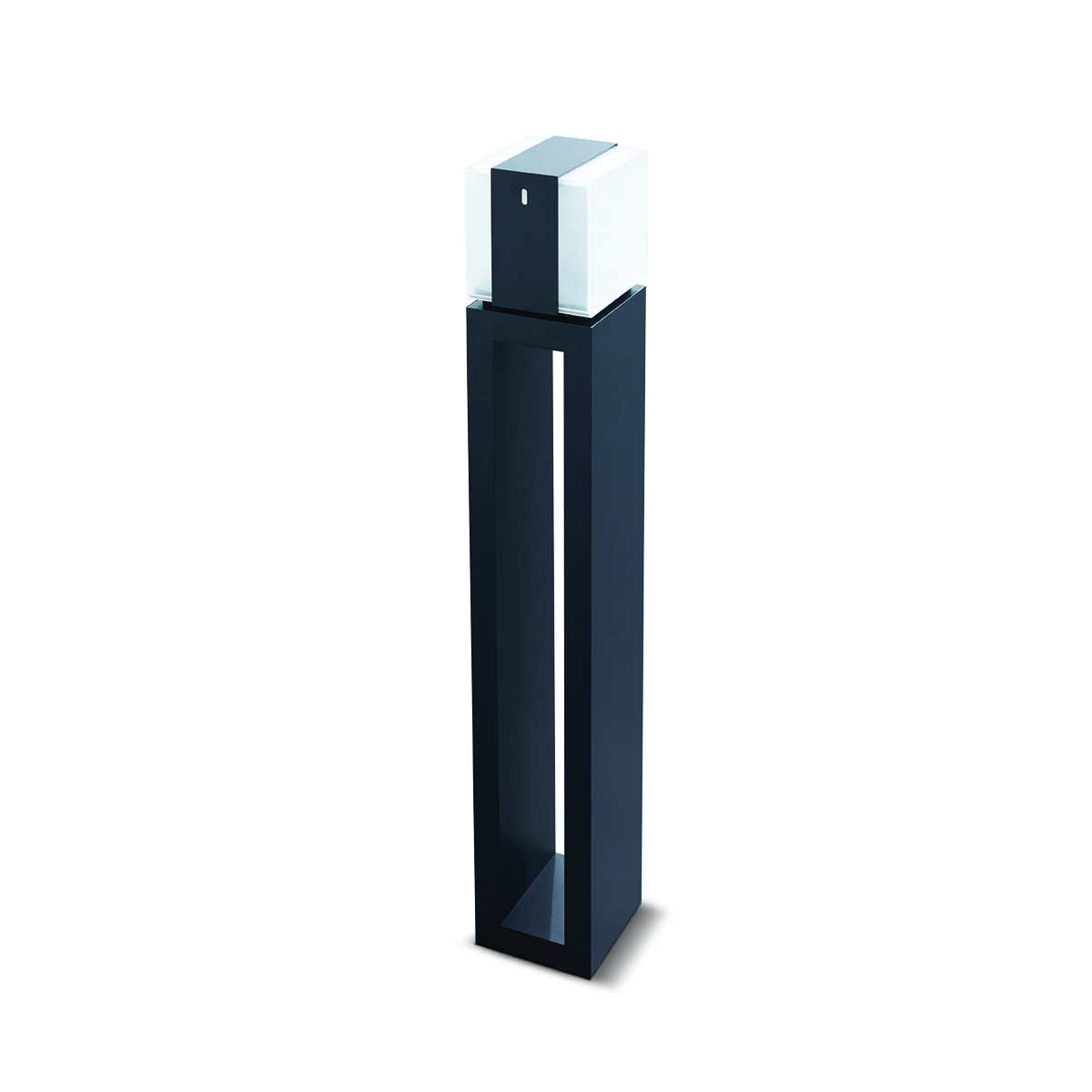

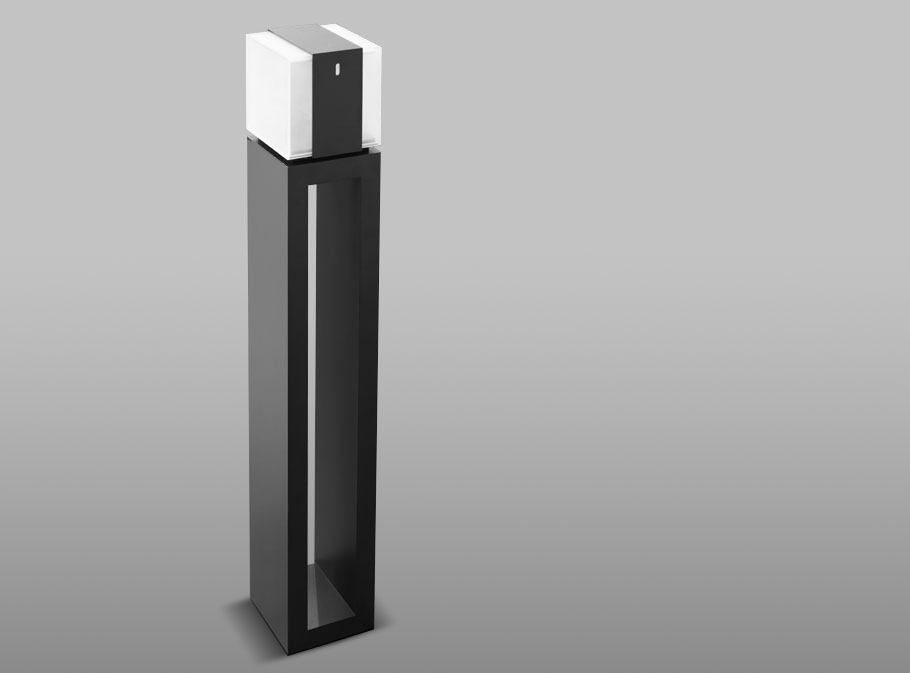

NOBIS BOLLARD
NOBIS

Datasheets
3000K
code

flux
size
wiring
datasheet
specification items
90PC13L3B66
13W 3000K
696lm
110mm
Standard

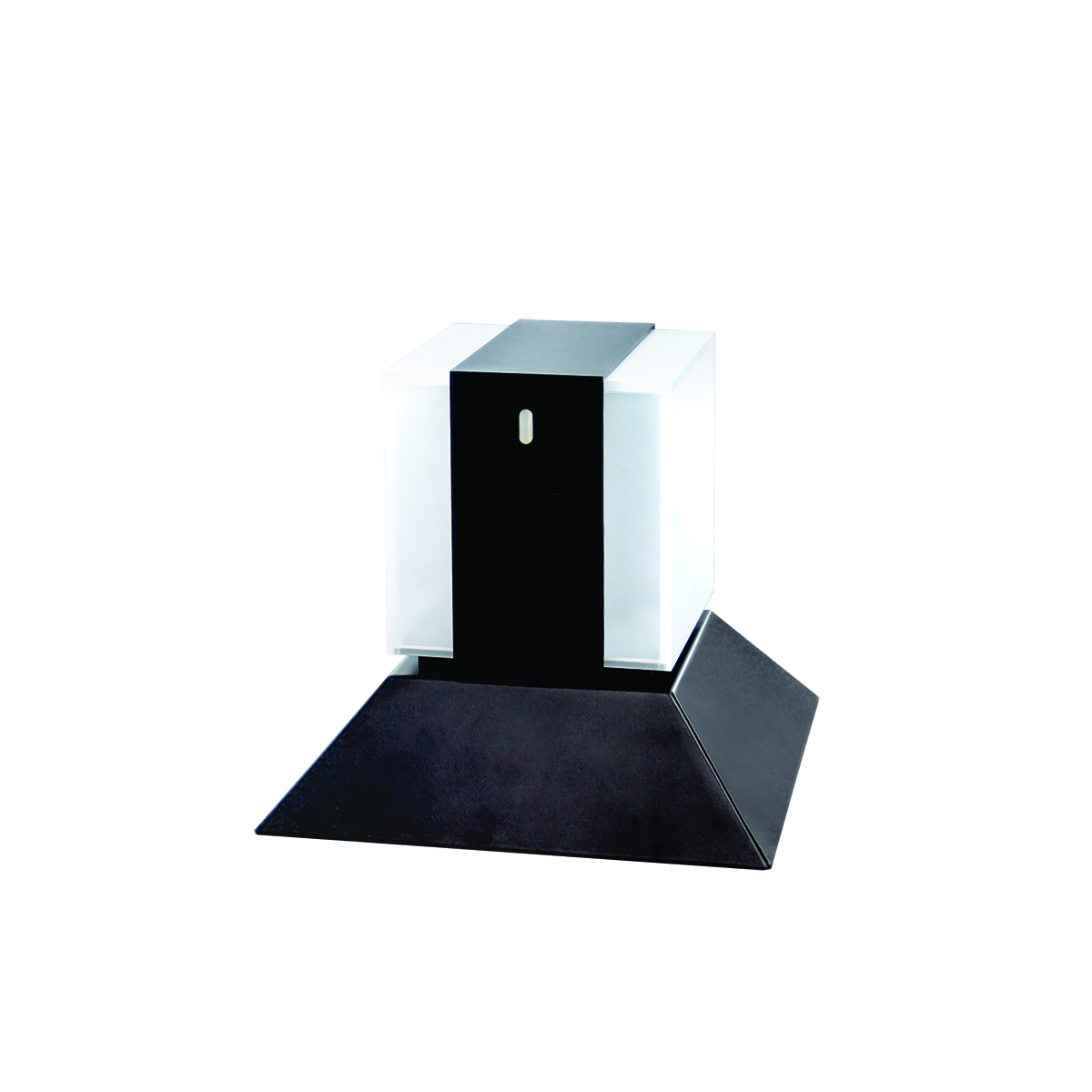

NOBIS GROUND
NOBIS

Datasheets
3000K
code

flux
size
wiring
datasheet
specification items
90PC13L3G66
13W 3000K
696lm
110(194)mm
Standard
