CLOU

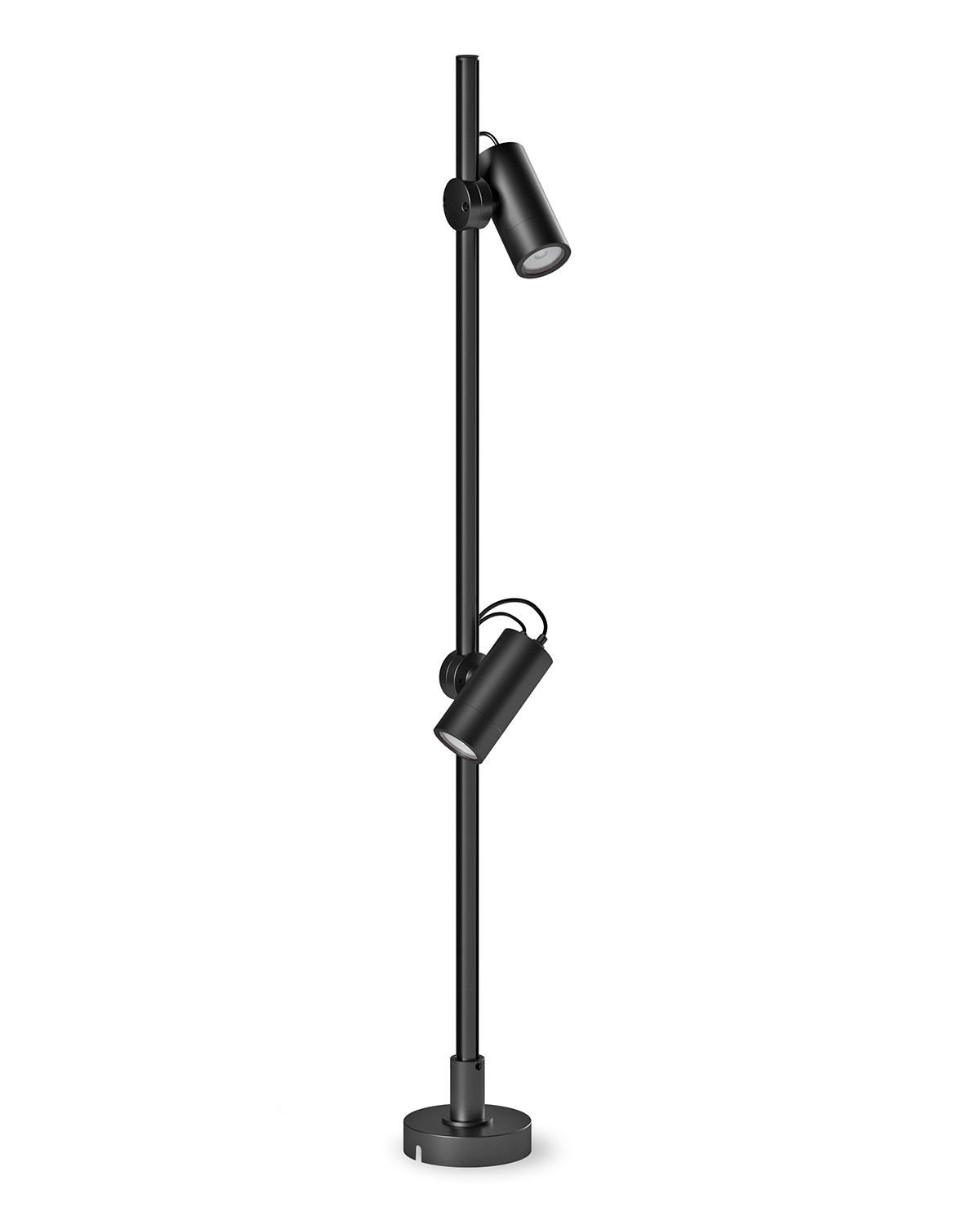

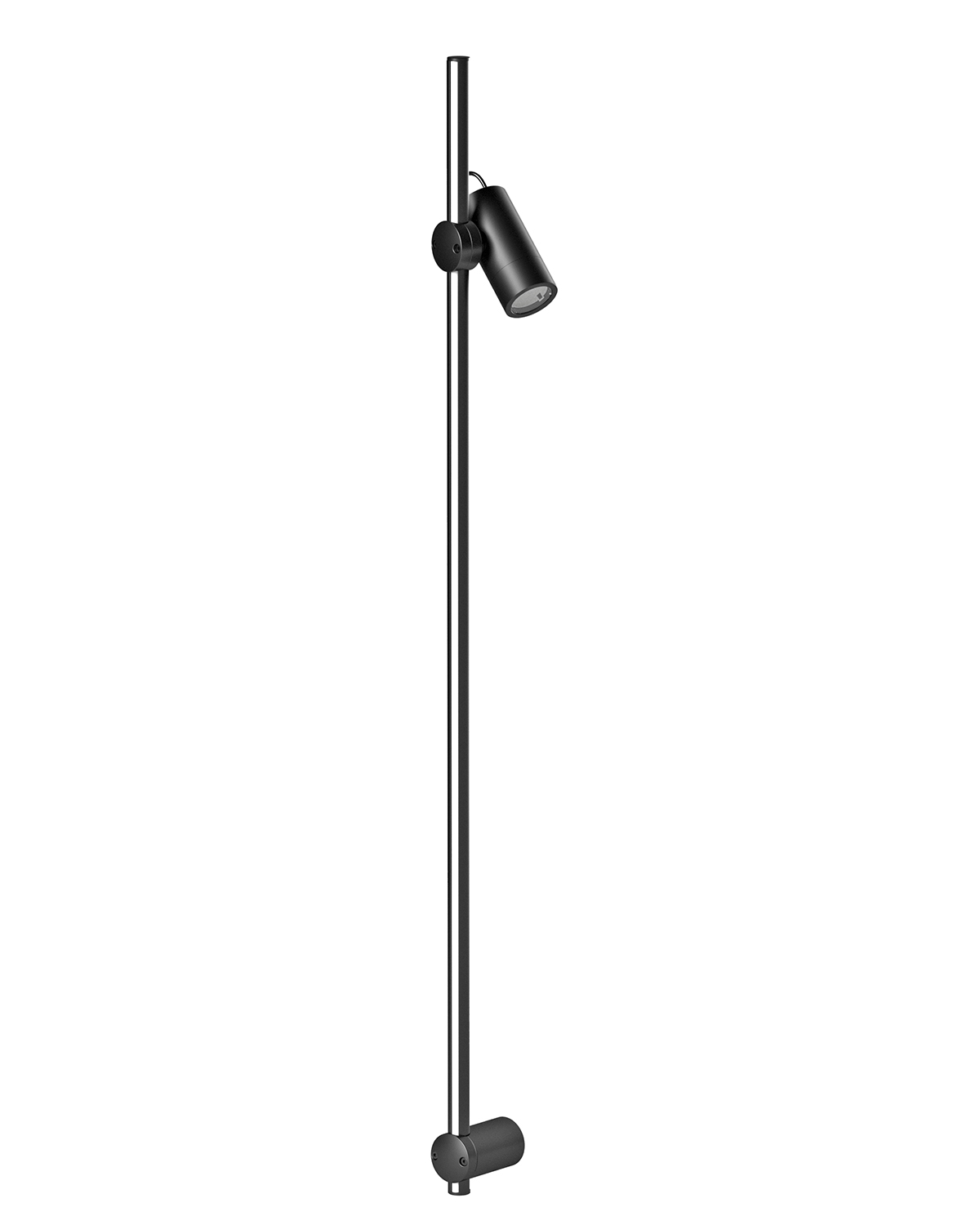

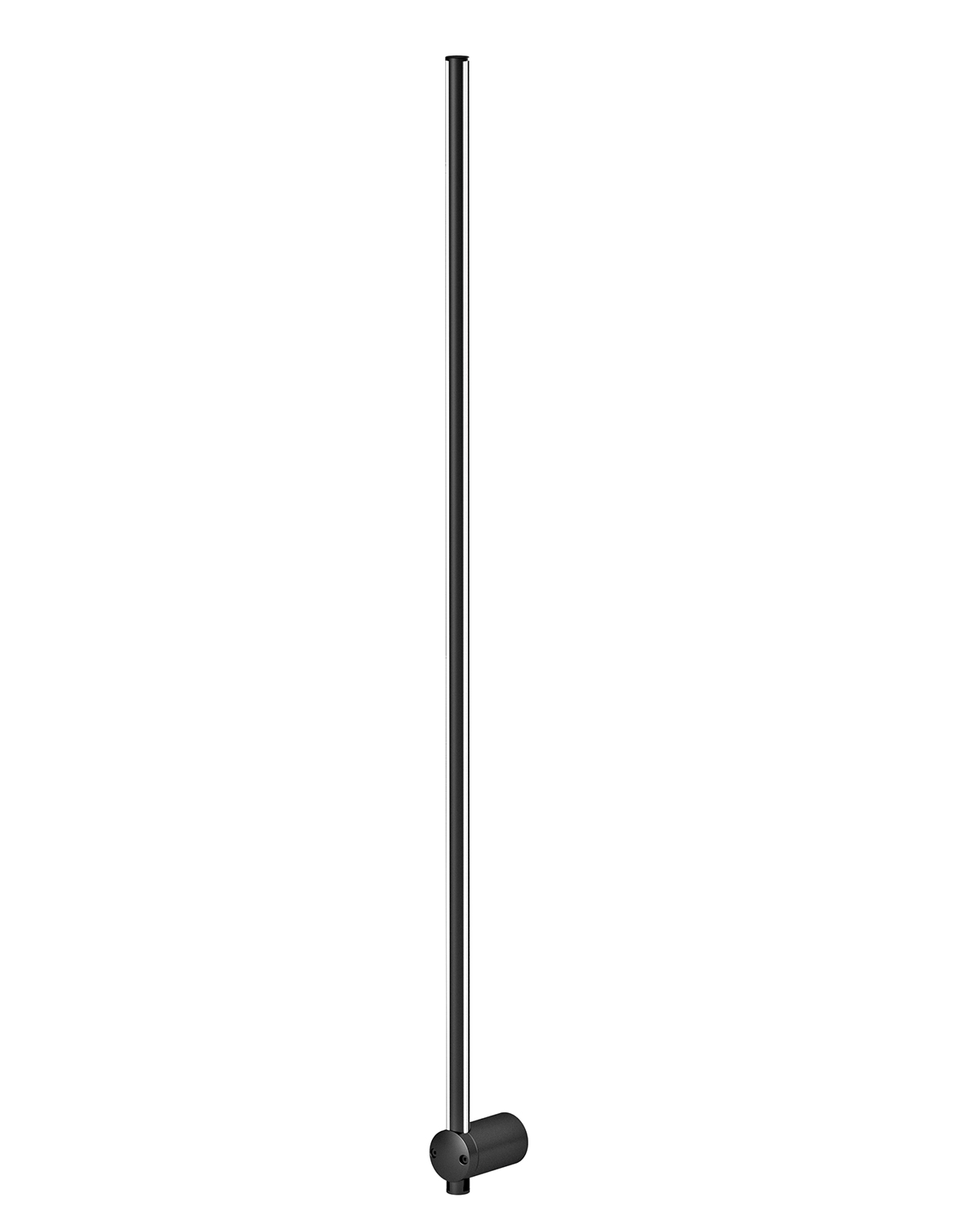

CLOU enlarges with unlimited creative solutions the outdoor light. A bollard, wall or ceiling element, CLOU is designed to illuminate green areas and semi-open spaces with a modern and brilliant design. The structure is composed by an extruded petal profile with three grooves, where you can install silicone strip that, combined with spots, grant you to play in an amazing way with the light. Moreover, an overlapping junction can be applied to CLOU body to allow you to create a dynamic weaving profile with different directions in the space to obtain an even more refined and personalized lighting composition.
Technical features
Optics
Body
Legal references
Certifications
On request
Colors
- 3000K
- CRI>90
- Eye safety: RG0/RG1
- Mac Adams 3
- L80/B10 >50.000h
- Strip 7 W/m
- IP 66
- IK 06
- -20°C/+40°C
- Pc lens, beam angles: 15°-50°
- Silicone strip
Aluminum with epoxy powder coating
In compliance with the safety standards EN 60 598-1 and UNI EN 12464-1 (lighting for working places).
- CE Conformity
- Energy efficiency D
- 5 years warranty
- 2700K – code K27*
- 4000K – code K4*
* Where available
-
White RAL 9003 - code B
-
Black RAL 9005 - code C8
-
Other Colors - on request
Technical features
- 3000K
- CRI>90
- Eye safety: RG0/RG1
- Mac Adams 3
- L80/B10 >50.000h
- Strip 7 W/m
- IP 66
- IK 06
- -20°C/+40°C
Optics
- Pc lens, beam angles: 15°-50°
- Silicone strip
Body
Aluminum with epoxy powder coating
Legal references
In compliance with the safety standards EN 60 598-1 and UNI EN 12464-1 (lighting for working places).
Certifications
- CE Conformity
- Energy efficiency D
- 5 years warranty
On request
- 2700K – code K27*
- 4000K – code K4*
* Where available
CLOU
versions
CLOU ROUND STRIP
CLOU

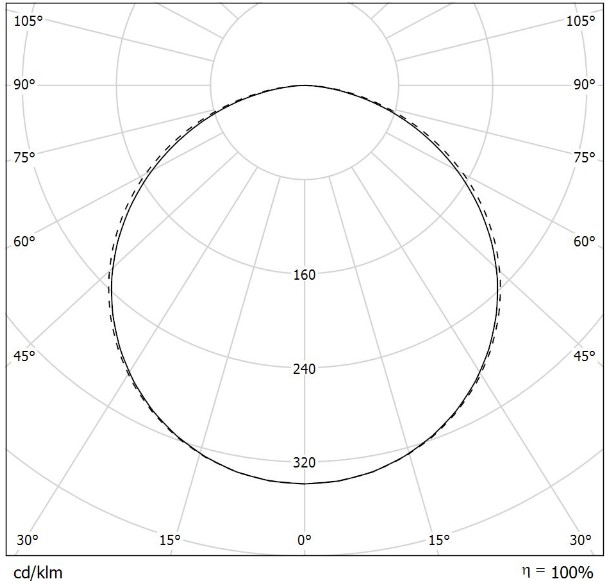

Optics
Silicone Led strip 7W/m.
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
59SL7K360
7W/m 3000K
280lm/m
Ø 600mm
Standard 24V
59SL7K390
7W/m 3000K
280lm/m
Ø 900mm
Standard 24V
59SL7K3200
7W/m 3000K
280lm/m
Ø 2000mm
Standard 24V
59SL7K3500
7W/m 3000K
280lm/m
Ø 5000mm
Standard 24V
CLOU SPOT MID
CLOU

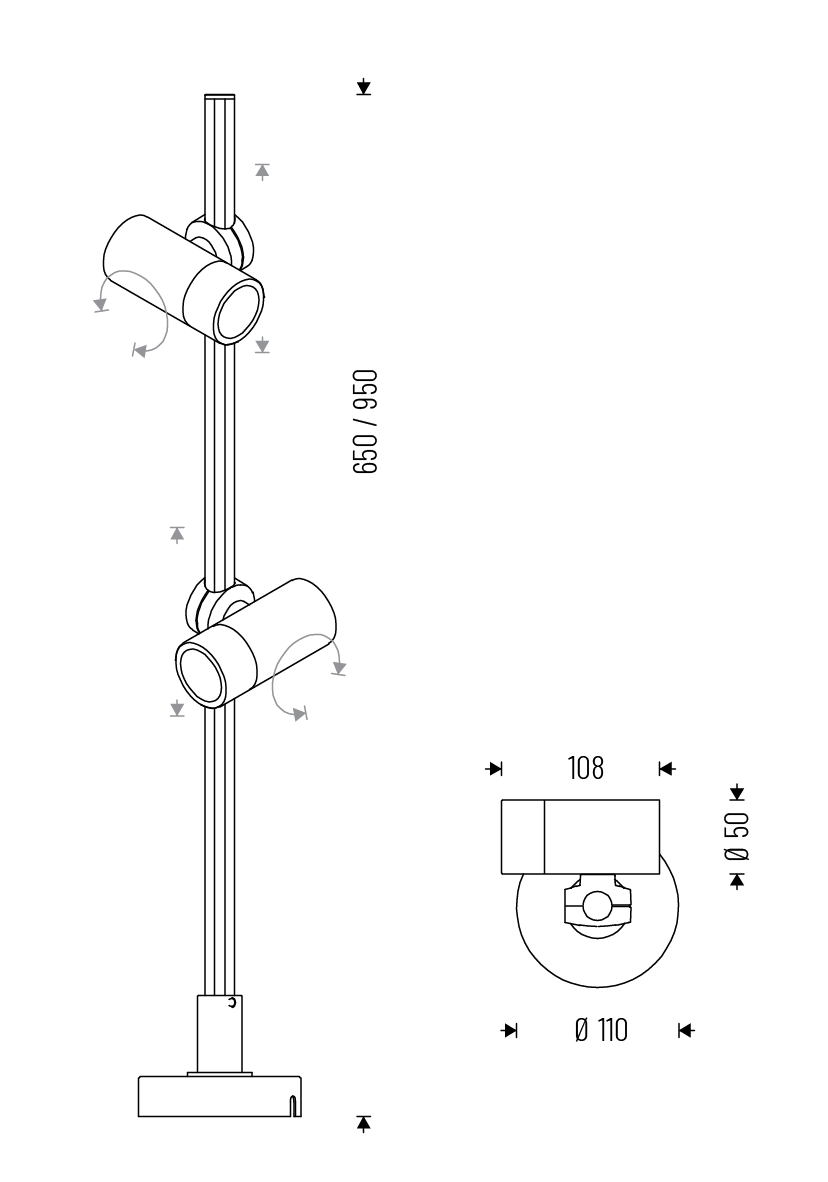

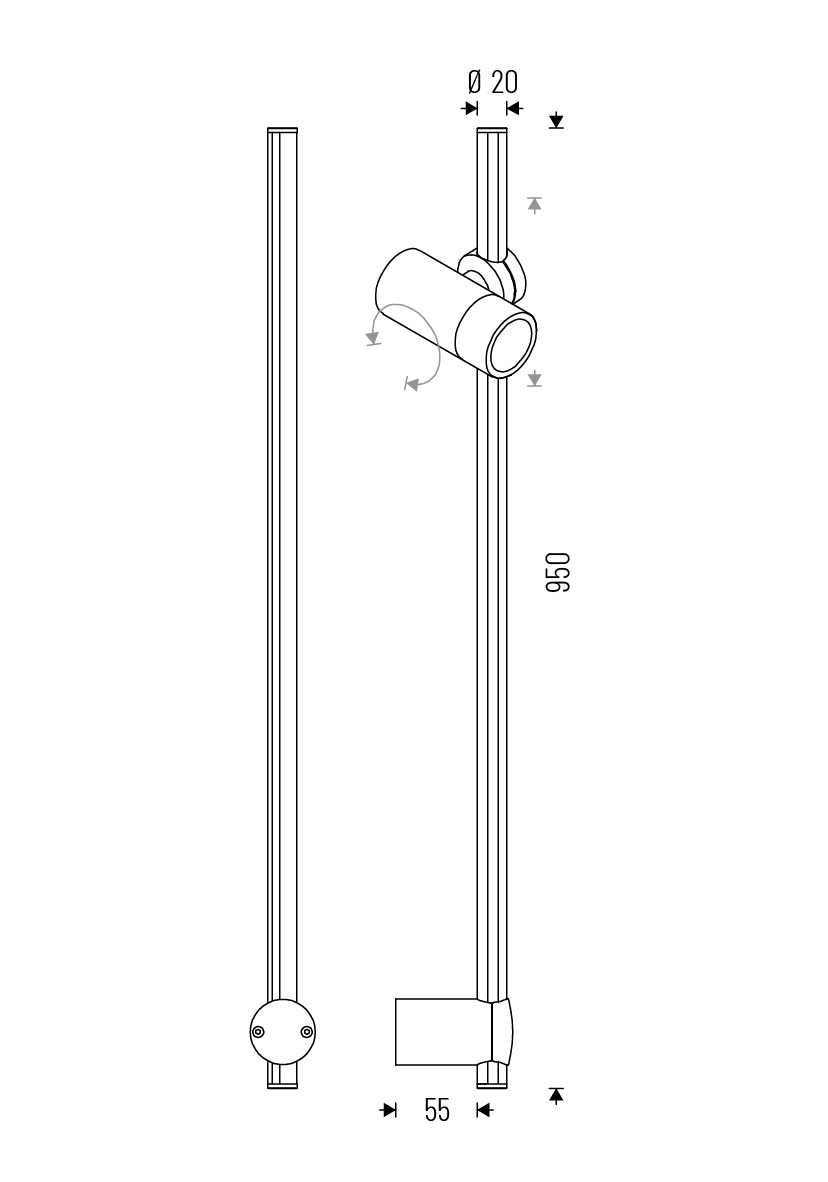

TECHNICAL DRAWING

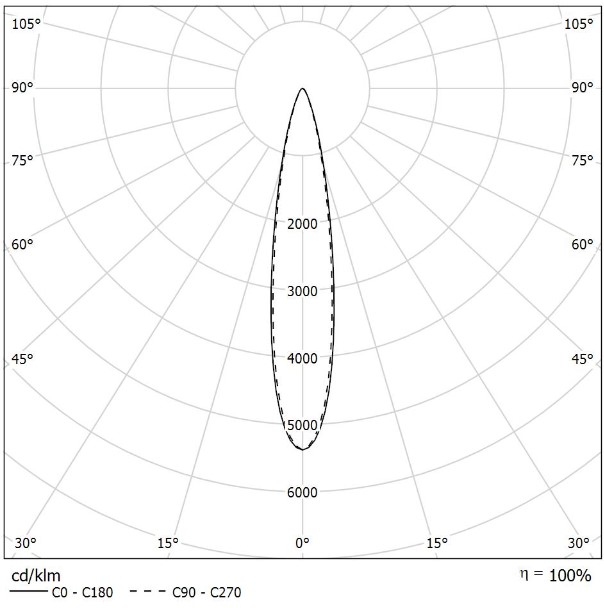

Optics
PC lens beam angle 15°-50°. Double cable exit for in/out wiring. Driver built-in.
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
59PC7K315M
7W 15° 3000K
420lm
Ø 50mm
Standard
59PC7K350M
7W 50° 3000K
420lm
Ø 50mm
Standard
CLOU SPOT
CLOU

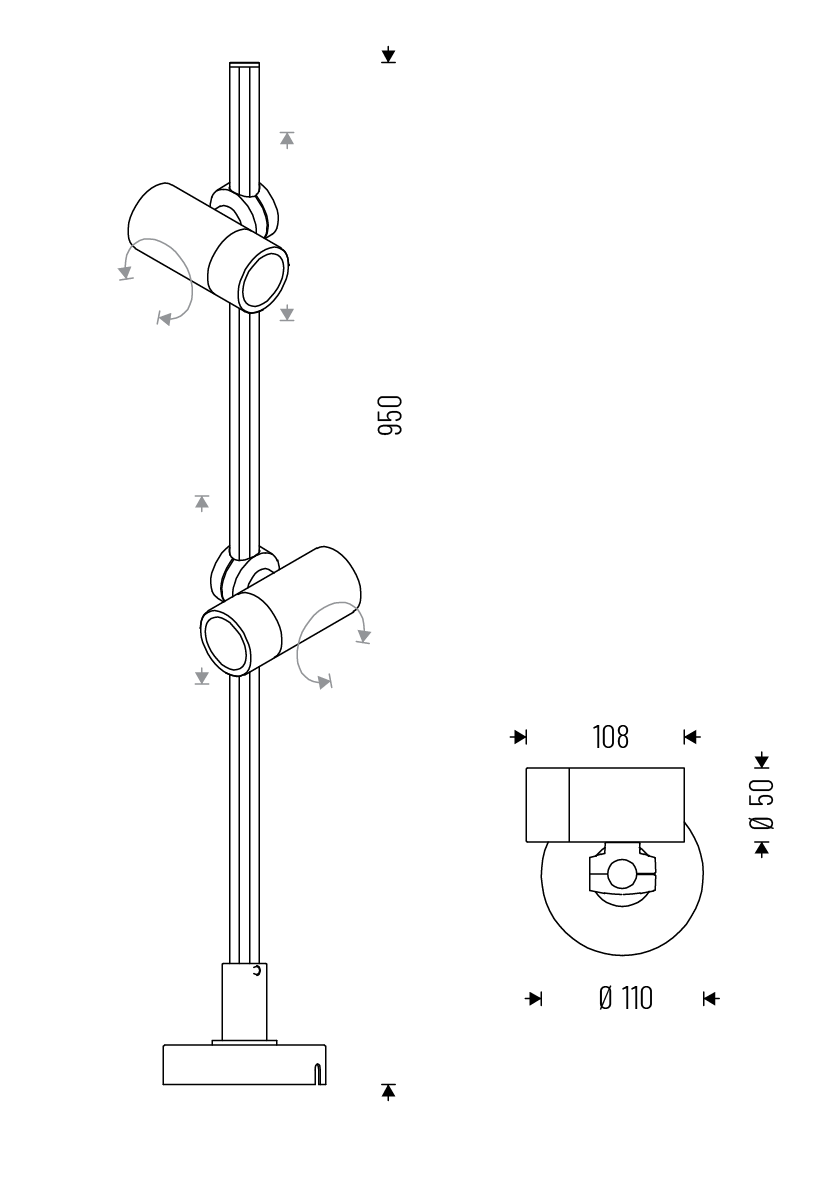

TECHNICAL DRAWING
Optics
PC lens beam angle 15°-50°. Single cable entry. Driver built-in.
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
59PC7K315
7W 15° 3000K
420lm
Ø 50mm
Standard
59PC7K350
7W 50° 3000K
420lm
Ø 50mm
Standard
CLOU ARM
CLOU
TECHNICAL DRAWING
Datasheets
code
flux
size
wiring
datasheet
specification items
59AA700
700mm
59AA1000
1000mm
59AA2000
2000mm
59AA3000
3000mm
