WAVE

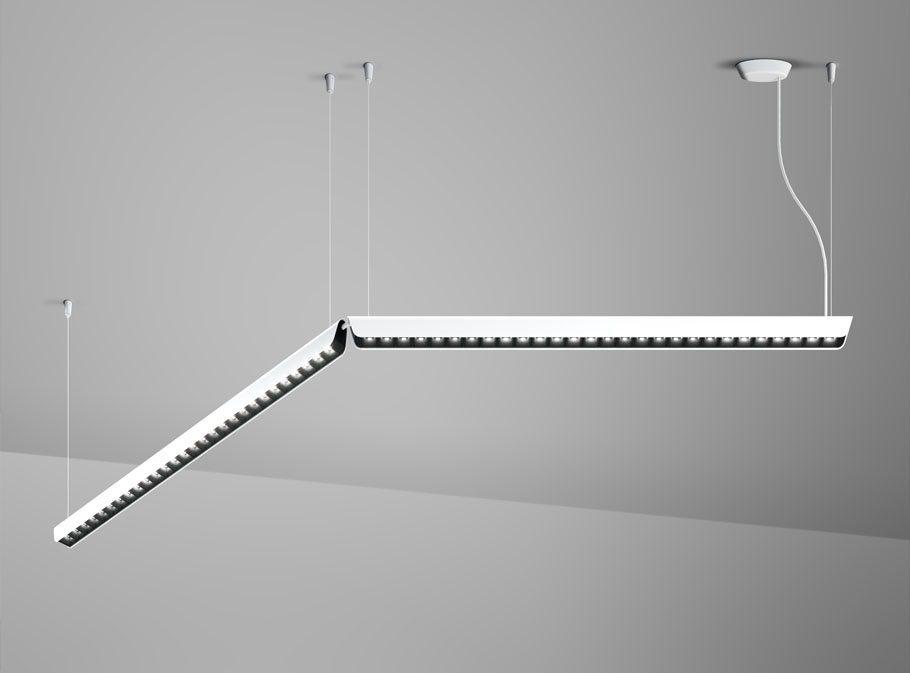

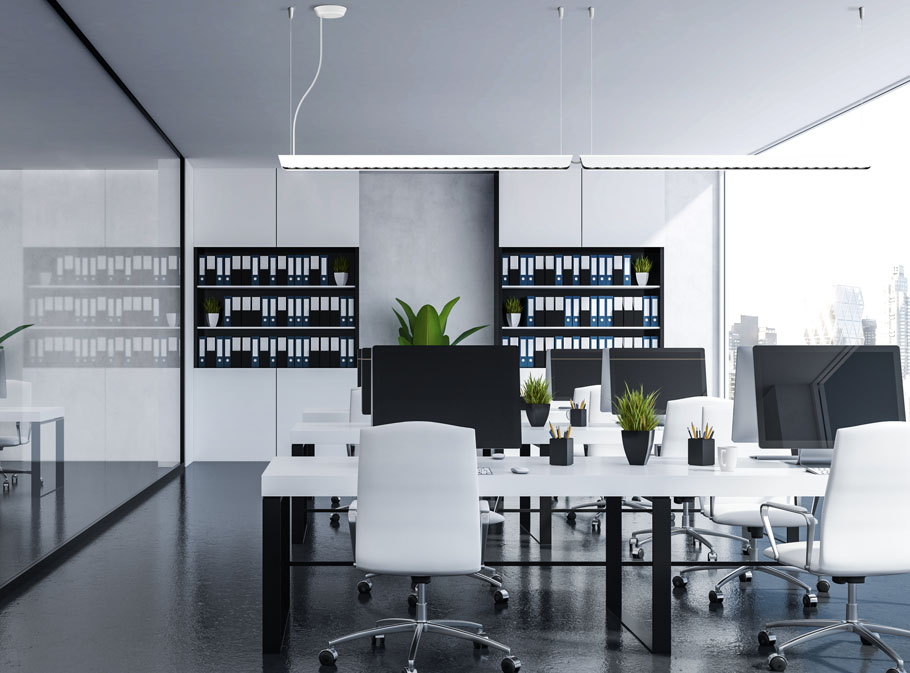

Soft-line design for a truly versatile range: WAVE is suitable both as an element for single installation and as a system for continuous suspended or recessed rows. Direct/indirect emission with High Contrast microcell optical system and high glare control.Specifications
Optics
Body
Legal references
On request
COLORS
Specifications
Built-in driver
Colour temperature: 3000K/4000K
CRI>90
McAdams 3
Life Time: L80/B10 >50.000h
5 years complete warranty
Eye safety: RG0/RG1 in accordance with EN62471:2009
End caps ansd suspensions included
Optics
High Contrast diffuser UGR <16. Double emission: direct / indirect

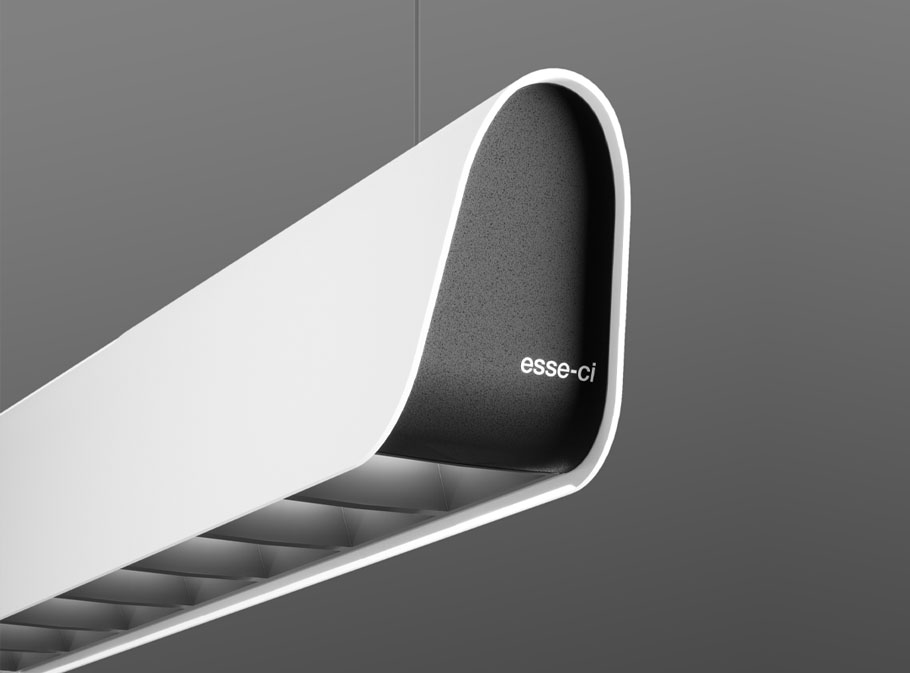

Body
Aluminium body with epoxy powder coating.
Legal references
In compliance with the safety standards EN 60 598-1 and UNI EN 12464-1 (lighting for working places).
On request
Wiring DALI dimmable – Code: D (verify the available version)
Wiring with emergency kit – Code: EM for 1 hour / EM3H for 3 hours (verify the available version)
COLORS
White RAL 9003 – code B
white body with black optics and end caps
Black RAL 9005 – code C8
black body with white optics and heads
versions available
High contrast UGR <16
double emission
versions available
WAVE
technical data
Optic
Optic
Datasheets 4000K
code
flux
size
wiring
datasheet
specification items
85DR26DKK4
26W 4000K
2938lm
1185mm
Standard
Dimmable
85DR36DKK4
36W 4000K
3852lm
1185mm
Standard
Dimmable
85DR31DKK4
31W 4000K
3503lm
1465mm
Standard
Dimmable
85DR45DKK4
45W 4000K
4815lm
1465mm
Standard
Dimmable
85DR37DKK4
37W 4000K
4181lm
1745mm
Standard
Dimmable
85DR54DKK4
54W 4000K
5778lm
1745mm
Standard
Dimmable
85DR61DKK4
61W 4000K
6893lm
2865mm
Standard
Dimmable
85DR90DKK4
90W 4000K
9630lm
2865mm
Standard
Dimmable
Datasheets 3000K
code
flux
size
wiring
datasheet
specification items
85DR26DKK3
26W 3000K
2732lm
1185mm
Standard
Dimmable
85DR36DKK3
36W 3000K
3582lm
1185mm
Standard
Dimmable
85DR31DKK3
31W 3000K
3258lm
1465mm
Standard
Dimmable
85DR45DKK3
45W 3000K
4478lm
1465mm
Standard
Dimmable
85DR37DKK3
37W 3000K
3888lm
1745mm
Standard
Dimmable
85DR54DKK3
54W 3000K
5374lm
1745mm
Standard
Dimmable
85DR61DKK3
61W 3000K
6410lm
2865mm
Standard
Dimmable
85DR90DKK3
90W 3000K
8956lm
2865mm
Standard
Dimmable
WAVE Double emission
technical data
Optic
Optic
High Contrast diffuser UGR <16.
Double emission direct / indirect
Datasheets 4000K
code
flux
size
wiring
datasheet
specification items
85DI38DKK4
38W 4000K
4234lm
1185mm
Standard
85DI48DKK4
48W 4000K
5148lm
1185mm
Standard
85DI47DKK4
47W 4000K
5231lm
1465mm
Standard
85DI61DKK4
61W 4000K
6543lm
1465mm
Standard
85DI53DKK4
53W 4000K
5909lm
1745mm
Standard
85DI70DKK4
70W 4000K
7506lm
1745mm
Standard
85DI93DKK4
93W 4000K
10349lm
2865mm
Standard
85DI122DKK4
122W 4000K
13086lm
2865mm
Standard
Datasheets 3000K
code
flux
size
wiring
datasheet
specification items
85DI38DKK3
38W 3000K
3937lm
1185mm
Standard
85DI48DKK3
48W 3000K
4787lm
1185mm
Standard
85DI47DKK3
47W 3000K
4865lm
1465mm
Standard
85DI61DKK3
61W 3000K
6085lm
1465mm
Standard
85DI53DKK3
53W 3000K
5495lm
1745mm
Standard
85DI70DKK3
70W 3000K
6981lm
1745mm
Standard
85DI93DKK3
93W 3000K
9624lm
2865mm
Standard
85DI122DKK3
122W 3000K
12170lm
2865mm
Standard
