PROFREEL SLIM is available in two types: the DISPLAY version, ready for installation, and the DISPLAY FREE version, customizable directly on site.
PROFREEL SLIM
PROFREEL, the range of luminaires for continuous rows completely customizable, is enriched with a new version that makes the installation even faster and more precise: PROFREEL SLIM DISPLAY. Featuring a T-shaped section that covers any imperfections of the hole, it allows the application of thin blades of light in a simple and quick way.PROFREEL SLIM is available in two types: the DISPLAY version, ready for installation, and the DISPLAY FREE version, customizable directly on site.
Specifications
Optics
Body
Legal references
On request
Specifications
SMD LED technology on 24V adhesive strip
Strip LED: CRI>90
Colour temperature: 2700K/3000K/4000K
Possibility to cut strip and profile each 5cm
McAdams 3
Life Time: L80/B50 >50.000h
5 years complete warranty
Eye safety: RG0/RG1 in accordance with EN62471:2009
Optics
Satin methacrylate totally homogeneous extruded diffuser, UGR <22.
Body
Extruded anodized aluminum.
Legal references
In compliance with the safety standards EN 60 598-1 and UNI EN 12464-1 (lighting for working places).
On request
Wiring DALI dimmable – Code: D (verify the version available)
Wiring with emergency kit – Code: EM for 1 hour / EM3H for 3 hours
(verify the version available)
Wiring Bluetooth BT – Code: BT
versions available
Display
Free
versions available

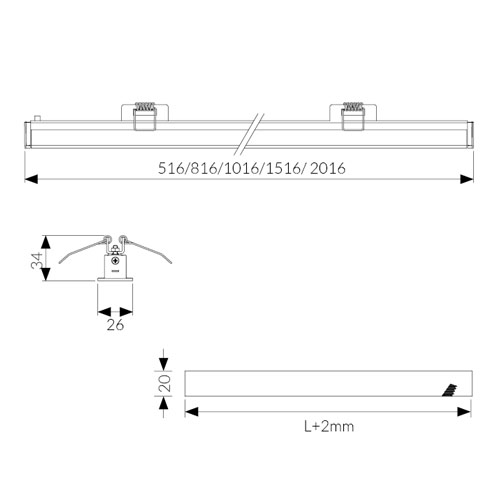

PROFREEL SLIM DISPLAY
technical data

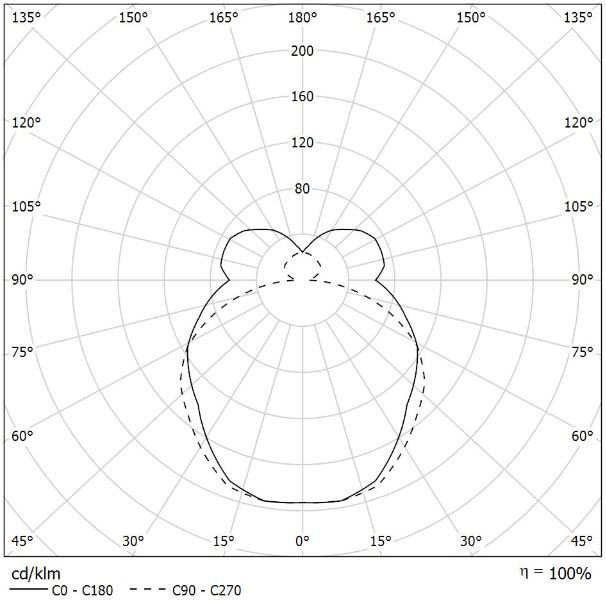

Optics
Optics
PMMA lens for diffused emission, UGR <22.
Datasheets 4000K
code
flux
size
wiring
datasheet
specification items
83PO5K4
5W 4000K
385lm
516mm
Standard
Dimmable
83PO9K4
9W 4000K
516lm
516mm
Standard
Dimmable
83PO11K4
11W 4000K
647lm
516mm
Standard
Dimmable
83PO8K4
8W 4000K
616lm
816mm
Standard
Dimmable
83PO12K4
12W 4000K
826lm
816mm
Standard
Dimmable
83PO16K4
16W 4000K
1036lm
816mm
Standard
Dimmable
83PO10K4
10W 4000K
770lm
1016mm
Standard
Dimmable
83PO17K4
17W 4000K
1033lm
1016mm
Standard
Dimmable
83PO21K4
21W 4000K
1295lm
1016mm
Standard
Dimmable
83PO15K4
15W 4000K
1155lm
1516mm
Standard
Dimmable
83PO23K4
23W 4000K
1549lm
1516mm
Standard
Dimmable
83PO31K4
31W 4000K
1942lm
1516mm
Standard
Dimmable
83PO20K4
20W 4000K
1540lm
2016mm
Standard
Dimmable
83PO30K4
30W 4000K
2065lm
2016mm
Standard
Dimmable
83PO40K4
40W 4000K
2590lm
2016mm
Standard
Dimmable
Datasheets 3000K
code
flux
size
wiring
datasheet
specification items
83PO5K3
5W 3000K
368lm
516mm
Standard
Dimmable
83PO9K3
9W 3000K
493lm
516mm
Standard
Dimmable
83PO11K3
11W 3000K
619lm
516mm
Standard
Dimmable
83PO8K3
8W 3000K
589lm
816mm
Standard
Dimmable
83PO12K3
12W 3000K
790lm
816mm
Standard
Dimmable
83PO16K3
16W 3000K
990lm
816mm
Standard
Dimmable
83PO10K3
10W 3000K
736lm
1016mm
Standard
Dimmable
83PO17K3
17W 3000K
987lm
1016mm
Standard
Dimmable
83PO21K3
21W 3000K
1238lm
1016mm
Standard
Dimmable
83PO15K3
15W 3000K
1104lm
1516mm
Standard
Dimmable
83PO23K3
23W 3000K
1480lm
1516mm
Standard
Dimmable
83PO31K3
31W 3000K
1857lm
1516mm
Standard
Dimmable
83PO20K3
20W 3000K
1472lm
2016mm
Standard
Dimmable
83PO30K3
30W 3000K
1974lm
2016mm
Standard
Dimmable
83PO40K3
40W 3000K
2476lm
2016mm
Standard
Dimmable

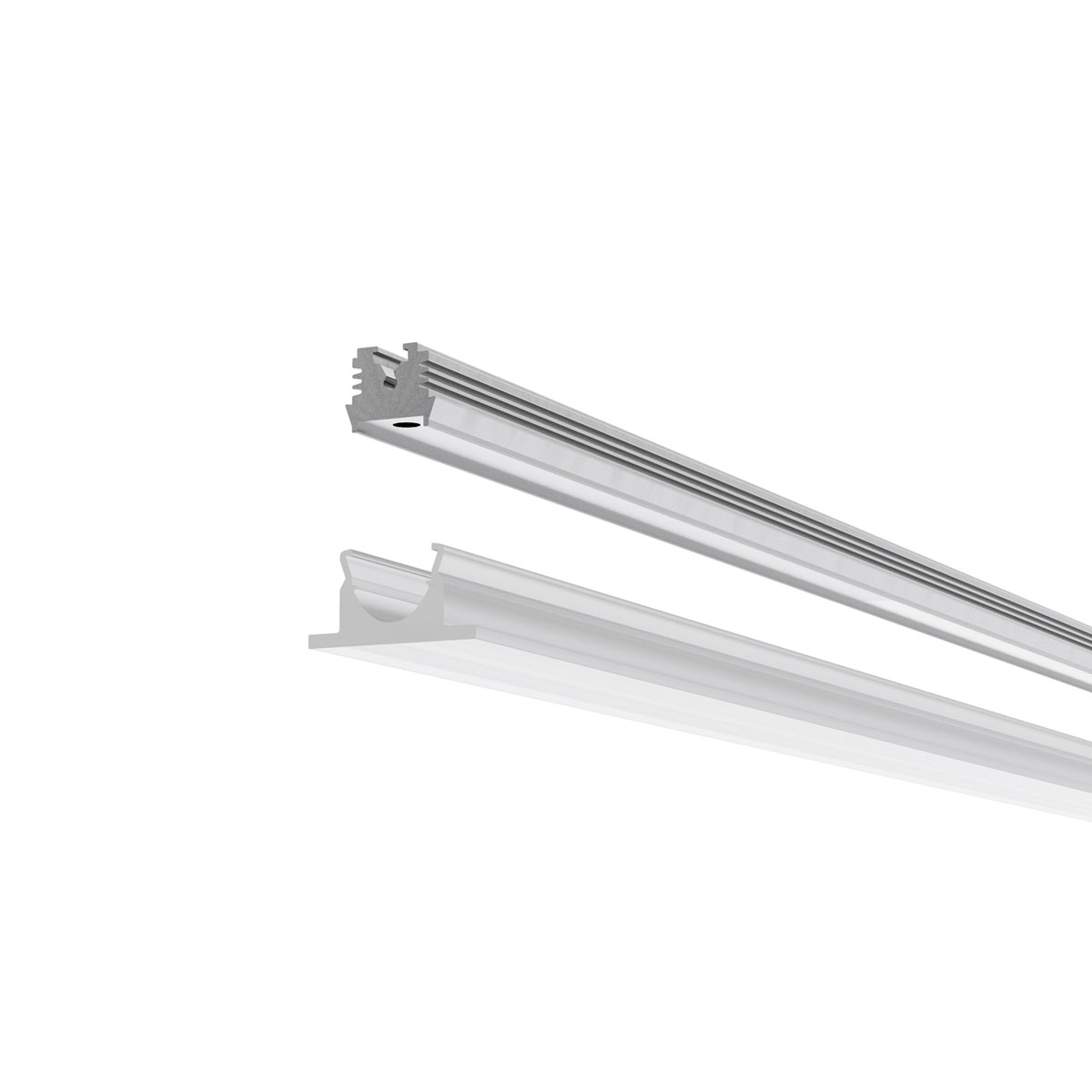

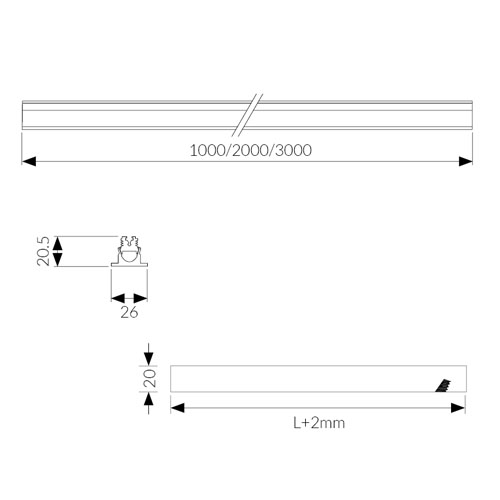

PROFREEL SLIM FREE
technical data
Description
Description
Aluminium profile for recessed applications, sectionable at will, complete with PG screen, closing heads and springs kit.
Datasheets
code
flux
size
wiring
datasheet
specification items
83PO1000
1000mm
No
83PO2000
2000mm
No
83PO3000
2700mm
No
PROFREEL SLIM FLEX STRIP
technical data
Description
Description
Adhesive strip led 24V CRI>90, length 5000 mm sectionable every 50mm.
Datasheets 4000K
code
flux
size
wiring
datasheet
specification items
83SL10K4
10W/mt 4000K
940lm/mt
5000mm
Standard
83SL15K4
15W/mt 4000K
1283lm/mt
5000mm
Standard
83SL20K4
20W/mt 4000K
1616lm/mt
5000mm
Standard
Datasheets 3000K
code
flux
size
wiring
datasheet
specification items
83SL10K3
10W/mt 3000K
813lm/mt
5000mm
Standard
83SL15K3
15W/mt 3000K
1155lm/mt
5000mm
Standard
83SL20K3
20W/mt 3000K
1598lm/mt
5000mm
Standard
Datasheets 2700K
code
flux
size
wiring
datasheet
specification items
83SL10L2790
10W/mt 2700K
760lm/mt
5000mm
Standard
83SL15L2790
15W/mt 2700K
1077lm/mt
5000mm
Standard
83SL20L2790
20W/mt 2700K
1578lm/mt
5000mm
Standard

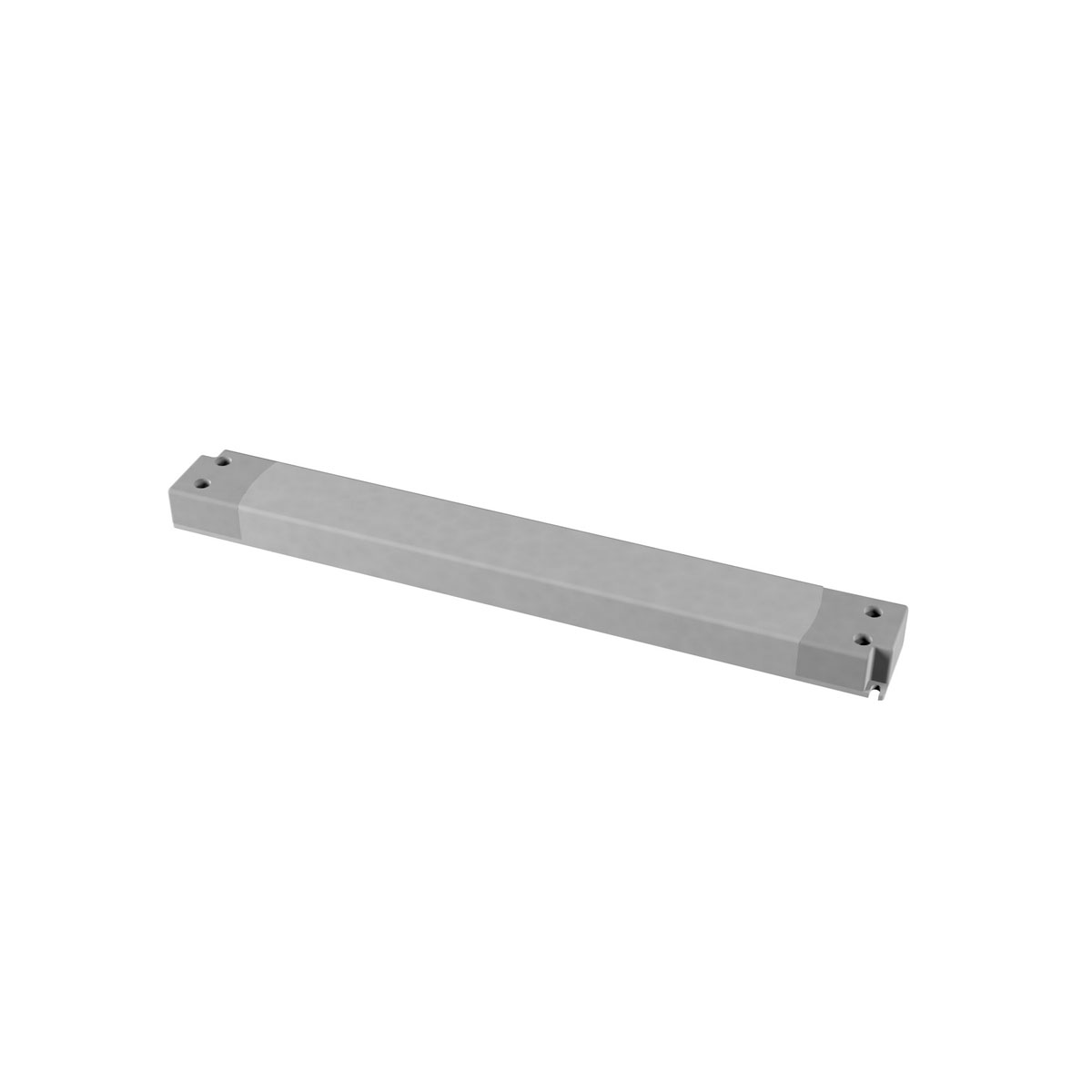

PROFREEL SLIM CONVERTER
technical data
Description
Description
The driver must be selected according to the power of the Strip LED that you want to use, and its length.
Datasheets
code
flux
size
wiring
datasheet
specification items
83LC2024IS
20W 24V
Standard
83LC3024IS
30W 24V
Standard
83LC6024IS
60W 24V
Standard
83LC10024IS
100W 24V
Standard
83LC3524ISBT
35W 24V
Bluetooth
83LC6024ISBT
60W 24V
Bluetooth
83LC10024ISBT
100W 24V
Bluetooth
83LC15024ISBT
150W 24V
Bluetooth
83LC7024ISD
70W 24V
Dimmable
83LC12024ISD
120W 24V
Dimmable
