Methacrylate satin diffuser for soft diffusion
with UGR<22
back to advanced search

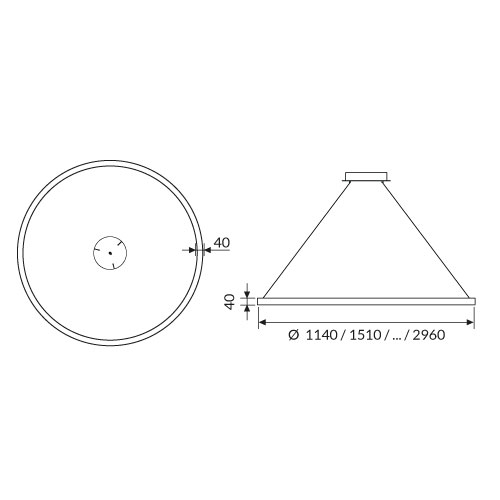

ONE RING
Decorative technical element with various diameters, direct or DI emission and the possibility of accent lighting. Sound absorbing versions.Specifications
Optics
Body
Legal references
On request
Specifications
Colour temperature: 3000K/4000K
CRI>90
McAdams 3
Life Time: L80/B10 >50.000h
5 years complete warranty
Eye safety: RG0/RG1 in accordance with EN62471:2009
Optics
-PG diffuser for soft diffusion with UGR<22
-Diffuser in DPL (Diamond Prism LED) technology with UGR<19
Body
Manufactured from extruded aluminum with epoxy powder coating.
Legal references
In compliance with the safety standards EN 60 598-1 and UNI EN 12464-1 (lighting for working places).
On request
Colour Temperature: 2700K
Wiring DALI dimmable – Code: D (verify the available version)
Wiring with emergency kit – Code: EM for 1 hour / EM3H for 3 hours (verify the available version)
versions available
PG optic - UGR <22
DPL optic - UGR< 19
versions available
ONE RING PG
technical data
Optics
Optics
Datasheets 4000K
code
flux
size
wiring
datasheet
specification items
17PG39K4
39W 4000K
4173lm
790mm
Standard
Dimmable
Emergency
17PG58K4
58W 4000K
6216lm
1140mm
Standard
Dimmable
Emergency
17PG77K4
77W 4000K
8288lm
1510mm
Standard
Dimmable
Emergency
17PG96K4
96W 4000K
10360lm
1860mm
Standard
Dimmable
Emergency
17PG115K4
115W 4000K
12432lm
2240mm
Standard
Dimmable
Emergency
17PG134K4
134W 4000K
14504lm
2592mm
Standard
Dimmable
Emergency
17PG154K4
154W 4000K
16576lm
2960mm
Standard
Dimmable
Emergency
Datasheets 3000K
code
flux
size
wiring
datasheet
specification items
17PG39K3
39W 3000K
3881lm
790mm
Standard
Dimmable
Emergency
17PG58K3
58W 3000K
5780lm
1140mm
Standard
Dimmable
Emergency
17PG77K3
77W 3000K
7708lm
1510mm
Standard
Dimmable
Emergency
17PG96K3
96W 3000K
9635lm
1860mm
Standard
Dimmable
Emergency
17PG115K3
115W 3000K
11562lm
2240mm
Standard
Dimmable
Emergency
17PG134K3
134W 3000K
13489lm
2592mm
Standard
Dimmable
Emergency
17PG154K3
154W 3000K
15416lm
2960mm
Standard
Dimmable
Emergency
ONE RING PG Double Emission
technical data
Optic
Optic
Methacrylate satin diffuser for soft diffusion with UGR<22
Datasheets 4000K
code
flux
size
wiring
datasheet
specification items
17DI63PGK4
63W 4000K
6057lm
790mm
Standard
Dimmable
Emergency
17DI93PGK4
93W 4000K
8966lm
1140mm
Standard
Dimmable
Emergency
17DI123PGK4
123W 4000K
11588lm
1510mm
Standard
Dimmable
Emergency
17DI153PGK4
153W 4000K
14760lm
1860mm
Standard
Dimmable
Emergency
17DI184PGK4
184W 4000K
17382lm
2240mm
Standard
Dimmable
Emergency
17DI215PGK4
215W 4000K
20554lm
2592mm
Standard
Dimmable
Emergency
17DI246PGK4
246W 4000K
23726lm
2960mm
Standard
Dimmable
Emergency
Datasheets 3000K
code
flux
size
wiring
datasheet
specification items
17DI63PGK3
63W 3000K
5578lm
790mm
Standard
Dimmable
Emergency
17DI93PGK3
93W 3000K
8255lm
1140mm
Standard
Dimmable
Emergency
17DI123PGK3
123W 3000K
10678lm
1510mm
Standard
Dimmable
Emergency
17DI153PGK3
153W 3000K
13595lm
1860mm
Standard
Dimmable
Emergency
17DI184PGK3
184W 3000K
16017lm
2240mm
Standard
Dimmable
Emergency
17DI215PGK3
215W 3000K
18934lm
2592mm
Standard
Dimmable
Emergency
17DI246PGK3
246W 3000K
21851lm
2960mm
Standard
Dimmable
Emergency
ONE RING DPL
technical data
Optic
Optic
Diffuser in DPL (Diamond Prism LED) technology with
UGR<19 for projects with display screen equipment.
UGR<19 for projects with display screen equipment.
Datasheets 4000K
code
flux
size
wiring
datasheet
specification items
17DPL39K4
39W 4000K
3950lm
790mm
Standard
Dimmable
Emergency
17DPL58K4
58W 4000K
5880lm
1140mm
Standard
Dimmable
Emergency
17DPL77K4
77W 4000K
7840lm
1510mm
Standard
Dimmable
Emergency
17DPL96K4
96W 4000K
9800lm
1860mm
Standard
Dimmable
Emergency
17DPL115K4
115W 4000K
11760lm
2240mm
Standard
Dimmable
Emergency
17DPL134K4
134W 4000K
13720lm
2592mm
Standard
Dimmable
Emergency
17DPL154K4
154W 4000K
15680lm
2960mm
Standard
Dimmable
Emergency
Datasheets 3000K
code
flux
size
wiring
datasheet
specification items
17DPL39K3
39W 3000K
3674lm
790mm
Standard
Dimmable
Emergency
17DPL58K3
58W 3000K
5468lm
1140mm
Standard
Dimmable
Emergency
17DPL77K3
77W 3000K
7291lm
1510mm
Standard
Dimmable
Emergency
17DPL96K3
96W 3000K
9114lm
1860mm
Standard
Dimmable
Emergency
17DPL115K3
115W 3000K
10937lm
2240mm
Standard
Dimmable
Emergency
17DPL134K3
134W 3000K
12760lm
2592mm
Standard
Dimmable
Emergency
17DPL154K3
154W 3000K
14582lm
2960mm
Standard
Dimmable
Emergency
ONE RING DPL Double emission
technical data
Optic
Optic
Diffuser in DPL (Diamond Prism LED) technology with
UGR<19 for projects with display screen equipment.
UGR<19 for projects with display screen equipment.
Datasheets 4000K
code
flux
size
wiring
datasheet
specification items
