JOOLS
JOOLS is a suspension lamp with an essential and compact shape but powerful in flow, with bidirectional emission for professional applications such as retail and hospitality. With a highly decorative character, it is ideal for desks and reception areas as accent light, without sacrificing indirect lighting for the whole environment.Specifications
Optics
Body
Legal references
On request
Specifications
Colour temperature: 3000K/4000K
CRI>90
McAdams 3
Life Time: L80/B10 >50.000h
5 years complete warranty
Eye safety: RG0/RG1 in accordance with EN62471:2009
Optics
Diffused satin PC for indirect emission.
Direct emission with PC lens. CUT-OFF>30°
Body
Spun aluminum body with epoxy powder coating.
Legal references
In compliance with the safety standards EN 60 598-1 and UNI EN 12464-1 (lighting for working places).
On request
Wiring DALI dimmable – Code: D (verify the available version)
Colour temperature 2700K – 5000K
versions available
until 27W
versions available
JOOLS
technical data
Optics
Optics
Datasheets 4000K
code
flux
size
wiring
datasheet
specification items
11DI19K414
19W 14° 4000K
1881lm
150mm
Standard
Dimmable
11DI19K435
19W 35° 4000K
1881lm
150mm
Standard
Dimmable
11DI19K455
19W 55° 4000K
1881lm
150mm
Standard
Dimmable
11DI22K414
22W 14° 4000K
2106lm
200mm
Standard
Dimmable
11DI22K435
22W 35° 4000K
2106lm
200mm
Standard
Dimmable
11DI22K455
22W 55° 4000K
2106lm
200mm
Standard
Dimmable
11DI27K414
27W 14° 4000K
2498lm
250mm
Standard
Dimmable
11DI27K435
27W 35° 4000K
2498lm
250mm
Standard
Dimmable
11DI27K455
27W 55° 4000K
2498lm
250mm
Standard
Dimmable
Datasheets 3000K
code
flux
size
wiring
datasheet
specification items
11DI19K314
19W 14° 3000K
1768lm
150mm
Standard
Dimmable
11DI19K335
19W 35° 3000K
1768lm
150mm
Standard
Dimmable
11DI19K355
19W 55° 3000K
1768lm
150mm
Standard
Dimmable
11DI22K314
22W 14° 3000K
1980lm
200mm
Standard
Dimmable
11DI22K335
22W 35° 3000K
1980lm
200mm
Standard
Dimmable
11DI22K355
22W 55° 3000K
1980lm
200mm
Standard
Dimmable
11DI27K314
27W 14° 3000K
2349lm
250mm
Standard
Dimmable
11DI27K335
27W 35° 3000K
2349lm
250mm
Standard
Dimmable
11DI27K355
27W 55° 3000K
2349lm
250mm
Standard
Dimmable

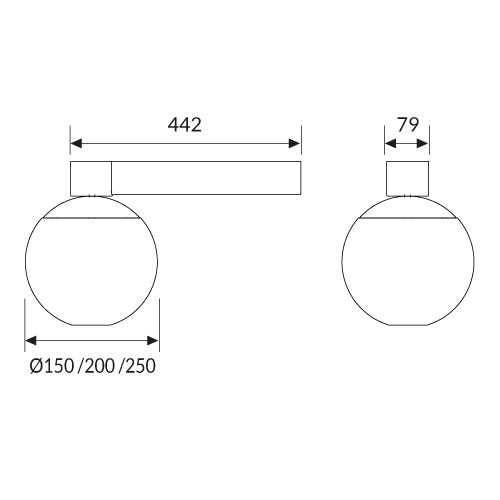

JOOLS CEILING
technical data
Optics
Optics
Diffused satin PC for indirect emission.
Direct emission with PC lens. CUT-OFF>30°
Direct emission with PC lens. CUT-OFF>30°
Datasheets 4000K
code
flux
size
wiring
datasheet
specification items
11DI19K414C
19W 14° 4000K
1881lm
150mm
Standard
Dimmable
11DI19K435C
19W 35° 4000K
1881lm
150mm
Standard
Dimmable
11DI19K455C
19W 55° 4000K
1881lm
150mm
Standard
Dimmable
11DI22K414C
22W 14° 4000K
2106lm
200mm
Standard
Dimmable
11DI22K435C
22W 35° 4000K
2106lm
200mm
Standard
Dimmable
11DI22K455C
22W 55° 4000K
2106lm
200mm
Standard
Dimmable
11DI27K414C
27W 14° 4000K
2498lm
250mm
Standard
Dimmable
11DI27K435C
27W 35° 4000K
2498lm
250mm
Standard
Dimmable
11DI27K455C
27W 55° 4000K
2498lm
250mm
Standard
Dimmable
Datasheets 3000K
code
flux
size
wiring
datasheet
specification items
11DI19K314C
19W 14° 3000K
1768lm
150mm
Standard
Dimmable
11DI19K335C
19W 35° 3000K
1768lm
150mm
Standard
Dimmable
11DI19K355C
19W 55° 3000K
1768lm
150mm
Standard
Dimmable
11DI22K314C
22W 14° 3000K
1980lm
200mm
Standard
Dimmable
11DI22K335C
22W 35° 3000K
1980lm
200mm
Standard
Dimmable
11DI22K355C
22W 55° 3000K
1980lm
200mm
Standard
Dimmable
11DI27K314C
27W 14° 3000K
2349lm
250mm
Standard
Dimmable
11DI27K335C
27W 35° 3000K
2349lm
250mm
Standard
Dimmable
11DI27K355C
27W 55° 3000K
2349lm
250mm
Standard
Dimmable
