Direct emission with CLD technology diffuser (collimated diffuser UGR<16).
ARKEON
Arkeon is the new profile developed by Esse-ci to be extremely flexible and performing. A linear design that integrates
perfectly in any context such as the office, the showroom, the retail or the hospitality. Available with both direct and
direct/indirect emission, it guarantees a seamless illumination, even for the indirect part. Different optics are available, such as the new CLD collimated optics and the High Contrast optics.
perfectly in any context such as the office, the showroom, the retail or the hospitality. Available with both direct and
direct/indirect emission, it guarantees a seamless illumination, even for the indirect part. Different optics are available, such as the new CLD collimated optics and the High Contrast optics.
Specifications
Optics
Body
Legal references
On request
Built-in Driver
Colour temperature: 3000K/4000K
CRI>90
McAdams 3
Life Time: L80/B10 >50.000h
5 years complete warranty
Eye safety: RG0/RG1 in accordance with EN62471:2009
· Direct / indirect emission with CLD technology
diffuser (UGR<16).
· PG frosted diffuser UGR<22.
· Polycarbonate asymmetric lens.
· High Contrast lens.
· Continuous indirect emission.
· SPOT modules with internal aluminum reflectors
15° – 20° – 36° – 50° beam angles.
Aluminum extruded body with epoxy powder coating.
In compliance with the safety standards EN 60 598-1 and UNI EN 12464-1 (lighting for working places).
Wiring DALI dimmable – Code: D (verify the version available)
Wiring with emergency kit – Code: EM for 1 hour / EM3H for 3 hours
(verify the version available)
Wiring Bluetooth BT Easy connect – Code: BE
Colour Temperature 2700K – 6500K
ETL Ready
Specifications
Built-in Driver
Colour temperature: 3000K/4000K
CRI>90
McAdams 3
Life Time: L80/B10 >50.000h
5 years complete warranty
Eye safety: RG0/RG1 in accordance with EN62471:2009
Optics
· Direct / indirect emission with CLD technology
diffuser (UGR<16).
· PG frosted diffuser UGR<22.
· Polycarbonate asymmetric lens.
· High Contrast lens.
· Continuous indirect emission.
· SPOT modules with internal aluminum reflectors
15° – 20° – 36° – 50° beam angles.
Body
Aluminum extruded body with epoxy powder coating.
Legal references
In compliance with the safety standards EN 60 598-1 and UNI EN 12464-1 (lighting for working places).
On request
Wiring DALI dimmable – Code: D (verify the version available)
Wiring with emergency kit – Code: EM for 1 hour / EM3H for 3 hours
(verify the version available)
Wiring Bluetooth BT Easy connect – Code: BE
Colour Temperature 2700K – 6500K
ETL Ready
ARKEON
versions
CLD optic - UGR<16
PG optic - UGR< 22
AS optic - asymmetric
DK optic - Microcells UGR<16
ARKEON HIGH EFFICIENCY CLD
ARKEON
ARKEON Download

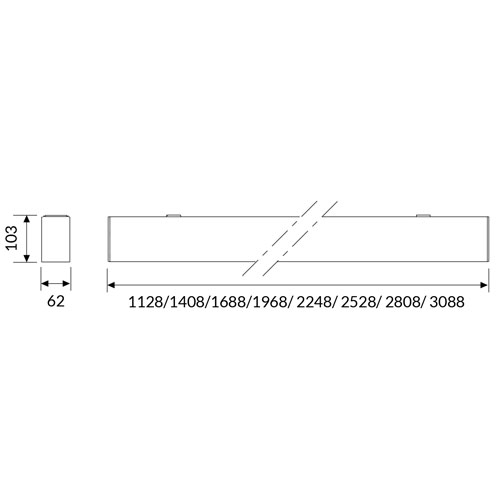

TECHNICAL DRAWING
Optics
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
46DR19CLDK4
19W 4000K
1917lm
1128mm
Standard
Dimmable
Emergency
46DR24CLDK4
24W 4000K
2422lm
1408mm
Standard
Dimmable
Emergency
46DR29CLDK4
29W 4000K
2927lm
1688mm
Standard
Dimmable
Emergency
46DR34CLDK4
34W 4000K
3431lm
1968mm
Standard
Dimmable
Emergency
46DR38CLDK4
38W 4000K
3835lm
2248mm
Standard
Dimmable
Emergency
46DR43CLDK4
43W 4000K
4339lm
2528mm
Standard
Dimmable
Emergency
46DR48CLDK4
48W 4000K
4844lm
2808mm
Standard
Dimmable
Emergency
46DR53CLDK4
53W 4000K
5349lm
3088mm
Standard
Dimmable
Emergency
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
46DR19CLDK3
19W 3000K
1844lm
1128mm
Standard
Dimmable
Emergency
46DR24CLDK3
24W 3000K
2329lm
1408mm
Standard
Dimmable
Emergency
46DR29CLDK3
29W 3000K
2814lm
1688mm
Standard
Dimmable
Emergency
46DR34CLDK3
34W 3000K
3299lm
1968mm
Standard
Dimmable
Emergency
46DR38CLDK3
38W 3000K
3687lm
2248mm
Standard
Dimmable
Emergency
46DR43CLDK3
43W 3000K
4172lm
2528mm
Standard
Dimmable
Emergency
46DR48CLDK3
48W 3000K
4658lm
2808mm
Standard
Dimmable
Emergency
46DR53CLDK3
53W 3000K
5143lm
3088mm
Standard
Dimmable
Emergency
ARKEON HIGH EFFICIENCY CLD DOUBLE EMISSION
ARKEON
ARKEON Download
TECHNICAL DRAWING
Optics

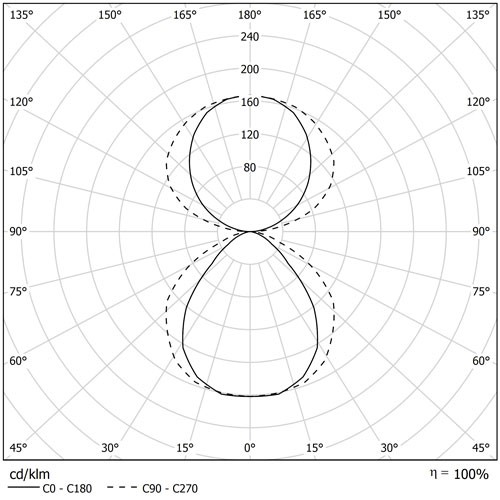

Direct / indirect emission with CLD technology diffuser (collimated diffuser UGR<16). Continuous indirect emission.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
46DI38CLDK4
38W 4000K
4761lm
1128mm
Standard
Dimmable
Emergency
46DI48CLDK4
48W 4000K
6014lm
1408mm
Standard
Dimmable
Emergency
46DI58CLDK4
58W 4000K
7267lm
1688mm
Standard
Dimmable
Emergency
46DI68CLDK4
68W 4000K
8520lm
1968mm
Standard
Dimmable
Emergency
46DI76CLDK4
76W 4000K
9522lm
2248mm
Standard
Dimmable
Emergency
46DI86CLDK4
86W 4000K
10775lm
2528mm
Standard
Dimmable
Emergency
46DI96CLDK4
96W 4000K
12028lm
2808mm
Standard
Dimmable
Emergency
46DI106CLDK4
106W 4000K
13281lm
3088mm
Standard
Dimmable
Emergency
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
46DI38CLDK3
38W 3000K
4578lm
1128mm
Standard
Dimmable
Emergency
46DI48CLDK3
48W 3000K
5782lm
1408mm
Standard
Dimmable
Emergency
46DI58CLDK3
58W 3000K
6987lm
1688mm
Standard
Dimmable
Emergency
46DI68CLDK3
68W 3000K
8192lm
1968mm
Standard
Dimmable
Emergency
46DI76CLDK3
76W 3000K
9156lm
2248mm
Standard
Dimmable
Emergency
46DI86CLDK3
86W 3000K
10360lm
2528mm
Standard
Dimmable
Emergency
46DI96CLDK3
96W 3000K
11565lm
2808mm
Standard
Dimmable
Emergency
46DI106CLDK3
106W 3000K
12770lm
3088mm
Standard
Dimmable
Emergency
ARKEON HIGH OUTPUT CLD
ARKEON
ARKEON Download
TECHNICAL DRAWING
Optics
Direct emission with CLD technology diffuser (collimated diffuser UGR<16)
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
46DR40CLDK4HO
40W 4000K
3699lm
1128mm
Standard
Dimmable
Emergency
46DR50CLDK4HO
50W 4000K
4624lm
1408mm
Standard
Dimmable
Emergency
46DR60CLDK4HO
60W 4000K
5549lm
1688mm
Standard
Dimmable
Emergency
46DR70CLDK4HO
70W 4000K
6474lm
1968mm
Standard
Dimmable
Emergency
46DR80CLDK4HO
80W 4000K
7398lm
2248mm
Standard
Dimmable
Emergency
46DR90CLDK4HO
90W 4000K
8323lm
2528mm
Standard
Dimmable
Emergency
46DR100CLDK4HO
100W 4000K
9248lm
2808mm
Standard
Dimmable
Emergency
46DR110CLDK4HO
110W 4000K
10173lm
3088mm
Standard
Dimmable
Emergency
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
46DR40CLDK3HO
40W 3000K
3529lm
1128mm
Standard
Dimmable
Emergency
46DR50CLDK3HO
50W 3000K
4411lm
1408mm
Standard
Dimmable
Emergency
46DR60CLDK3HO
60W 3000K
5294lm
1688mm
Standard
Dimmable
Emergency
46DR70CLDK3HO
70W 3000K
6176lm
1968mm
Standard
Dimmable
Emergency
46DR80CLDK3HO
80W 3000K
7058lm
2248mm
Standard
Dimmable
Emergency
46DR90CLDK3HO
90W 3000K
7940lm
2528mm
Standard
Dimmable
Emergency
46DR100CLDK3HO
100W 3000K
8823lm
2808mm
Standard
Dimmable
Emergency
46DR110CLDK3HO
110W 3000K
9705lm
3088mm
Standard
Dimmable
Emergency
ARKEON HIGH OUTPUT CLD DOUBLE EMISSION
ARKEON
ARKEON Download
TECHNICAL DRAWING
Optics
Direct / indirect emission with CLD technology diffuser (collimated diffuser UGR<16).
Continuous indirect emission.
