TWOS
Minimalism, efficiency, clean lines melt in a complete range of solutions. These are the characteristics of TWOS, the new Esse-Ci profile that reconsiders the classic and timeless lighting profile multiplying the creative possibilities. TWOS is available in four different versions – with microcells, diffusers, downlight or 48V integrated track – to meet any project needs, thanks to the creative junction, the accessory that allows the connection of 2 or more bodies at different angles. Moreover, selecting TWOS COMBO it’s possible to integrate the different lighting supports into a single body to create even more original, particular and refined visible effects.
Specifications
Optics
Body
Legal references
On request
Built-in Driver
Colour temperature: 3000K/4000K
CRI>90
McAdams 3
Life Time: L80/B10 >50.000h
5 years complete warranty
Eye safety: RG0/RG1 in accordance with EN62471:2009
· Direct / indirect emission with CLD technology diffuser (UGR<16).
· PG frosted diffuser UGR<22.
· Polycarbonate asymmetric lens.
· High Contrast lens.
· Continuous indirect emission.

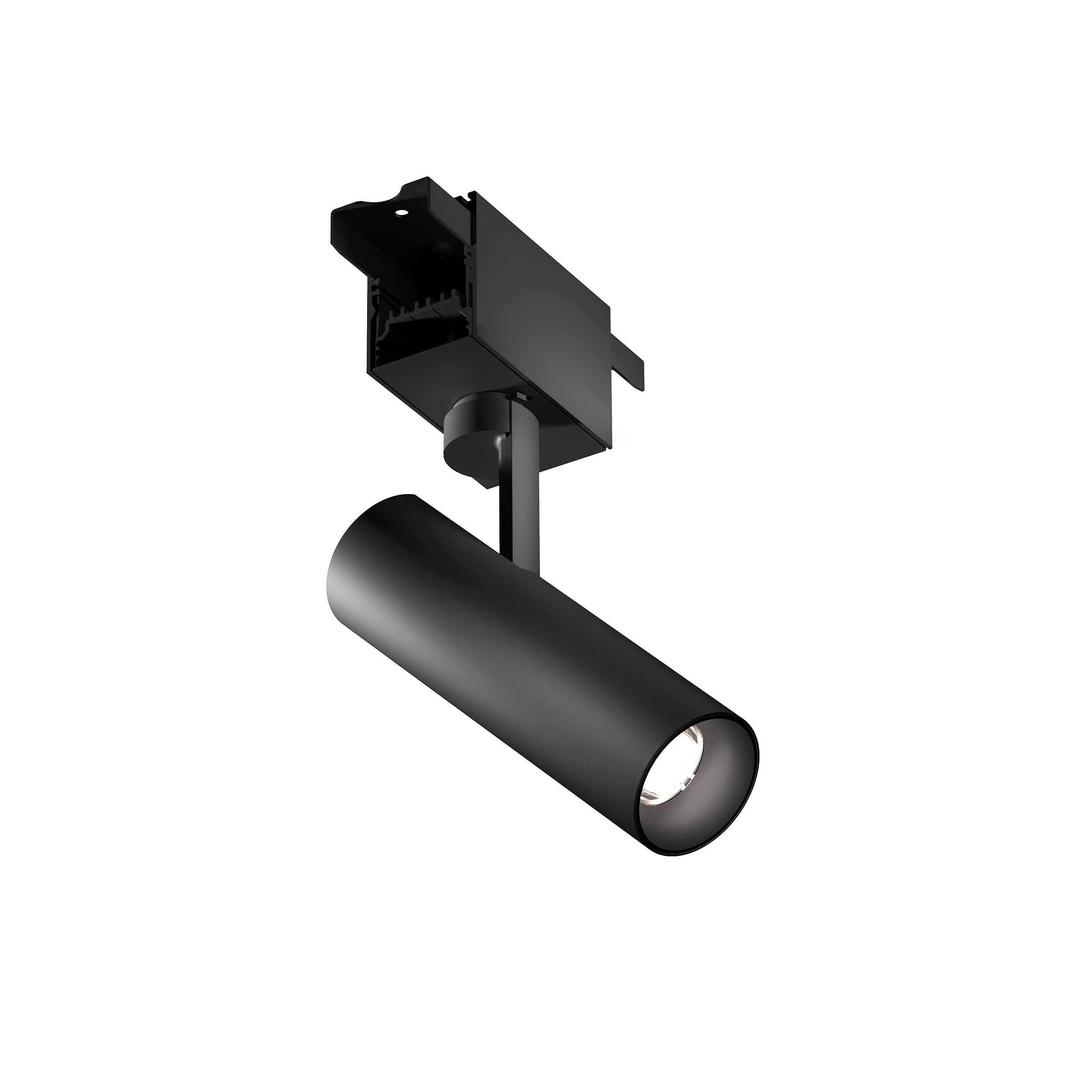

· SPOT modules with internal aluminum reflectors 15° – 20° – 36° – 50° beam angles.
Aluminum extruded body with epoxy powder coating.
In compliance with the safety standards EN 60 598-1 and UNI EN 12464-1 (lighting for working places).
Wiring DALI dimmable – Code: D (verify the version available)
Wiring with emergency kit – Code: EM for 1 hour / EM3H for 3 hours (verify the version available)
Wiring Bluetooth BT Easy connect – Code: BE
Colour Temperature 2700K – 6500K
ETL Ready
Specifications
Built-in Driver
Colour temperature: 3000K/4000K
CRI>90
McAdams 3
Life Time: L80/B10 >50.000h
5 years complete warranty
Eye safety: RG0/RG1 in accordance with EN62471:2009
Optics
· Direct / indirect emission with CLD technology diffuser (UGR<16).
· PG frosted diffuser UGR<22.
· Polycarbonate asymmetric lens.
· High Contrast lens.
· Continuous indirect emission.
· SPOT modules with internal aluminum reflectors 15° – 20° – 36° – 50° beam angles.
Body
Aluminum extruded body with epoxy powder coating.
Legal references
In compliance with the safety standards EN 60 598-1 and UNI EN 12464-1 (lighting for working places).
On request
Wiring DALI dimmable – Code: D (verify the version available)
Wiring with emergency kit – Code: EM for 1 hour / EM3H for 3 hours (verify the version available)
Wiring Bluetooth BT Easy connect – Code: BE
Colour Temperature 2700K – 6500K
ETL Ready
TWOS
versionen
CLD
PG
DOWNLIGHT

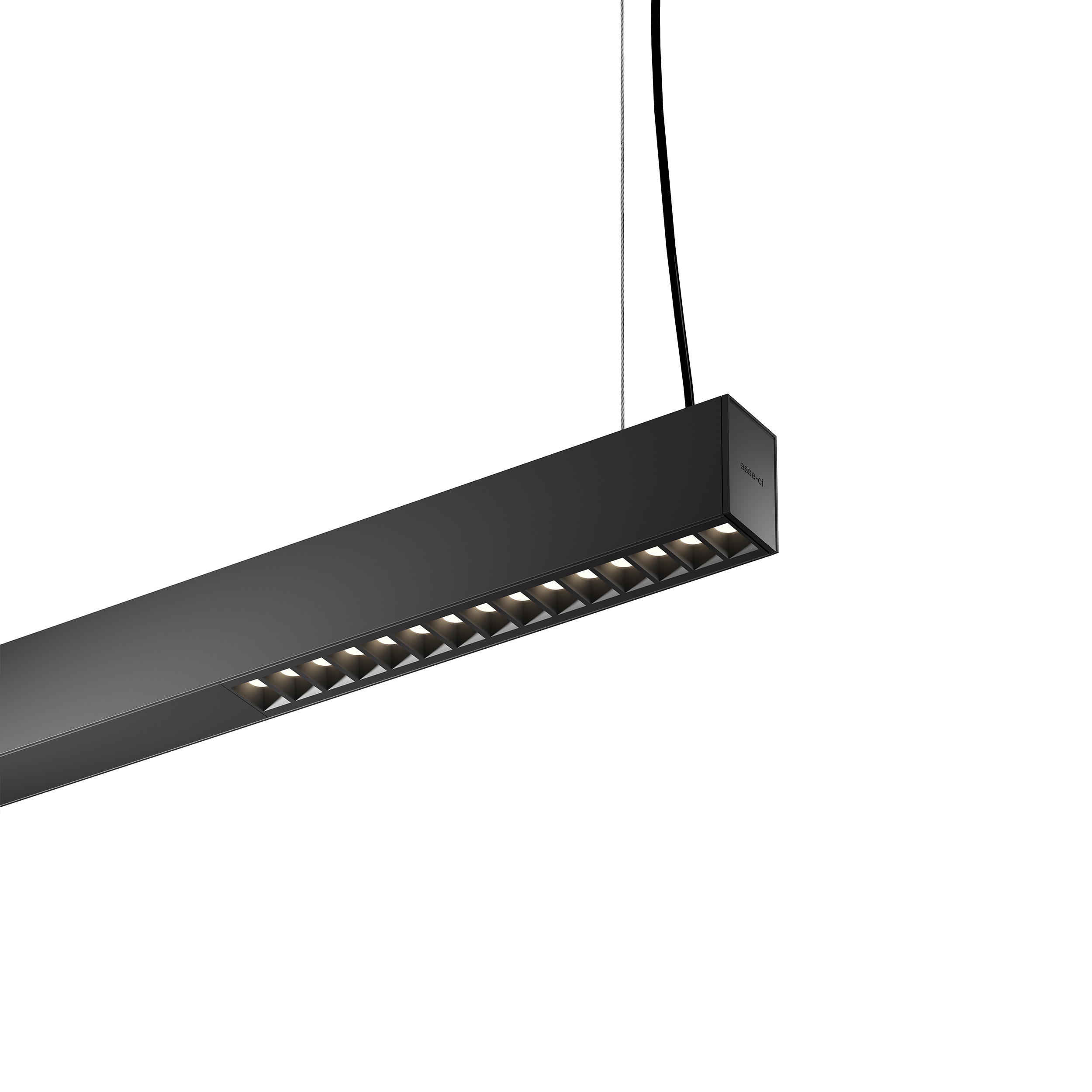

TWOS DK
TWOS
TECHNICAL DRAWING
Optics
Micro cell optic for UGR<16.
Technisches Datenblatt
4000K
code
Lichtstrom
Abmessungen
Verkablung
datasheet
Spezifikationsposition
54DK24K4
24W 60° 4000K
2790lm
1121mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DK30K4
30W 60° 4000K
3486lm
1401mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DK36K4
36W 60° 4000K
4182lm
1681mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DK42K4
42W 60° 4000K
4878lm
1961mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DK48K4
48W 60° 4000K
5573lm
2241mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DK60K4
60W 60° 4000K
6965lm
2801mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
Technisches Datenblatt
3000K
code
Lichtstrom
Abmessungen
Verkablung
datasheet
Spezifikationsposition
54DK24K3
24W 60° 3000K
2654lm
1121mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DK30K3
30W 60° 3000K
3316lm
1401mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DK36K3
36W 60° 3000K
3978lm
1681mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DK42K3
42W 60° 3000K
4641lm
1961mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DK48K3
48W 60° 3000K
5304lm
2241mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DK60K3
60W 60° 3000K
6628lm
2801mm

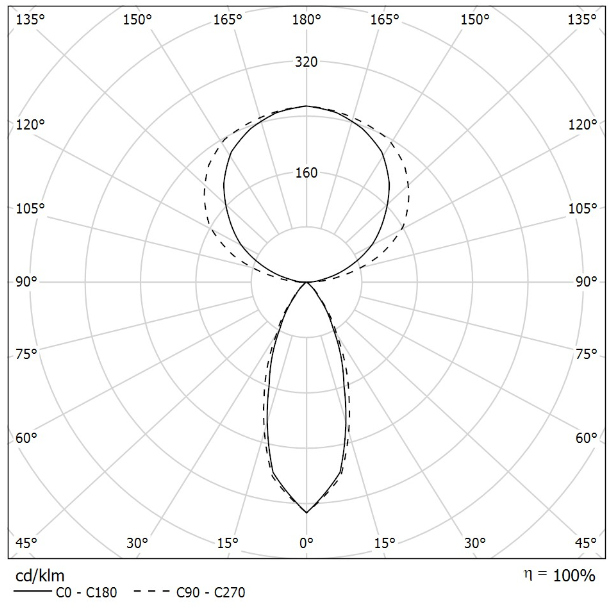

TWOS DK DOUBLE EMISSION
TWOS
TECHNICAL DRAWING
Optics
Micro cell optic for UGR<16.
Indirect emission with PMMA frosted diffuser.
Technisches Datenblatt
4000K
code
Lichtstrom
Abmessungen
Verkablung
datasheet
Spezifikationsposition
54DI36DKK4
24+12W 60° 4000K
4460lm
1121mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI46DKK4
30+16W 60° 4000K
5472lm
1401mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI56DKK4
36+20W 60° 4000K
6665lm
1681mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI66DKK4
42+24W 60° 4000K
7858lm
1961mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI76DKK4
48+28W 60° 4000K
9049lm
2241mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI96DKK4
60+36W 60° 4000K
11435lm
2801mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
Technisches Datenblatt
3000K
code
Lichtstrom
Abmessungen
Verkablung
datasheet
Spezifikationsposition
54DI36DKK3
24+12W 60° 3000K
4059lm
1121mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI46DKK3
30+16W 60° 3000K
5189lm
1401mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI56DKK3
36+20W 60° 3000K
6319lm
1681mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI66DKK3
42+24W 60° 3000K
7451lm
1961mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI76DKK3
48+28W 60° 3000K
8582lm
2241mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI96DKK3
60+36W 60° 3000K
10843lm
2801mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
TWOS DOWNLIGHT DOUBLE EMISSION
TWOS
TECHNICAL DRAWING
Optics
Downlight modules with PC lens 50°
Indirect emission with PMMA frosted diffuser
Technisches Datenblatt
4000K
code
Lichtstrom
Abmessungen
Verkablung
datasheet
Spezifikationsposition
54DI5X6I12K4
5x6W 50°+12W 4000K
3720lm
1121mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI7X6I16K4
7x6W 50°+16W 4000K
4920lm
1401mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
Technisches Datenblatt
3000K
code
Lichtstrom
Abmessungen
Verkablung
datasheet
Spezifikationsposition
54DI5X6I12K3
5x6W 50°+12W 3000K
3544lm
1121mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI7X6I16K3
7x6W 50°+16W 3000K
4680lm
1401mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
TWOS COMBO DK double emission + SPOT
TWOS
TECHNICAL DRAWING
Optics
Micro cell optik for UGR<16 and additional spot lights. Indirect emission with PMMA frosted diffuser
Technisches Datenblatt
4000K
code
Lichtstrom
Abmessungen
Verkablung
datasheet
Spezifikationsposition
54DI36DKS2X3K4
24+12W 60°+2x3W zoom 4000K
4460 +524lm
1241mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI46DKS2X3K4
30+16W 60°+2x3W zoom 4000K
5472 +524lm
1521mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
Technisches Datenblatt
3000K
code
Lichtstrom
Abmessungen
Verkablung
datasheet
Spezifikationsposition
54DI36DKS2X3K3
24+12W 60°+2x3W zoom 3000K
4059 +476lm
1241mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI46DKS6K3
30+16W 60°+2x3W zoom 3000K
5189 +476lm
1521mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
TWOS COMBO PG double emission + SPOT
TWOS
TECHNICAL DRAWING
Optics
PMMA frosted diffuser UGR<22 and additional spot lights. Indirect emission with PMMA frosted diffuser
Technisches Datenblatt
4000K
code
Lichtstrom
Abmessungen
Verkablung
datasheet
Spezifikationsposition
54DI32PGS6K4
28W+8W 60°+2x3W zoom 4000K
3264 + 524lm
1248mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI46PGS6K4
35W+8W 60°+2x3W zoom 4000K
3876 + 524lm
1528mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
Technisches Datenblatt
3000K
code
Lichtstrom
Abmessungen
Verkablung
datasheet
Spezifikationsposition
54DI32PGS6K3
28W+8W 60°+2x3W zoom 3000K
3104 + 524lm
1248mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI46PGS6K3
35W+8W 60°+2x3W zoom 3000K
3686 + 524lm
1528mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
TWOS COMBO PG double emission + DOWNLIGHTS
TWOS
TECHNICAL DRAWING
Optics
PMMA frosted diffuser UGR<22 and additional down lights. Indirect emission with PMMA frosted diffuser
Technisches Datenblatt
4000K
code
Lichtstrom
Abmessungen
Verkablung
datasheet
Spezifikationsposition
54DI32PGF12K4
28W+8W 60°+2x6W 50° 4000K
3264 + 1200lm
1248mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI46PGF12K4
35W+8W 60°+2x6W 50° 4000K
3876 + 1200lm
1528mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
Technisches Datenblatt
3000K
code
Lichtstrom
Abmessungen
Verkablung
datasheet
Spezifikationsposition
54DI32PGF12K3
28W+8W 60°+2x6W 50° 3000K
3104 + 1136lm
1248mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI46PGF12K3
35W+8W 60°+2x6W 50° 3000K
3686 + 1136lm
1528mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
TWOS CLD High Power
TWOS
TECHNICAL DRAWING
Optics
PMMA transparent diffuser with CLD film for UGR<19.
Technisches Datenblatt
4000K
code
Lichtstrom
Abmessungen
Verkablung
datasheet
Spezifikationsposition
54CLD48K4HP
48W 4000K
5418lm
1121mm
Standard
Dimmbar
Notbeleuchtung
54CLD60K4HP
60W 4000K
6722lm
1401mm
Standard
Dimmbar
Notbeleuchtung
54CLD72K4HP
72W 4000K
8127lm
1681mm
Standard
Dimmbar
Notbeleuchtung
54CLD84K4HP
84W 4000K
9480lm
1961mm
Standard
Dimmbar
Notbeleuchtung
54CLD96K4HP
96W 4000K
10831lm
2241mm
Standard
Dimmbar
Notbeleuchtung
54CLD120K4HP
120W 4000K
13538lm
2801mm
Standard
Dimmbar
Notbeleuchtung
Technisches Datenblatt
3000K
code
Lichtstrom
Abmessungen
Verkablung
datasheet
Spezifikationsposition
54CLD48K3HP
48W 3000K
5255lm
1121mm
Standard
Dimmbar
Notbeleuchtung
54CLD60K3HP
60W 3000K
6520lm
1401mm
Standard
Dimmbar
Notbeleuchtung
54CLD72K3HP
72W 3000K
7883lm
1681mm
Standard
Dimmbar
Notbeleuchtung
54CLD84K3HP
84W 3000K
9195lm
1961mm
Standard
Dimmbar
Notbeleuchtung
54CLD96K3HP
96W 3000K
10505lm
2241mm
Standard
Dimmbar
Notbeleuchtung
54CLD120K3HP
120W 3000K
13128lm
2801mm
Standard
Dimmbar
Notbeleuchtung
TWOS CLD Low Power
TWOS
TECHNICAL DRAWING
Optics
PMMA transparent diffuser with CLD film for UGR<19.
Technisches Datenblatt
4000K
code
Lichtstrom
Abmessungen
Verkablung
datasheet
Spezifikationsposition
54CLD24K4
24W 4000K
2966lm
1121mm
Standard
Dimmbar
Notbeleuchtung
54CLD30K4
30W 4000K
3707lm
1401mm
Standard
Dimmbar
Notbeleuchtung
54CLD36K4
36W 4000K
4448lm
1681mm
Standard
Dimmbar
Notbeleuchtung
54CLD42K4
42W 4000K
5188lm
1961mm
Standard
Dimmbar
Notbeleuchtung
54CLD48K4
48W 4000K
5928lm
2241mm
Standard
Dimmbar
Notbeleuchtung
54CLD60K4
60W 4000K
7405lm
2801mm
Standard
Dimmbar
Notbeleuchtung
Technisches Datenblatt
3000K
code
Lichtstrom
Abmessungen
Verkablung
datasheet
Spezifikationsposition
54CLD24K3
24W 3000K
2877lm
1121mm
Standard
Dimmbar
Notbeleuchtung
54CLD30K3
30W 3000K
3595lm
1401mm
Standard
Dimmbar
Notbeleuchtung
54CLD36K3
36W 3000K
4314lm
1681mm
Standard
Dimmbar
Notbeleuchtung
54CLD42K3
42W 3000K
5032lm
1961mm
Standard
Dimmbar
Notbeleuchtung
54CLD48K3
48W 3000K
5749lm
2241mm
Standard
Dimmbar
Notbeleuchtung
54CLD60K3
60W 3000K
7182lm
2801mm
Standard
Dimmbar
Notbeleuchtung
TWOS CLD DOUBLE EMISSION Low Power
TWOS
TECHNICAL DRAWING
Optics
PMMA transparent diffuser with CLD film for UGR<19.
Indirect emission with PMMA frosted diffuser.
Technisches Datenblatt
4000K
code
Lichtstrom
Abmessungen
Verkablung
datasheet
Spezifikationsposition
54DI36CLDK4
24+12W 4000K
4451lm
1121mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI46CLDK4
30+16W 4000K
5687lm
1401mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI56CLDK4
36+20W 4000K
6923lm
1681mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI66CLDK4
42+24W 4000K
8160lm
1961mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI76CLDK4
48+28W 4000K
9396lm
2241
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI96CLDK4
60+36W 4000K
11869lm
2801mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
Technisches Datenblatt
3000K
code
Lichtstrom
Abmessungen
Verkablung
datasheet
Spezifikationsposition
54DI36CLDK3
24+12W 3000K
4277lm
1121mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI46CLDK3
30+16W 3000K
5465lm
1401mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI56CLDK3
36+20W 3000K
6653lm
1681mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI66CLDK3
42+24W 3000K
7840lm
1961mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI76CLDK3
48+28W 3000K
9029lm
2241
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI96CLDK3
60+36W 3000K
11405lm
2801mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
TWOS CLD DOUBLE EMISSION High Power
TWOS
TECHNICAL DRAWING
Optics
PMMA transparent diffuser with CLD film for UGR<19.
Indirect emission with PMMA frosted diffuser.
Technisches Datenblatt
4000K
code
Lichtstrom
Abmessungen
Verkablung
datasheet
Spezifikationsposition
54DI60CLDK4HP
48+12W 4000K
6897lm
1121mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI76CLDK4HP
60+16W 4000K
8736lm
1401mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI92CLDK4HP
72+20W 4000K
10575lm
1681mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI108CLDK4HP
84+24W 4000K
12414lm
1961mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI124CLDK4HP
96+28W 4000K
14253lm
2241mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI156CLDK4HP
120+36W 4000K
17932lm
2801mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
Technisches Datenblatt
3000K
code
Lichtstrom
Abmessungen
Verkablung
datasheet
Spezifikationsposition
54DI60CLDK3HP
48+12W 3000K
6648lm
1121mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI76CLDK3HP
60+16W 3000K
8420lm
1401mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI92CLDK3HP
72+20W 3000K
10193lm
1681mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI108CLDK3HP
84+24W 3000K
11966lm
1961mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI124CLDK3HP
96+28W 3000K
13739lm
2241mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI156CLDK3HP
120+36W 3000K
17284lm
2801mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
TWOS PG Low Power
TWOS
TECHNICAL DRAWING
Optics
PMMA frosted diffuser UGR<22.
Technisches Datenblatt
4000K
code
Lichtstrom
Abmessungen
Verkablung
datasheet
Spezifikationsposition
54PG24K4
24W 4000K
2912lm
1121mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54PG30K4
30W 4000K
3640lm
1401mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54PG36K4
36W 4000K
4367lm
1681mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54PG42K4
42W 4000K
5095lm
1961mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54PG48K4
48W 4000K
5819lm
2241mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54PG60K4
60W 4000K
7273lm
2801mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
Technisches Datenblatt
3000K
code
Lichtstrom
Abmessungen
Verkablung
datasheet
Spezifikationsposition
54PG24K3
24W 3000K
2824lm
1121mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54PG30K3
30W 3000K
3530lm
1401mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54PG36K3
36W 3000K
4235lm
1681mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54PG42K3
42W 3000K
4940lm
1961mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54PG48K3
48W 3000K
5647lm
2241mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54PG60K3
60W 3000K
7059lm
2801mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
TWOS PG DOUBLE EMISSION Low Power
TWOS
TECHNICAL DRAWING
Optics
PMMA frosted diffuser UGR<22.
Indirect emission with PMMA frosted diffuser.
Technisches Datenblatt
4000K
code
Lichtstrom
Abmessungen
Verkablung
datasheet
Spezifikationsposition
54DI36PGK4
24+12W 4000K
4398lm
1121mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI46PGK4
30+16W 4000K
5619lm
1401mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI56PGK4
36+20W 4000K
6840lm
1681mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI66PGK4
42+24W 4000K
8062lm
1961mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI76PGK4
48+28W 4000K
9284lm
2241mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI96PGK4
60+36W 4000K
11727lm
2801mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
Technisches Datenblatt
3000K
code
Lichtstrom
Abmessungen
Verkablung
datasheet
Spezifikationsposition
54DI36PGK3
24+12W 3000K
4225lm
1121mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI46PGK3
30+16W 3000K
5398lm
1401mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI56PGK3
36+20W 3000K
6527lm
1681mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI66PGK3
42+24W 3000K
7745lm
1961mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI76PGK3
48+28W 3000K
8919lm
2241mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54DI96PGK3
60+36W 3000K
11266lm
2801mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
TWOS PG High Power
TWOS
TECHNICAL DRAWING
Optics
PMMA frosted diffuser UGR<22.
Technisches Datenblatt
4000K
code
Lichtstrom
Abmessungen
Verkablung
datasheet
Spezifikationsposition
54PG48K4HP
48W 4000K
5379lm
1121mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54PG60K4HP
60W 4000K
6723lm
1401mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54PG72K4HP
72W 4000K
8068lm
1681mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54PG84K4HP
84W 4000K
9413lm
1961mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54PG96K4HP
96W 4000K
10757lm
2241mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54PG120K4HP
120W 4000K
13447lm
2801mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
Technisches Datenblatt
3000K
code
Lichtstrom
Abmessungen
Verkablung
datasheet
Spezifikationsposition
54PG48K3HP
48W 3000K
5217lm
1121mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54PG60K3HP
60W 3000K
6521lm
1401mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54PG72K3HP
72W 3000K
7824lm
1681mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54PG84K3HP
84W 3000K
9129lm
1961mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54PG96K3HP
96W 3000K
10433lm
2241mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54PG120K3HP
120W 3000K
13041lm
2801mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
TWOS PG DOUBLE EMISSION High Power
TWOS
TECHNICAL DRAWING
Optics
PMMA frosted diffuser UGR<22.
Indirect emission with PMMA frosted diffuser.
Technisches Datenblatt
4000K
code
Lichtstrom
Abmessungen
Verkablung
datasheet
Spezifikationsposition
54DI60PGK4HP
48+12W 4000K
6786lm
1121mm
Standard
Dimmbar
Notbeleuchtung
54DI76PGK4HP
60+16W 4000K
8595lm
1401mm
Standard
Dimmbar
Notbeleuchtung
54DI92PGK4HP
72+20W 4000K
10405lm
1681mm
Standard
Dimmbar
Notbeleuchtung
54DI108PGK4HP
84+24W 4000K
12214lm
1961mm
Standard
Dimmbar
Notbeleuchtung
54DI124PGK4HP
96+28W 4000K
14024lm
2241mm
Standard
Dimmbar
Notbeleuchtung
54DI156PGK4HP
120+36W 4000K
17643lm
2801mm
Standard
Dimmbar
Notbeleuchtung
Technisches Datenblatt
3000K
code
Lichtstrom
Abmessungen
Verkablung
datasheet
Spezifikationsposition
54DI60PGK3HP
48+12W 3000K
6538lm
1121mm
Standard
Dimmbar
Notbeleuchtung
54DI76PGK3HP
60+16W 3000K
8281lm
1401mm
Standard
Dimmbar
Notbeleuchtung
54DI92PGK3HP
72+20W 3000K
10024lm
1681mm
Standard
Dimmbar
Notbeleuchtung
54DI108PGK3HP
84+24W 3000K
11767lm
1961mm
Standard
Dimmbar
Notbeleuchtung
54DI124PGK3HP
96+28W 3000K
13511lm
2241mm
Standard
Dimmbar
Notbeleuchtung
54DI156PGK3HP
120+36W 3000K
16997lm
2801mm
Standard
Dimmbar
Notbeleuchtung
TWOS PC 60°
TWOS
TECHNICAL DRAWING

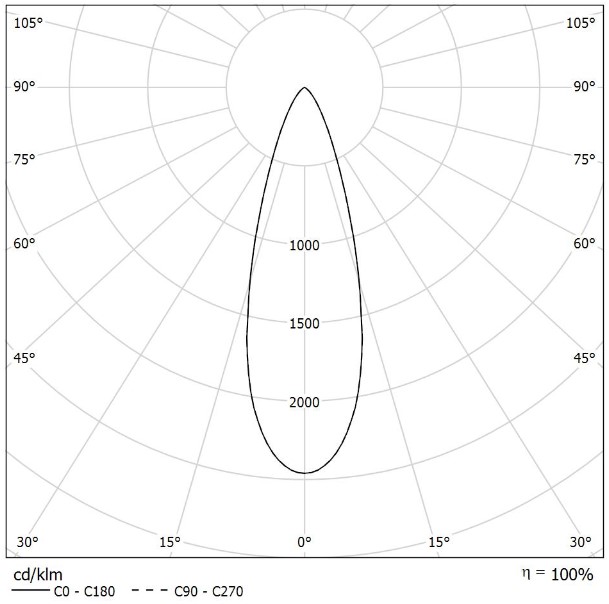

Optics
PMMA lens 60° low glare.
Technisches Datenblatt
4000K
code
Lichtstrom
Abmessungen
Verkablung
datasheet
Spezifikationsposition
54PC44K460
44W 4000K
7060lm
1128mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54PC66K460
66W 4000K
10560lm
1688mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54PC88K460
88W 4000K
14080lm
2248mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54PC110K460
110W 4000K
17600lm
2808mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
Technisches Datenblatt
3000K
code
Lichtstrom
Abmessungen
Verkablung
datasheet
Spezifikationsposition
54PC44K360
44W 3000K
6600lm
1128mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54PC66K360
66W 3000K
9900lm
1688mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54PC88K360
88W 3000K
13200lm
2248mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
54PC110K360
110W 3000K
16500lm
2808mm
Standard
Dimmbar
Notbeleuchtung
Bluetooth
TWOS PC ASYMMETRIC
TWOS
TECHNICAL DRAWING
Optics
PMMA lens single asymmetric Wall Washer.
Technisches Datenblatt
4000K
code
Lichtstrom
Abmessungen
Verkablung
datasheet
Spezifikationsposition
54AS44K4
44W 4000K
7060lm
1128mm
Standard
Dimmbar
Notbeleuchtung
54AS66K4
66W 4000K
10560lm
1688mm
Standard
Dimmbar
Notbeleuchtung
54AS88K4
88W 4000K
14080lm
2248mm
Standard
Dimmbar
Notbeleuchtung
54AS110K4
110W 4000K
17600lm
2808mm
Standard
Dimmbar
Notbeleuchtung
Technisches Datenblatt
3000K
code
Lichtstrom
Abmessungen
Verkablung
datasheet
Spezifikationsposition
54AS44K3
44W 3000K
6600lm
1128mm
Standard
Dimmbar
Notbeleuchtung
54AS66K3
66W 3000K
9900lm
1688mm
Standard
Dimmbar
Notbeleuchtung
54AS88K3
88W 3000K
13200lm
2248mm
Standard
Dimmbar
Notbeleuchtung
54AS110K3
110W 3000K
16500lm
2808mm
Standard
Dimmbar
Notbeleuchtung
TWOS PC 110°
TWOS
TECHNICAL DRAWING
Optics
PMMA lens 110° extra wide.
Technisches Datenblatt
4000K
code
Lichtstrom
Abmessungen
Verkablung
datasheet
Spezifikationsposition
54PC44K4110
44W 4000K
7060lm
1128mm
Standard
Dimmbar
Notbeleuchtung
54PC66K4110
66W 4000K
10560lm
1688mm
Standard
Dimmbar
Notbeleuchtung
54PC88K4110
88W 4000K
14080lm
2248mm
Standard
Dimmbar
Notbeleuchtung
54PC110K4110
110W 4000K
17600lm
2808mm
Standard
Dimmbar
Notbeleuchtung
Technisches Datenblatt
3000K
code
Lichtstrom
Abmessungen
Verkablung
datasheet
Spezifikationsposition
54PC44K3110
44W 3000K
6600lm
1128mm
Standard
Dimmbar
Notbeleuchtung
54PC66K3110
66W 3000K
9900lm
1688mm
Standard
Dimmbar
Notbeleuchtung
54PC88K3110
88W 3000K
13200lm
2248mm
Standard
Dimmbar
Notbeleuchtung
54PC110K3110
110W 3000K
16500lm
2808mm
Standard
Dimmbar
Notbeleuchtung
TWOS LOW VOLTAGE TRACK MODULE WITH INDIRECT LIGHT
TWOS
TECHNICAL DRAWING
Optics
Element with buil-in low voltage 48V track with transformer.
Indirect emission with PMMA frosted diffuser.
Technisches Datenblatt
4000K
code
Lichtstrom
Abmessungen
Verkablung
datasheet
Spezifikationsposition
54DI1I12LVK4
12W 4000K
720lm
1001mm
Standard
Dimmbar
Notbeleuchtung
54DI2I24LVK4
24W 4000K
1440lm
2001mm
Standard
Dimmbar
Notbeleuchtung
Technisches Datenblatt
3000K
code
Lichtstrom
Abmessungen
Verkablung
datasheet
Spezifikationsposition
54DI1I12LVK3
12W 3000K
704lm
1001mm
Standard
Dimmbar
Notbeleuchtung
54DI2I24LVK3
24W 3000K
1408lm
2001mm
Standard
Dimmbar
Notbeleuchtung
